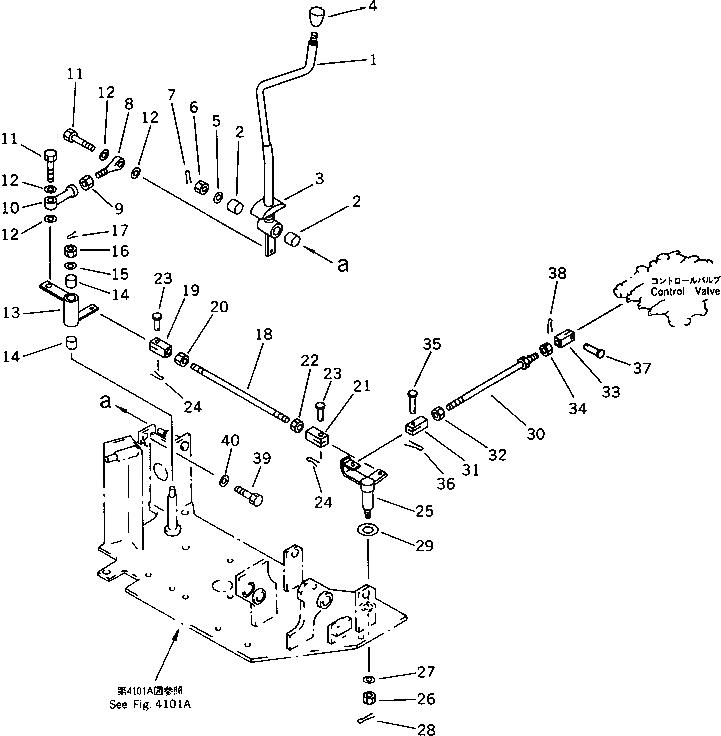

Запчасти Komatsu PC50UU-1 РЫЧАГ УПРАВЛЕНИЯ ОТВАЛОМ И МЕХАНИЗМ(№-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20U-43-11331

LEVER

2

195-61-34130

BEARING

3

20S-43-11230

COVER

4

20D-43-11370

KNOB

5

01643-31445

WASHER

6

01592-11215

NUT

7

04050-13022

PIN,COTTER

8

04252-21061

END,ROD

9

01582-11008

NUT

10

04250-41056

END,ROD

11

01010-51035

BOLT

12

01643-31032

WASHER

13

20U-43-14671

LEVER

14

195-61-34130

BEARING

15

01643-31445

WASHER

16

01592-11215

NUT

17

04050-13022

PIN,COTTER

18

04248-31046

ROD

19

20T-43-22210

YOKE

20

01582-11008

NUT

21

20S-43-12150

YOKE,L.H. THREAD

22

01508-41006

NUT,L.H. THREAD

23

20T-43-48610

PIN

24

04050-12012

PIN,COTTER

25

21X-43-11360

LEVER

26

01592-11215

NUT

27

01643-31445

WASHER

28

04050-13022

PIN,COTTER

29

01643-32060

WASHER

30

04248-31028

ROD

31

20S-43-12150

YOKE,L.H. THREAD

32

01508-41006

NUT,L.H. THREAD

33

20S-43-21570

YOKE

34

01582-11008

NUT

35

20T-43-48610

PIN

36

04050-12012

PIN,COTTER

37

20T-43-48620

PIN

38

04050-11210

PIN,COTTER

39

01010-51030

BOLT

40

01643-31032

WASHER
