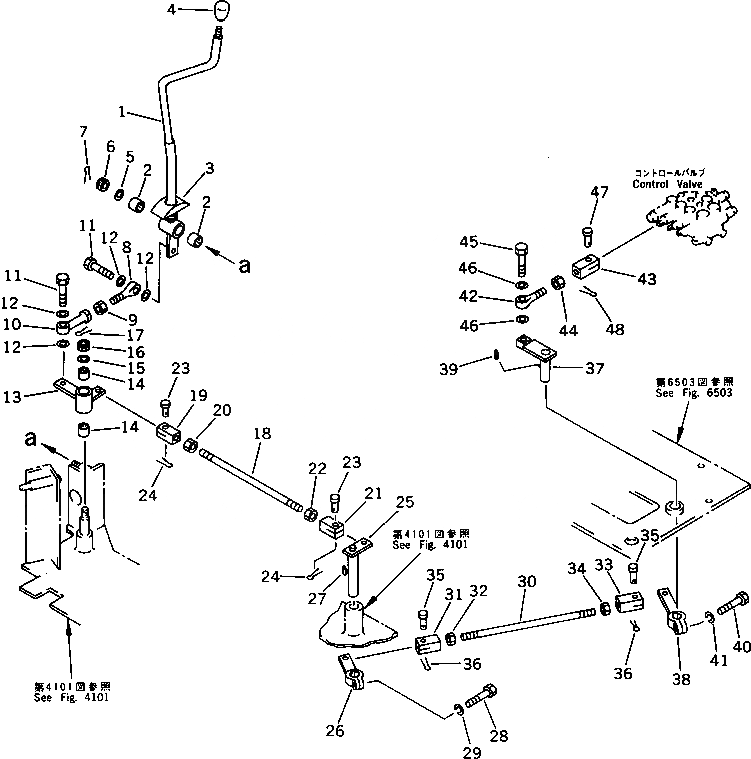

Запчасти Komatsu PC50UU-1 РЫЧАГ УПРАВЛЕНИЯ ОТВАЛОМ И МЕХАНИЗМ(№-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20U-43-11331

LEVER

2

195-61-34130

BEARING

3

20S-43-11230

COVER

4

20D-43-11370

KNOB

5

01643-31445

WASHER

6

01592-11215

NUT

7

04050-13022

PIN,COTTER

8

04252-21061

END,ROD

9

01580-21008

NUT

10

04250-41056

END,ROD

11

01010-51035

BOLT

12

01643-31032

WASHER

13

20U-43-11341

LEVER

14

195-61-34130

BEARING

15

01643-31445

WASHER

16

01592-11215

NUT

17

04050-13022

PIN,COTTER

18

04248-31035

ROD

19

20T-43-22210

YOKE

20

01582-11008

NUT

21

20S-43-12150

YOKE,L.H. THREAD

22

01508-41006

NUT,L.H. THREAD

23

04205-10822

PIN

24

04050-12012

PIN,COTTER

25

20U-43-11371

SHAFT

26

20S-43-21530

LEVER

27

04010-00519

KEY

28

01010-50830

BOLT

29

01602-20825

WASHER,SPRING

30

04248-31035

ROD

31

20T-43-22210

YOKE

32

01582-11008

NUT

33

20S-43-12150

YOKE,L.H. THREAD

34

01508-41006

NUT,L.H. THREAD

35

04205-10822

PIN

36

04050-12012

PIN,COTTER

37

20U-43-11411

LEVER

38

20S-43-21530

LEVER

39

04010-00519

KEY

40

01010-50830

BOLT

41

01602-20825

WASHER,SPRING

42

04252-21061

END

43

20S-43-21570

YOKE

44

01582-11008

NUT

45

01010-51030

BOLT

46

01643-31032

WASHER

47

04205-10520

PIN

48

04050-11210

PIN,COTTER
