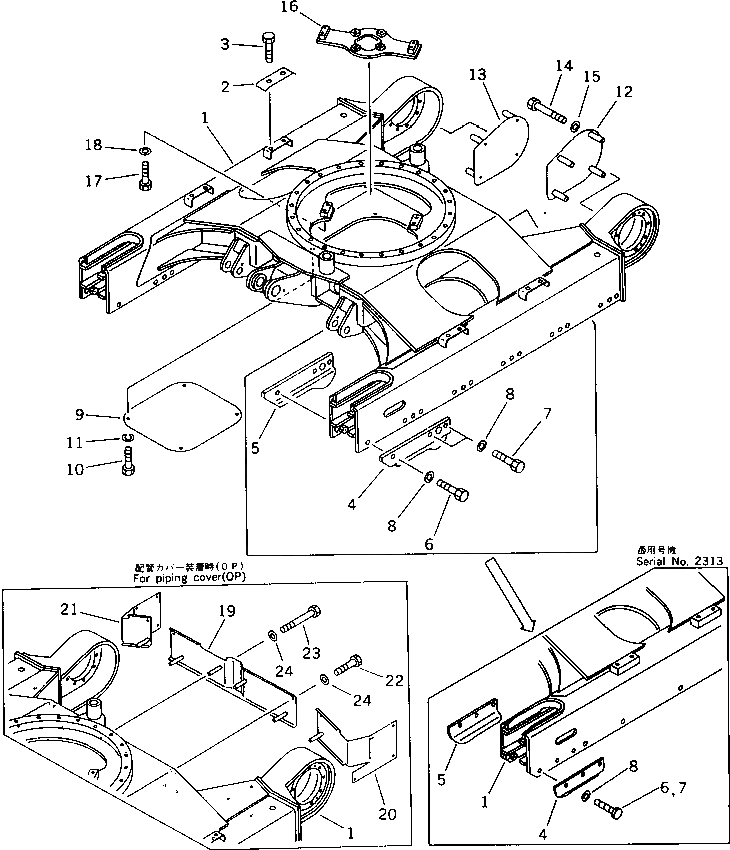

Запчасти Komatsu PC50UU-1 ГУСЕНИЧНАЯ РАМА(№-) ХОДОВАЯ

1

20U-30-11112

FRAME,TRACK

1

20U-30-11111

FRAME,TRACK

1

20U-30-13140

FRAME,TRACK (FOR PIPING COVER) (OP)

2

20R-30-11190

PLATE

3

01010-51225

BOLT

4

20T-30-41311

GUARD,L.H. OUTSIDE AND R.H. INSIDE

4

20T-30-31310

GUARD,L.H. OUTSIDE AND R.H. INSIDE

5

20T-30-41321

GUARD,R.H. OUTSIDE AND L.H. INSIDE

5

20T-30-31320

GUARD,R.H. OUTSIDE AND L.H. INSIDE

6

01010-51640

BOLT

6

01010-51430

BOLT

7

01010-51440

BOLT

8

01643-31645

WASHER

8

01643-31445

WASHER

9

20S-30-21120

COVER

10

01010-51016

BOLT

11

01602-21030

WASHER,SPRING

12

20U-30-11211

COVER,L.H.

13

20U-30-11221

COVER,R.H.

14

01011-51000

BOLT

15

01643-31032

WASHER

16

20U-30-11120

PLATE

17

01010-51255

BOLT

18

01643-31232

WASHER

G-1

20U-30-X1310

COVER GROUP,(FOR PIPING COVER) (OP)

19

20U-30-13110

COVER

20

20U-30-13120

COVER,L.H.

21

20U-30-13130

COVER,R.H.

22

01010-51025

BOLT

23

01010-51095

BOLT

24

01643-31032

WASHER
