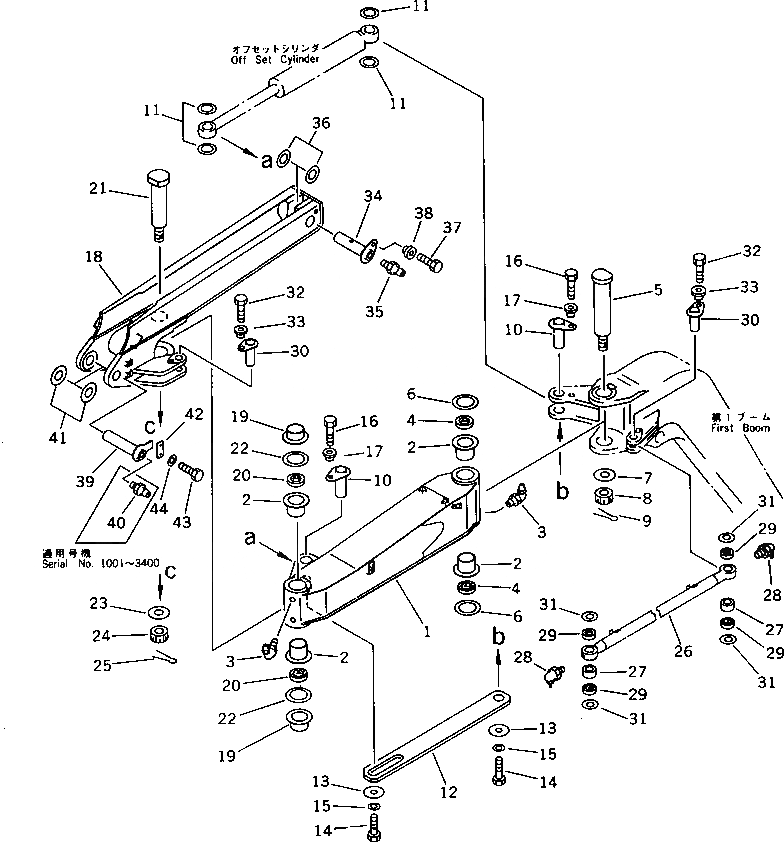

Запчасти Komatsu PC50UU-1 СТРЕЛА (/)¤ 2 И 3 РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

20U-70-00201

BOOM ASS'Y,SECOND

1

BOOM

2

20U-70-11290

BUSHING

3

07020-00900

FITTING,GREASE

4

07145-00070

SEAL,DUST

5

20U-70-11280

SHAFT

6

203-70-34270

SPACER, 0.5MM

6

203-70-11210

SPACER, 1.0MM

6

203-70-11220

SPACER, 2.0MM

7

20U-70-11320

PLATE

8

01590-14246

NUT

9

04050-18075

PIN,COTTER

10

20U-70-11222

PIN

10

420U-70-11221

PIN

11

201-70-23140

SPACER, 1.0MM

12

20U-70-11151

PLATE

13

20U-70-11370

HOLDER

14

01010-51230

BOLT

14

01010-51225

BOLT

15

01643-31232

WASHER

16

01010-51635

BOLT

17

20T-70-41160

SPACER

17

01643-31645

WASHER

|$24

20U-70-00601

BOOM ASS'Y,THIRD

|$25

20U-70-00600

BOOM ASS'Y,THIRD

18

BOOM

18

BOOM

19

20U-70-11310

BUSHING

20

07145-00070

SEAL

21

20U-70-11181

SHAFT

22

203-70-34270

SPACER, 0.5MM

22

203-70-11210

SPACER, 1.0MM

22

203-70-11220

SPACER, 2.0MM

23

20U-70-11320

PLATE

24

01590-14246

NUT

25

04050-18075

PIN,COTTER

|$37

20U-70-00302

LINK ASS'Y

|$38

20U-70-00301

LINK ASS'Y

26

LINK

26

LINK

27

07144-10304

BUSHING

28

07020-00675

FITTING,GREASE

29

07145-00035

SEAL

30

20U-70-11232

SHAFT

30

420U-70-11231

SHAFT

31

20R-70-11270

SPACER, 1.0MM

32

01010-51230

BOLT

33

20S-70-31180

SPACER

33

01643-31232

WASHER

34

20U-70-11242

SHAFT

34

420U-70-11241

SHAFT

35

07020-00000

FITTING,GREASE

36

20T-70-19130

SPACER, 1.0MM

37

01010-51635

BOLT

38

20T-70-41160

SPACER

38

01643-31645

WASHER

39

20T-70-41141

PIN

39

20U-70-11340

SHAFT

40

07020-00000

FITTING,GREASE

41

201-70-23140

SPACER, 1.0MM

42

20U-70-11350

PLATE

43

01010-51230

BOLT

44

01643-31232

WASHER
