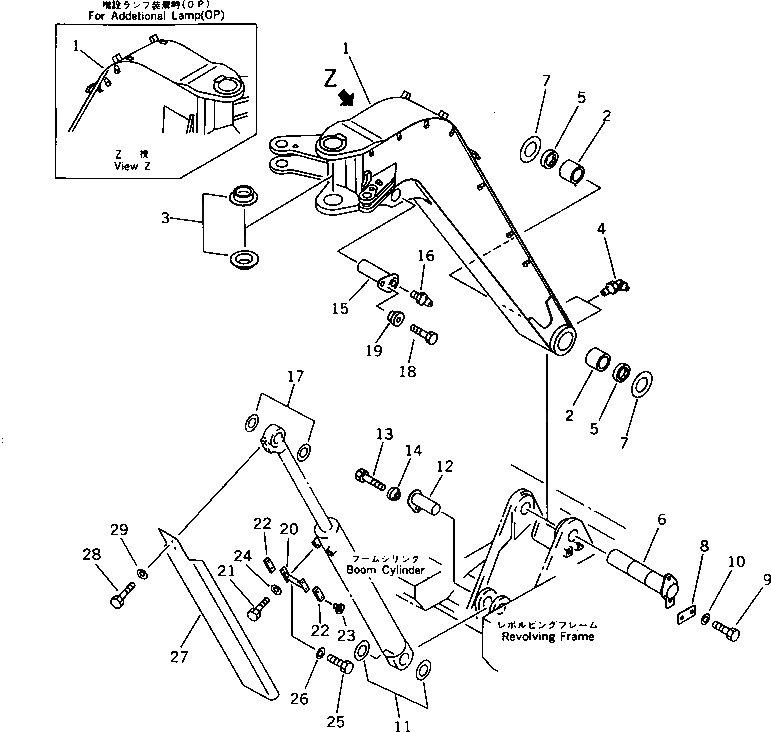

Запчасти Komatsu PC50UU-1 СТРЕЛА (/)¤ 1(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

20U-70-00101

BOOM ASS'Y,FIRST

|$1

20U-70-00150

BOOM ASS'Y,FIRST (FOR ADDITIONAL LAMP) (OP)

1

BOOM

1

BOOM,(FOR ADDITIONAL LAMP) (OP)

2

201-70-21182

BUSHING

2

201-70-21181

BUSHING

3

20U-70-11310

BUSHING

4

07020-00675

FITTING,GREASE

5

07145-00060

SEAL,DUST

6

20U-70-11160

SHAFT

7

20B-46-21180

PLATE, 1.0MM

7

201-70-21290

SPACER, 1.0MM

8

20U-70-11330

PLATE

9

01010-51230

BOLT

10

01643-31232

WASHER

11

201-70-23140

SPACER, 1.0MM

12

20U-70-11192

PIN

12

420U-70-11190

PIN

13

01010-51635

BOLT

14

20T-70-41160

SPACER

14

01643-31645

WASHER

15

20U-70-11361

PIN

15

420U-70-11360

PIN

16

07020-00000

FITTING,GREASE

17

201-70-23140

SPACER, 1.0MM

18

01010-51635

BOLT

19

20T-70-41160

SPACER

19

01643-31645

WASHER

20

20U-70-11251

PLATE

20

20U-70-11250

PLATE

21

01010-50812

BOLT

22

21X-70-11410

PAD

22

20U-70-11261

PAD

23

21X-70-11420

COLLAR

24

01643-30823

WASHER

25

01010-50612

BOLT

26

01643-30623

WASHER

27

20U-70-11271

COVER

27

20U-70-11270

COVER

28

01010-51020

BOLT

29

01643-31032

WASHER
