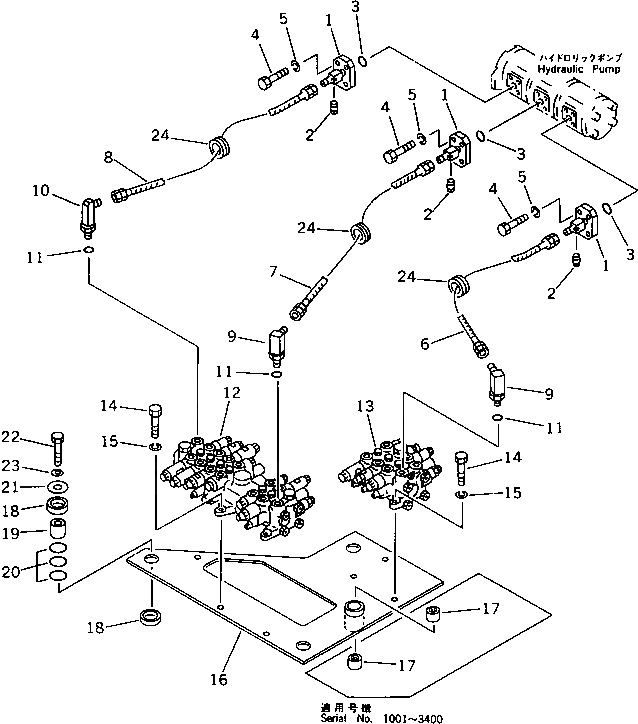

Запчасти Komatsu PC50UU-1 ГИДРОЛИНИЯ (ИЗ НАСОСА В КЛАПАН) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

20T-62-61240

TUBE

2

07042-00108

PLUG

3

07000-13025

O-RING

4

01010-50835

BOLT

5

01602-00825

WASHER,SPRING

6

20U-62-11430

HOSE

7

20U-62-11180

HOSE

7

20U-62-11140

HOSE

8

201-62-58530

HOSE

8

20S-62-21520

HOSE

9

20X-62-21470

ELBOW

10

20X-62-21470

ELBOW

10

20U-62-11450

ELBOW

11

07002-12034

O-RING

12

709-36-13402

VALVE ASS'Y,(SEE FIG.6201)

12

709-36-13401

VALVE ASS'Y,(SEE FIG.6201)

12

709-36-12302

VALVE ASS'Y,(SEE FIG.6201)

12

709-36-12301

VALVE ASS'Y,(SEE FIG.6201)

12

709-36-12300

VALVE ASS'Y,(SEE FIG.6201)

13

709-33-12300

VALVE ASS'Y,(SEE FIG.6211)

13

709-33-11404

VALVE ASS'Y,(SEE FIG.6211)

13

709-33-11403

VALVE ASS'Y,(SEE FIG.6211)

14

01010-50825

BOLT

15

01602-20825

WASHER,SPRING

16

20U-60-12122

PLATE

16

20U-60-12121

PLATE

17

195-61-34130

BEARING

18

203-62-42770

CUSHION

19

20X-62-21550

SPACER

20

07000-03025

O-RING

21

566-35-42430

PLATE

22

01010-51250

BOLT

23

01643-31232

WASHER

24

08037-03614

GROMMET
