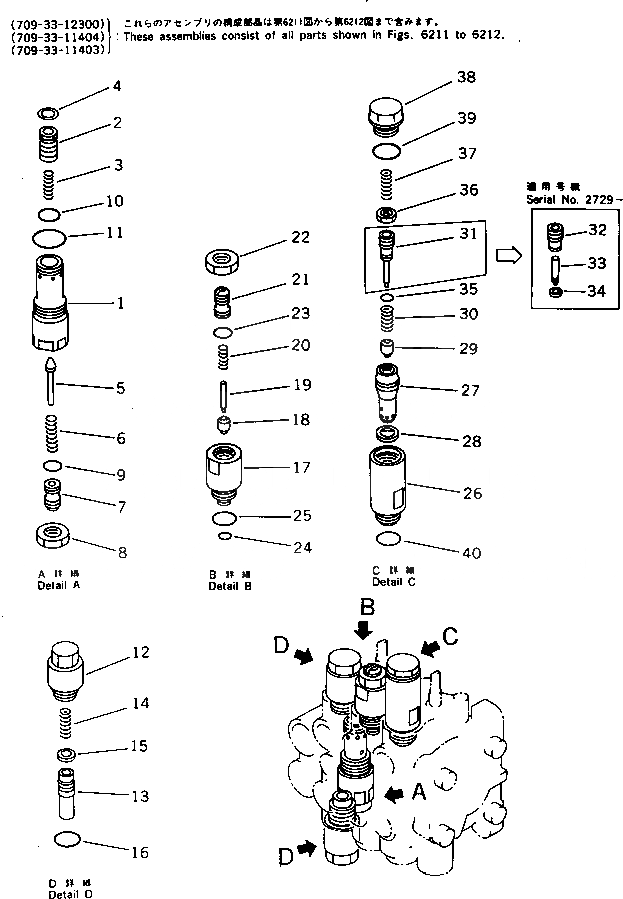

Запчасти Komatsu PC50UU-1 3-Х СЕКЦИОНН. КЛАПАН (/) (ПОВОРОТН.¤ СКОРОСТЬ ДВИЖЕНИЯ¤ ОТВАЛ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-33-12300

VALVE ASS'Y

|$1

709-33-11404

VALVE ASS'Y

|$2

709-33-11403

VALVE ASS'Y

|$3

700-28-51000

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

VALVE

3

700-20-51430

SPRING

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|$15

709-30-61100

VALVE ASS'Y,SUCTION

12

709-30-61110

SLEEVE

13

VALVE

14

700-20-62170

SPRING

15

SEAL

16

07002-02034

O-RING

|$21

709-30-65703

VALVE ASS'Y,SAFETY

|$22

709-30-65702

VALVE ASS'Y,SAFETY

17

SLEEVE

18

POPPET

19

PISTON

20

SPRING

21

SCREW

22

NUT

23

O-RING

24

709-32-11840

O-RING

25

07002-02034

O-RING

|$32

709-30-63602

VALVE ASS'Y,SUCTION AND SAFETY

|$33

709-30-63200

VALVE ASS'Y,SUCTION AND SAFETY

26

709-30-62110

SLEEVE

27

VALVE

27

VALVE

28

SEAL

29

POPPET

29

POPPET

30

SPRING

30

SPRING

31

PISTON

32

SCREW

33

PISTON

34

SEAL

35

O-RING

36

NUT

37

700-20-62170

SPRING

38

709-30-62150

PLUG

39

07002-12034

O-RING

40

07002-02034

O-RING
