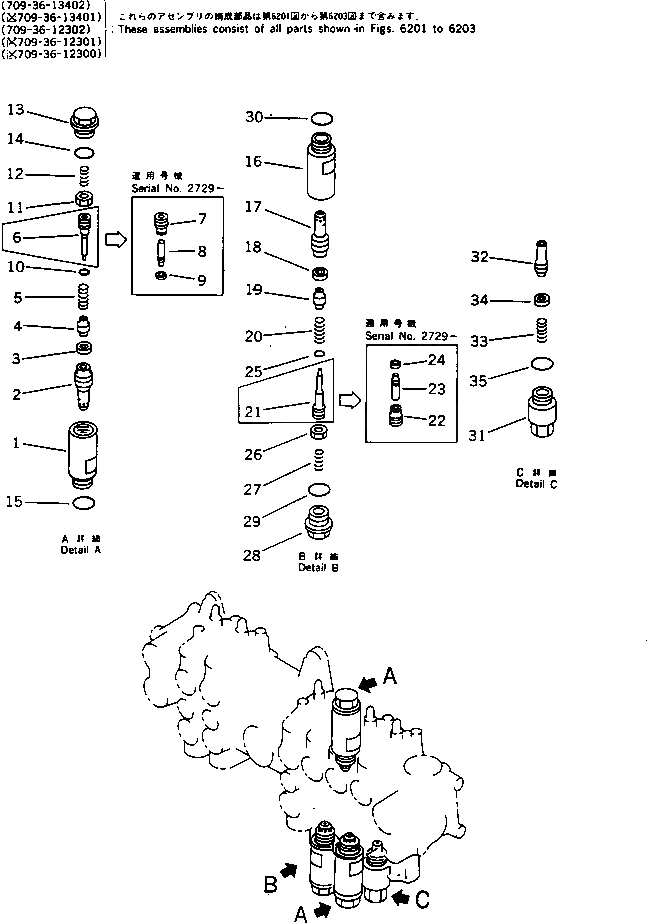

Запчасти Komatsu PC50UU-1 6-СЕКЦИОНН. КЛАПАН (/) (РУКОЯТЬ¤ ХОД¤ КОВШ¤ СТРЕЛА¤ OFFSET) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-36-13402

VALVE ASS'Y

|$1

709-36-13401

VALVE ASS'Y

|$2

709-36-12302

VALVE ASS'Y

|$3

709-36-12301

VALVE ASS'Y

|$4

709-36-12300

VALVE ASS'Y

|$5

709-30-63702

VALVE ASS'Y,SUCTION AND SAFETY

|$6

709-30-63300

VALVE ASS'Y,SUCTION AND SAFETY

1

709-30-62110

SLEEVE

2

VALVE

2

VALVE

3

SEAL

4

POPPET

4

POPPET

5

SPRING

5

SPRING

6

PISTON

7

SCREW

8

PISTON

9

SEAL

10

O-RING

11

NUT

12

700-20-62170

SPRING

13

709-30-62150

PLUG

14

07002-12034

O-RING

15

07002-02034

O-RING

|$25

709-30-64500

VALVE ASS'Y,SUCTION AND SAFETY

|$26

709-30-62400

VALVE ASS'Y,SUCTION AND SAFETY

16

709-30-62110

SLEEVE

17

VALVE

17

VALVE

18

SEAL

19

POPPET

19

POPPET

20

SPRING

21

PISTON

22

SCREW

23

PISTON

24

SEAL

25

O-RING

26

NUT

27

700-20-62170

SPRING

28

709-30-62150

PLUG

29

07002-12034

O-RING

30

07002-02034

O-RING

|$44

709-30-61100

VALVE ASS'Y,SUCTION

31

709-30-61110

SLEEVE

32

VALVE

33

700-20-62170

SPRING

34

SEAL

35

07002-02034

O-RING
