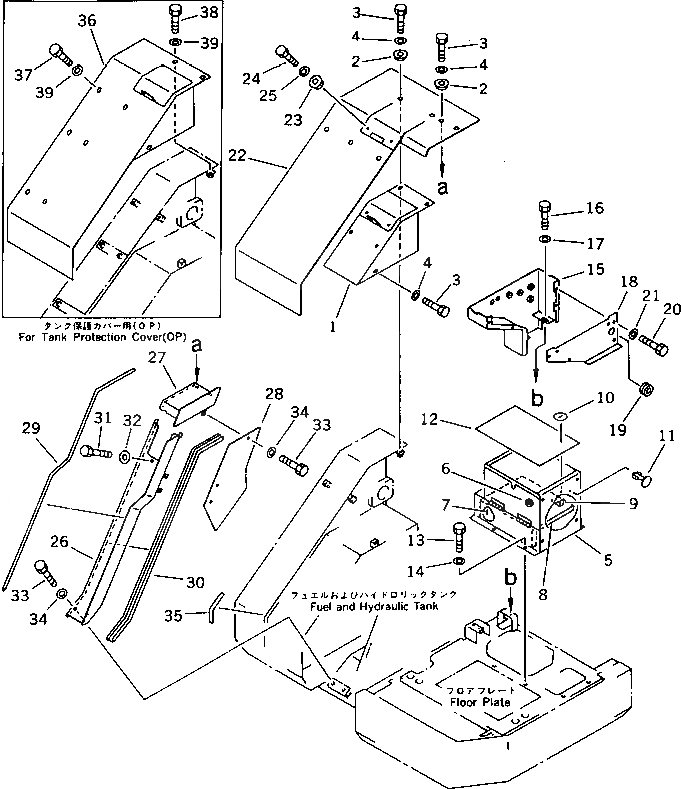

Запчасти Komatsu PC50UU-1 ПОЛ КАБИНЫ (/) (ДЛЯ КАБИНЫ) ЧАСТИ КОРПУСА

1

20U-54-12114

BOX,PANEL

|1

20U-54-12113

BOX,PANEL

2

20U-54-11581

COLLAR

|2

20U-54-11580

COLLAR

3

01010-51020

BOLT

4

01643-31032

WASHER

5

21X-54-13221

BOX

|5

20U-54-13240

BOX

|5

21W-54-13440

HINGE (WELDED)

|5

09455-17019

HINGE (WELDED)

6

08037-02512

GROMMET

7

20U-54-13260

SHEET

8

20U-54-13250

SHEET

9

04431-11000

CLIP (WELDED)

10

04431-30000

PLATE

11

21X-54-11840

PLUG

12

20T-54-42130

SHEET

13

01010-51020

BOLT

14

01643-31032

WASHER

15

20U-54-13213

BOX,PANEL

|15

20U-54-13432

BOX,PANEL

|15

20U-54-13431

BOX,PANEL

|15

20U-54-13430

BOX,PANEL

16

01010-51025

BOLT

17

01643-31032

WASHER

18

20U-54-13232

COVER

|18

20U-54-13440

COVER

19

08037-02512

GROMMET

20

01010-50812

BOLT

21

01643-30823

WASHER

22

20U-54-11572

SHEET

23

20U-54-11651

COLLAR

|23

20U-54-11650

COLLAR

24

01010-50616

BOLT

25

01643-30623

WASHER

26

20U-54-11540

PLATE

27

20U-54-11531

PLATE

28

20U-54-11550

PLATE

29

09412-00012

SEAL

30

20U-54-11561

SEAL

31

01010-50816

BOLT

32

20U-54-11591

WASHER

|32

20U-54-11590

WASHER

33

01010-51020

BOLT

34

01643-31032

WASHER

35

20U-54-11660

SEAL

G-1

20U-54-X1240

COVER GROUP,(FOR TANK PROTECTION COVER) (OP)

36

20U-54-12510

COVER

37

01010-51020

BOLT

38

01010-51035

BOLT

39

01643-31032

WASHER
