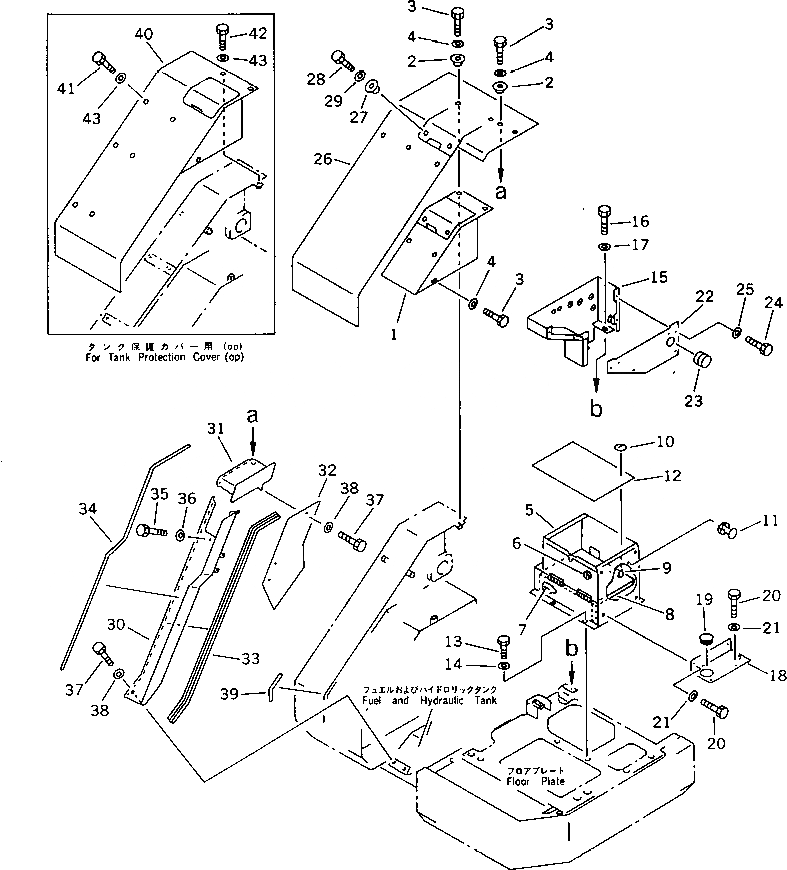

Запчасти Komatsu PC50UU-1 ПОЛ КАБИНЫ (/)(№-) ЧАСТИ КОРПУСА

1

20U-54-12114

BOX,PANEL

2

20U-54-11581

COLLAR

3

01010-51020

BOLT

4

01643-31032

WASHER

5

21X-54-13221

BOX

|5

21W-54-13440

HINGE (WELDED)

6

08037-02512

GROMMET

7

20U-54-13260

SHEET

8

20U-54-13250

SHEET

9

04431-11000

CLIP (WELDED)

10

04431-30000

PLATE

11

21X-54-11840

PLUG

12

20T-54-42130

SHEET

13

01010-51020

BOLT

14

01643-31032

WASHER

15

20U-54-13213

BOX,PANEL

16

01010-51025

BOLT

17

01643-31032

WASHER

18

20U-54-13171

PLATE

19

09415-05016

CAP

20

01010-51025

BOLT

21

01643-31032

WASHER

22

20U-54-13232

COVER

23

09415-02512

CAP

24

01010-50812

BOLT

25

01643-30823

WASHER

26

20U-54-11572

SHEET

27

20U-54-11651

COLLAR

28

01010-50616

BOLT

29

01643-30623

WASHER

30

20U-54-11540

PLATE

31

20U-54-11531

PLATE

32

20U-54-11550

PLATE

33

09412-00012

SEAL

34

20U-54-11561

SEAL

35

01010-50816

BOLT

36

20U-54-11591

WASHER

37

01010-51020

BOLT

38

01643-31032

WASHER

39

20U-54-11660

SEAL

G-1

20U-54-X1240

COVER GROUP,(FOR TANK PROTECTION COVER) (OP)

40

20U-54-12510

COVER

41

01010-51020

BOLT

42

01010-51035

BOLT

43

01643-31032

WASHER
