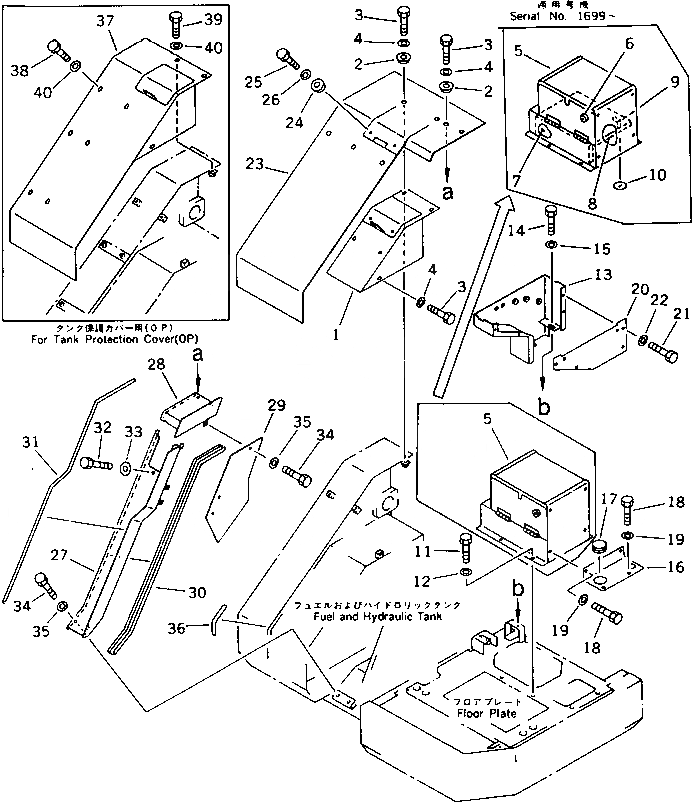

Запчасти Komatsu PC50UU-1 ПОЛ КАБИНЫ (/)(№-) ЧАСТИ КОРПУСА

1

20U-54-12113

BOX,PANEL

2

20U-54-11580

COLLAR

3

01010-51020

BOLT

4

01643-31032

WASHER

5

20U-54-13240

BOX

|5

20U-54-13182

BOX

|5

09455-17019

HINGE (WELDED)

6

08037-02512

GROMMET

7

20U-54-13260

SHEET

8

20U-54-13250

SHEET

9

04431-11000

CLIP (WELDED)

10

04431-30000

PLATE

11

01010-51020

BOLT

12

01643-31032

WASHER

13

20U-54-13212

BOX,PANEL

|13

20U-54-13211

BOX,PANEL

14

01010-51025

BOLT

15

01643-31032

WASHER

16

20U-54-13170

PLATE

17

09415-05016

CAP

18

01010-51025

BOLT

19

01643-31032

WASHER

20

20U-54-13231

COVER

21

01010-50812

BOLT

22

01643-30823

WASHER

23

20U-54-11572

SHEET

24

20U-54-11650

COLLAR

25

01010-50616

BOLT

26

01643-30623

WASHER

27

20U-54-11540

PLATE

28

20U-54-11531

PLATE

29

20U-54-11550

PLATE

30

09412-00012

SEAL

31

20U-54-11561

SEAL

32

01010-50816

BOLT

33

20U-54-11590

WASHER

34

01010-51020

BOLT

35

01643-31032

WASHER

36

20U-54-11660

SEAL

G-1

20U-54-X1240

COVER GROUP,(FOR TANK PROTECTION COVER) (OP)

37

20U-54-12510

COVER

38

01010-51020

BOLT

39

01010-51035

BOLT

40

01643-31032

WASHER
