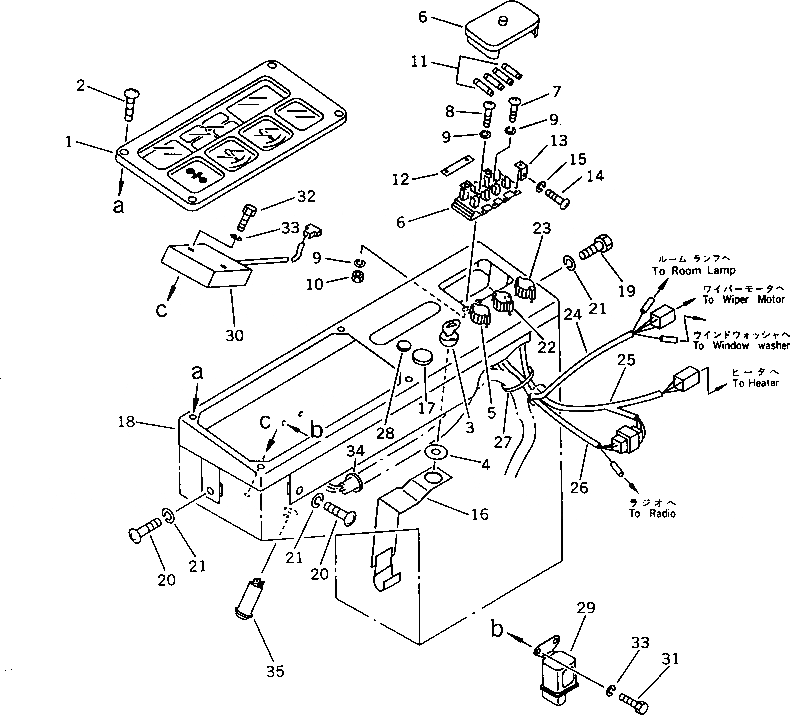

Запчасти Komatsu PC50UU-1 ПАНЕЛЬ ПРИБОРОВ (ДЛЯ КАБИНЫ) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20S-06-21240

GAUGE ASS'Y,(SEE FIG.1421)

|1

20T-06-31310

GAUGE ASS'Y,(SEE FIG.1421)

2

01224-70520

SCREW

3

08086-20000

SWITCH,STARTING

4

205-26-91140

SPACER

5

205-06-71331

SWITCH,LAMP

6

20S-06-21130

BOX,FUSE

7

01220-40525

SCREW

8

01220-40520

SCREW

9

01601-20513

WASHER,SPRING

10

01580-10504

NUT

11

08040-02000

FUSE¤ 20A

12

150-06-14290

TERMINAL

13

20S-06-21150

PLATE

14

01220-40406

SCREW

15

01601-20410

WASHER,SPRING

16

21X-06-11120

PLATE

|16

20U-06-11130

PLATE

17

09415-01610

CAP

|17

600-815-1790

SIGNAL

18

21W-06-11110

PANEL

19

01010-50816

BOLT

20

01220-40816

SCREW

21

01602-20825

WASHER,SPRING

22

205-06-71341

SWITCH,WIPER

23

205-06-71321

SWITCH,HEATER

24

20U-06-13111

WIRE ASS'Y

|24

20U-06-13110

WIRE ASS'Y

25

21W-06-11480

WIRE

26

20U-977-1210

WIRE ASS'Y

27

08034-00310

BAND

28

09415-00706

CAP

29

600-815-7530

RELAY

30

600-815-7520

TIMER

31

01010-50612

BOLT

32

01010-50635

BOLT

33

01602-20619

WASHER,SPRING

34

08034-00519

BAND

35

20S-06-31710

BREAKER
