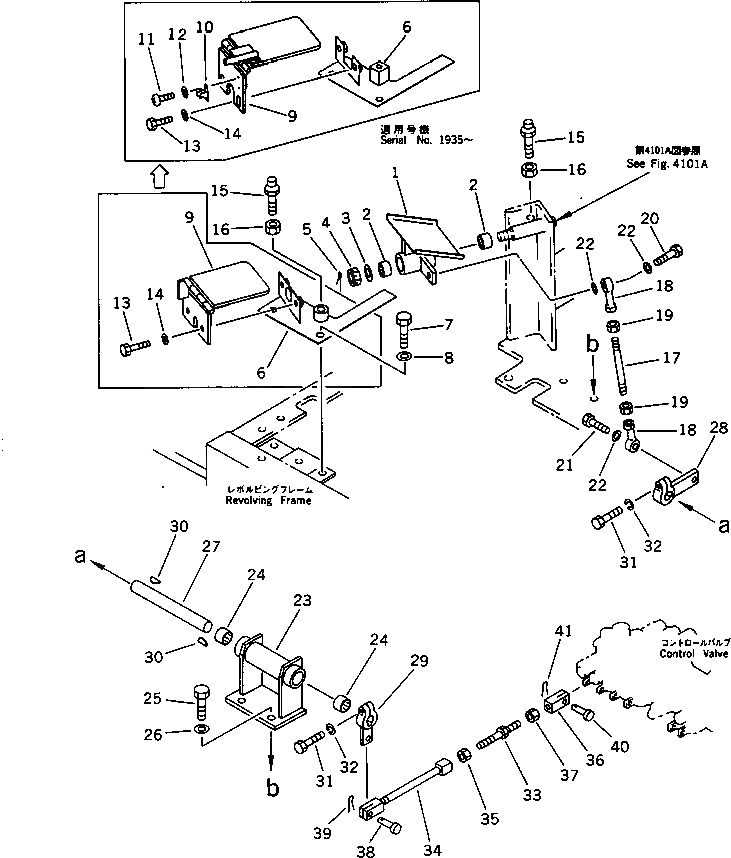

Запчасти Komatsu PC50UU-1 СТРЕЛА OFFSET ПЕДАЛЬ УПРАВЛ-Я И МЕХАНИЗМ СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20U-43-11532

PEDAL

|1

20U-43-11531

PEDAL

2

195-61-34130

BEARING

3

01643-31445

WASHER

4

01592-11215

NUT

5

04050-13022

PIN,COTTER

6

20U-43-11513

COVER

|6

20U-43-11512

COVER

|6

20U-43-11511

COVER

7

01010-51020

BOLT

8

01643-31032

WASHER

9

20U-43-11583

COVER

|9

20U-43-11582

COVER

|9

20U-43-11581

COVER

10

20B-54-12210

SPRING

11

01220-40406

SCREW

12

01641-20405

WASHER

13

01010-51025

BOLT

|13

01010-51020

BOLT

14

01643-31032

WASHER

15

09311-41237

BUMPER

16

01580-11210

NUT

17

04245-41012

ROD

18

04250-41056

END,ROD

19

01582-11008

NUT

20

01010-51035

BOLT

|20

01010-51030

BOLT

21

01010-51035

BOLT

22

01643-31032

WASHER

23

21X-43-11370

BRACKET

|23

20U-43-11540

BRACKET

24

195-61-34130

BEARING

25

01010-51025

BOLT

26

01643-31032

WASHER

27

20U-43-11550

SHAFT

28

20U-43-11560

LEVER

29

20U-43-11570

LEVER

30

04010-00519

KEY

31

01010-50830

BOLT

32

01602-20825

WASHER,SPRING

33

04248-31013

ROD

|33

04248-31010

ROD

34

20U-43-11621

ROD

35

01508-41006

NUT,L.H. THREAD

36

20S-43-21570

YOKE

37

01582-11008

NUT

38

20T-43-48610

PIN

|38

04205-10822

PIN

39

04050-12012

PIN,COTTER

40

20T-43-48620

PIN

|40

04205-10520

PIN

41

04050-11210

PIN,COTTER
