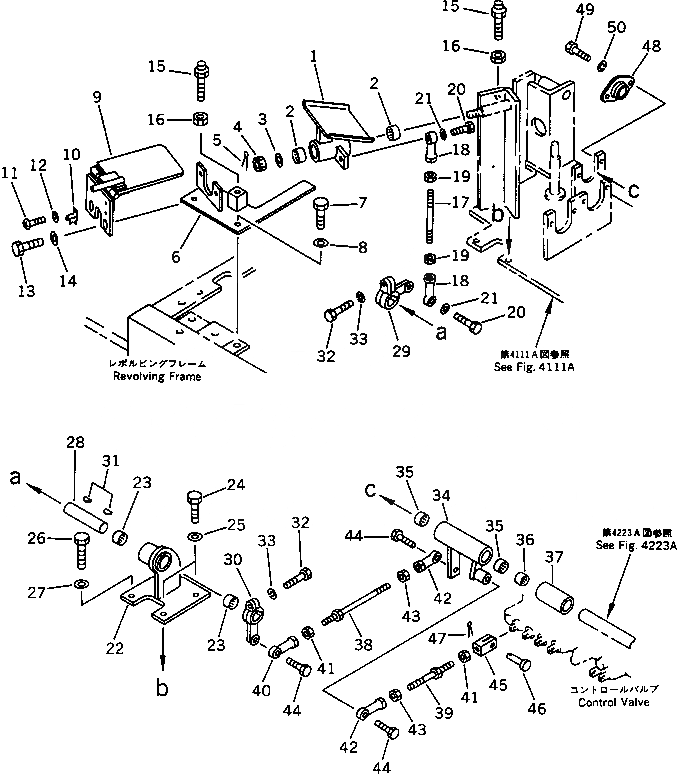

Запчасти Komatsu PC50UU-1 СТРЕЛА OFFSET ПЕДАЛЬ УПРАВЛ-Я И МЕХАНИЗМ ( WAY SHIFT PATTERN СПЕЦ-Я.)(№-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20U-43-11532

PEDAL

2

195-61-34130

BEARING

3

01643-31445

WASHER

4

01592-11215

NUT

5

04050-13022

PIN,COTTER

6

20U-43-11513

COVER

7

01010-51020

BOLT

8

01643-31032

WASHER

9

20U-43-11583

COVER

10

20B-54-12210

SPRING

11

01220-40406

SCREW

12

01641-20405

WASHER

13

01010-51025

BOLT

14

01643-31032

WASHER

15

09311-41237

BUMPER

16

01580-11210

NUT

17

04245-41012

ROD

18

04250-41056

END,ROD

19

01582-11008

NUT

20

01010-51030

BOLT

21

01643-31032

WASHER

22

20U-43-14310

BRACKET

23

195-61-34130

BEARING

24

01010-51030

BOLT

25

01643-31032

WASHER

26

01010-51235

BOLT

27

01643-31232

WASHER

28

20U-43-14320

SHAFT

29

20U-43-14340

LEVER

30

20U-43-14330

LEVER

31

04010-00519

KEY

32

01010-50830

BOLT

33

01602-20825

WASHER,SPRING

34

20U-43-14541

LEVER

35

195-61-34130

BEARING

36

195-43-43190

BEARING

37

20U-43-14720

SPACER

38

04248-31017

ROD

39

20S-43-11470

ROD

40

04250-41056

END,ROD

41

01582-11008

NUT

42

04250-61056

END,ROD¤ L.H. THREAD

43

01508-41006

NUT,L.H. THREAD

44

01010-51030

BOLT

45

20S-43-21570

YOKE

46

20T-43-48620

PIN

47

04050-11210

PIN,COTTER

48

20T-43-31310

BEARING

49

01010-50816

BOLT

50

01602-20825

WASHER,SPRING
