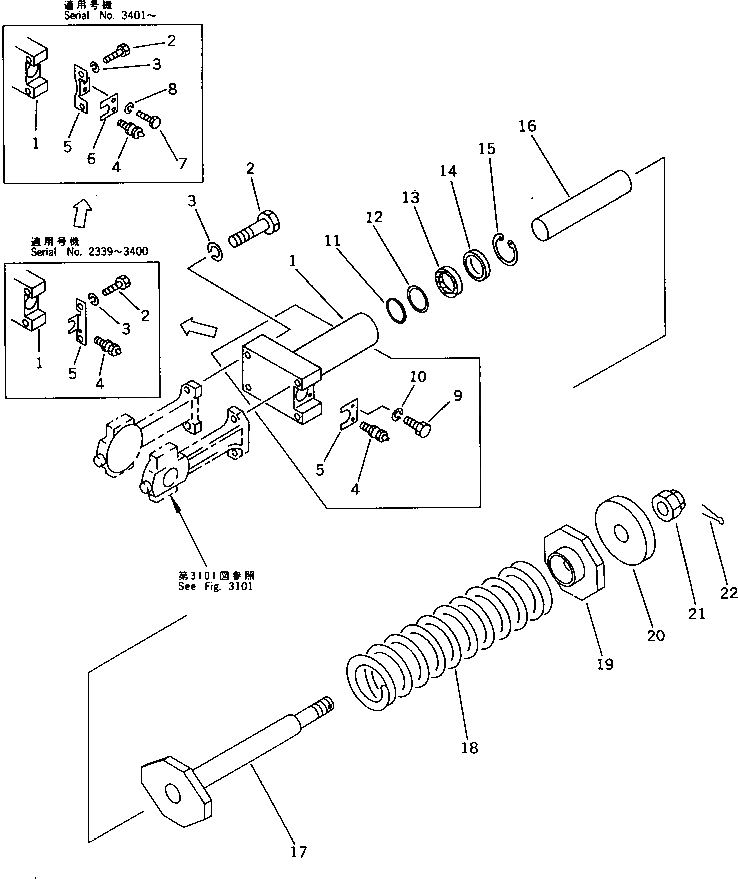

Запчасти Komatsu PC50UU-1 ПРУЖИНА ХОДОВАЯ

1

20U-30-12160

CYLINDER

|1

20R-30-21511

CYLINDER

2

01010-51260

BOLT

|2

01010-51270

BOLT

3

01602-21236

WASHER,SPRING

4

07959-20001

VALVE

|4

07959-20000

VALVE

5

20U-30-12180

PLATE

|5

20S-30-21550

PLATE

|5

20R-30-21530

PLATE

6

20U-30-12170

PLATE

7

01010-50816

BOLT

8

01602-20825

WASHER,SPRING

9

01010-50816

BOLT

10

01602-20825

WASHER,SPRING

11

07000-13040

O-RING

12

20R-30-21550

RING,BACK-UP

13

07016-00407

SEAL,DUST

14

201-30-24170

SPACER

15

04065-05220

RING,SNAP

16

20R-30-21521

ROD

17

20U-30-12111

ROD

18

20U-30-12130

SPRING

19

20U-30-12121

BRACKET

20

20U-30-12141

PLATE,(FOR RUBBER SHOE)

|20

20U-30-12140

PLATE,(FOR RUBBER SHOE)

21

01590-13033

NUT

22

04050-16055

PIN,COTTER
