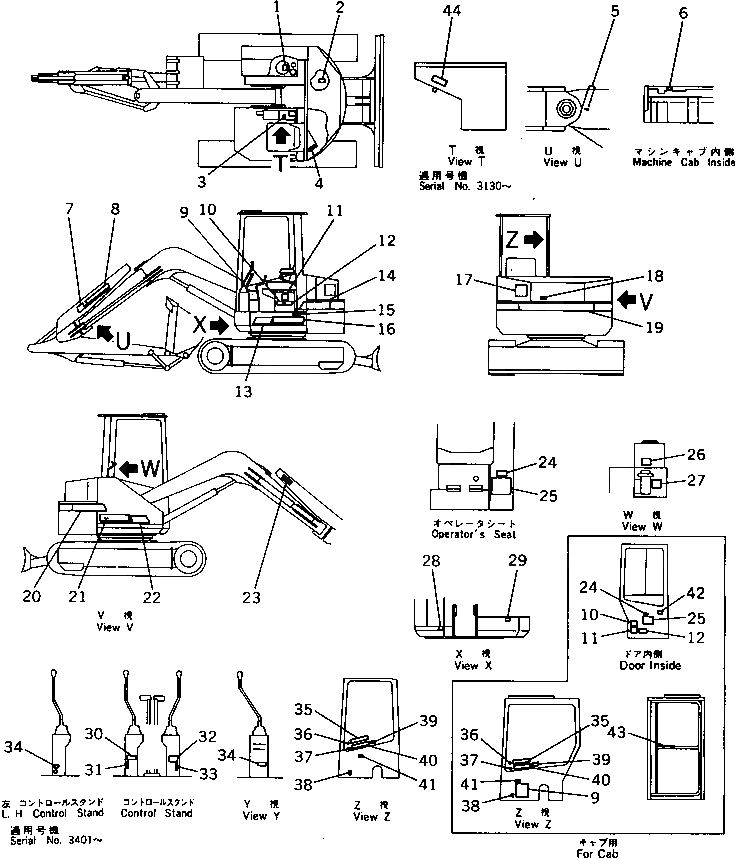

Запчасти Komatsu PC50UU-1 МАРКИРОВКА (ЯПОН.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

203-00-21180

PLATE¤ CAUTION,HYDRAULIC FILTER

2

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

3

09683-01060

PLATE¤ OPERATING,STARTER SWITCH

4

09641-01660

PLATE¤ INSTRUCTION,AIR CLEANER

5

20U-00-11160

PLATE¤ MARK

6

20N-98-21290

PLATE¤ CAUTION,FUEL FILTER

7

20U-00-11271

PLATE¤ MARK

|7

20U-00-11270

PLATE¤ MARK

8

09690-50450

PLATE¤ MARK,KOMATSU

9

20U-00-11131

CHART¤ OIL

|9

20U-00-11130

CHART¤ OIL

10

09132-00100

PLATE¤ SAFETY,STARTING

11

20U-00-11110

PLATE¤ NAME,(LIMITED SUPPLY)

12

09657-00110

PLATE¤ SAFETY,TRACK TENSION

13

20U-00-11241

STRIPE,L.H.

|13

20U-00-11240

STRIPE,L.H.

14

20U-00-11212

PLATE¤ MARK

|14

20U-00-11211

PLATE¤ MARK

15

09694-50100

PLATE¤ MARK,SYMBOL

16

20U-00-11261

PLATE¤ MARK,PC50UU

|16

20U-00-11260

PLATE¤ MARK,PC50UU

17

20R-98-21130

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

18

09667-00100

PLATE¤ SAFETY,ENGINE COVER

19

20U-00-11221

PLATE¤ MARK,KOMATSU

|19

20U-00-11220

PLATE¤ MARK,KOMATSU

20

20U-00-11232

PLATE¤ MARK

|20

20U-00-11231

PLATE¤ MARK

21

20U-00-11261

PLATE¤ MARK,PC50UU

|21

20U-00-11260

PLATE¤ MARK,PC50UU

22

20U-00-11251

STRIPE

|22

20U-00-11250

STRIPE,R.H.

23

09694-50100

PLATE¤ MARK,SYMBOL

24

09131-00100

PLATE¤ SAFETY,SWING LOCK PIN

25

20R-54-15391

PLATE¤ CAUTION

26

20M-98-62210

PLATE¤ CAUTION,FUEL DRAIN

|26

09652-01121

PLATE¤ CAUTION,FUEL DRAIN

27

09653-00110

PLATE¤ SAFETY,HYDRAULIC TANK CAP

28

21K-00-22170

PLATE¤ MARK,SYMBOL

29

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

|29

04418-13060

SCREW

30

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

31

09685-00001

PLATE¤ OPERATING,LEVER LOCK

32

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

33

09685-00001

PLATE¤ OPERATING,LEVER LOCK

34

20S-98-31190

PLATE¤ MARK,(QUICK SHIFTER)

|34

20R-98-24130

PLATE¤ OPERATING,LEVER

35

20U-00-11190

PLATE¤ OPERATING

36

20T-98-23140

PLATE

37

20T-98-23130

PLATE

38

09685-00002

PLATE¤ OPERATING,SWING LOCK PIN

39

20U-00-11150

PLATE¤ CAUTION,BOOM SWING

40

20U-00-11120

PLATE¤ OPERATING

41

20U-00-11140

PLATE¤ CAUTION,BLADE CONTROL

42

20U-00-11280

PLATE¤ CAUTION,(FOR CAB)

43

21W-00-11160

PLATE¤ CAUTION,(FOR CAB)

44

20S-98-31290

PLATE¤ OPERATING,WIPER MOTOR
