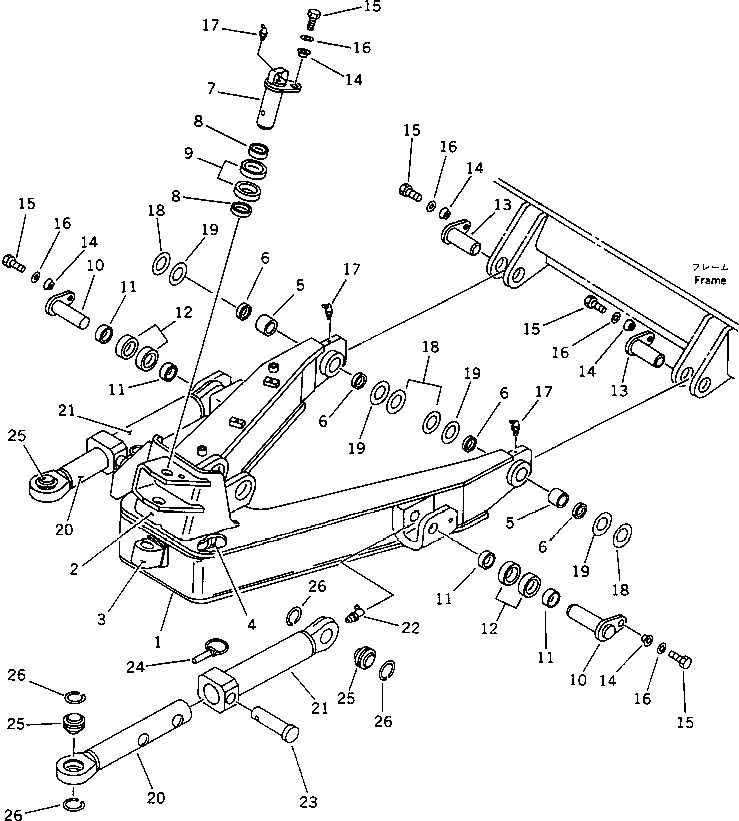

Запчасти Komatsu PC50UU-1 ОТВАЛ РАМА (ДЛЯ НАКЛОНЯЕМ. МЕХАНИЧ. ПОВОРОТНЫЙ ОТВАЛ)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20U-910-0020

FRAME ASS'Y,BLADE

|1

FRAME

2

20U-910-1221

BRACKET (WELDED)

3

101-71-12140

PIN,CENTER (WELDED)

4

101-71-12150

COLLAR (WELDED)

5

07144-10304

BUSHING

6

07145-00035

SEAL,DUST

7

20U-910-1231

PIN

8

20U-910-1280

COLLAR

9

20U-910-1290

BUSHING

10

20U-910-1241

PIN

11

104-72-21960

COLLAR

12

104-72-21990

BUSHING

13

20S-71-31221

PIN

14

20S-70-31180

SPACER

15

01010-51230

BOLT

16

01643-31232

WASHER

17

07020-00675

FITTING,GREASE

18

20R-70-11270

SPACER¤ 1.0MM

19

20S-71-11250

SPACER¤ 2.3MM

20

20U-910-1310

ROD ASS'Y

21

20U-910-1330

BRACE

22

07020-00900

FITTING,GREASE

23

20U-910-1351

PIN

24

421-46-12740

PIN,LINCH

25

104-72-21920

BEARING

26

04067-00055

RING,SNAP
