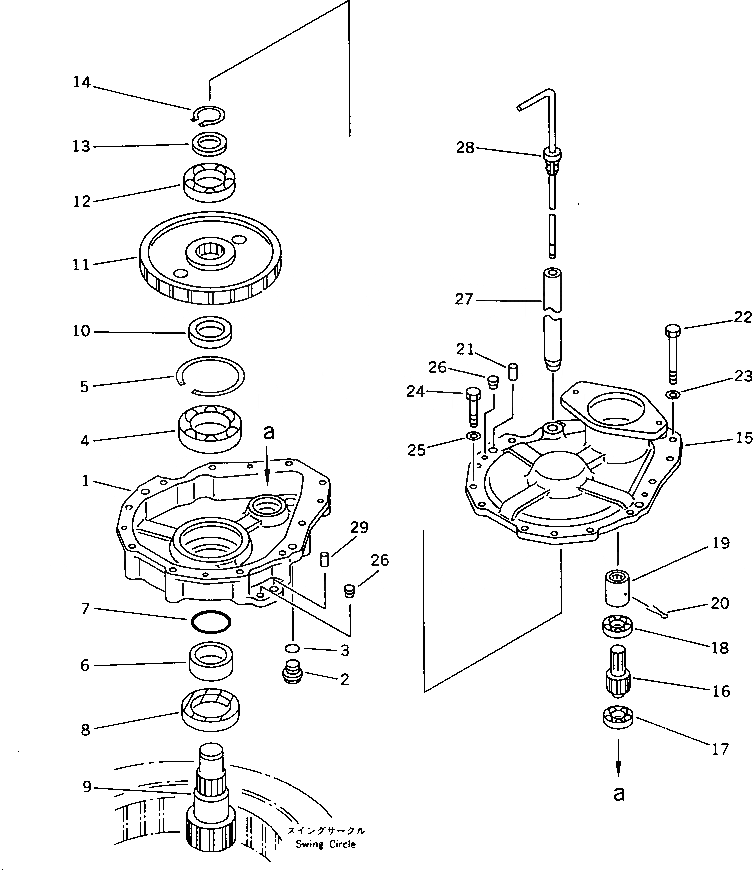

Запчасти Komatsu PC50UU-1 МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. СИСТЕМА

|1

20T-26-00100

SWING MACHINERY A.

|1

20U-26-00010

SWING MACHINERY A.

|1

20T-26-00080

SWING MACHINERY A.

1

20T-26-31220

CASE,LOWER

2

07044-12412

PLUG

3

07002-02434

O-RING

4

06030-22212

BEARING,ROLLER

5

04071-00110

RING,SNAP

6

20T-26-31250

COLLAR

7

07000-02060

O-RING

8

07012-00075

SEAL,OIL

9

20T-26-41230

SHAFT

|9

20T-26-31230

SHAFT

10

20T-26-41250

COLLAR

|10

20T-26-31240

COLLAR

11

20T-26-41260

GEAR

|11

20T-26-31260

GEAR

12

06044-00308

BEARING,ROLLER

13

20R-26-11360

COLLAR

14

04064-04018

RING,SNAP

15

20T-26-41110

CASE,UPPER

|15

20T-26-31210

CASE,UPPER

16

20T-26-41220

SHAFT

|16

20S-26-11130

SHAFT

17

06040-06304

BEARING,BALL

18

06044-00205

BEARING,ROLLER

19

20T-26-41210

COUPLING

|19

21E-26-11210

COUPLING

20

04050-15050

PIN,COTTER

21

04020-01434

PIN,DOWEL

22

01011-51200

BOLT

23

01643-31232

WASHER

24

01010-51035

BOLT

25

01643-31032

WASHER

26

07049-01215

PLUG

27

20T-26-31110

FILLER

28

20T-26-31120

GAUGE,OIL

29

04020-01434

PIN,DOWEL
