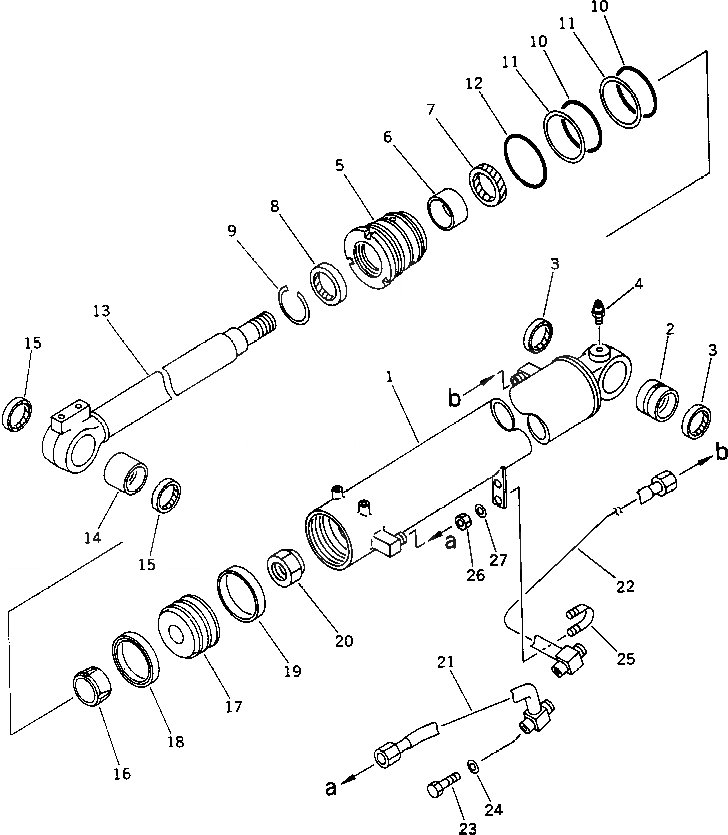

Запчасти Komatsu PC50UU-1 ЦИЛИНДР СТРЕЛЫ(ДЛЯ КОРОТК. REACH СПЕЦ-Я.)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

G-1

20U-63-X2160

BOOM CYLINDER GROUP

|1

20U-63-02160

CYLINDER ASS'Y

1

20U-63-56340

CYLINDER

2

07144-10505

BUSHING

3

07145-00050

SEAL,DUST (KIT)

4

07020-00000

FITTING,GREASE

5

707-29-10330

HEAD,CYLINDER

6

07177-05530

BUSHING

7

707-51-55211

PACKING,ROD (KIT)

8

707-56-55510

SEAL,DUST (KIT)

9

07179-12069

RING,SNAP

10

07000-12095

O-RING (KIT)

11

07146-02096

RING,BACK-UP (KIT)

12

07000-02100

O-RING (KIT)

13

20U-63-56320

ROD,PISTON

14

07143-10505

BUSHING

15

07145-00050

SEAL,DUST (KIT)

16

707-71-60640

PLUNGER

17

707-36-10340

PISTON

18

707-44-10180

RING,PISTON (KIT)

19

07156-01012

RING,WEAR (KIT)

20

07165-13638

NUT,NYLON

21

20U-63-56370

TUBE

22

20U-63-56280

TUBE

23

01010-51020

BOLT

24

01643-31032

WASHER

25

07283-22236

CLIP

26

01599-01011

NUT

27

01643-31032

WASHER

K

707-98-34120

SERVICE KIT

|28

07145-00050

SEAL,DUST

|28

707-51-55211

PACKING,ROD

|28

707-56-55510

SEAL,DUST

|28

07000-12095

O-RING

|28

07146-02096

RING,BACK-UP

|28

07000-02100

O-RING

|28

707-44-10180

RING,PISTON

|28

07156-01012

RING,WEAR
