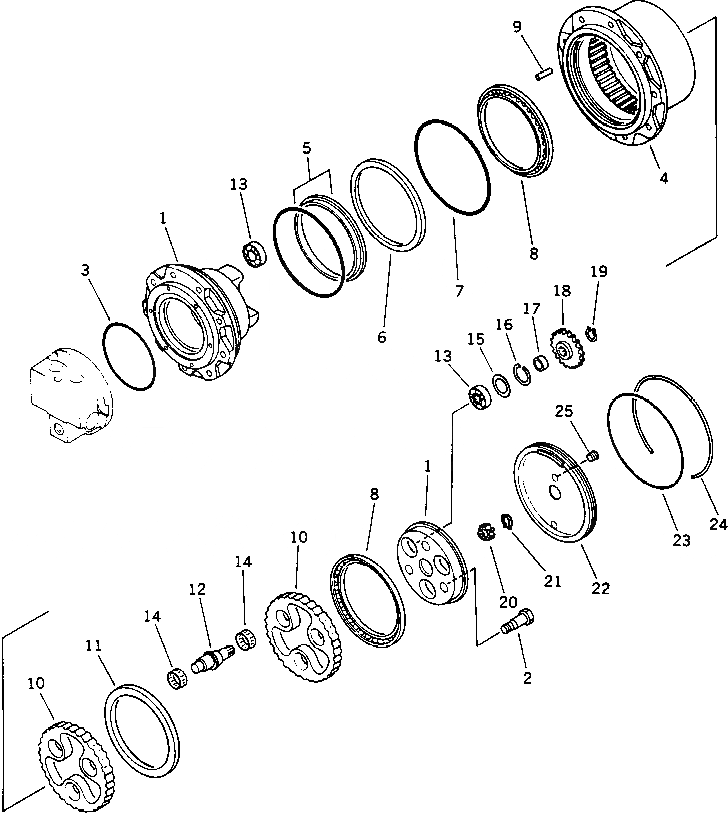

Запчасти Komatsu PC50UU-1 МОТОР ХОДА (/)(№-9) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

20U-60-12200

TRAVEL MOTOR ASS'Y

|1

20U-60-12100

TRAVEL MOTOR ASS'Y

|1

TZ500B1102-00

SPINDLE KIT

1

TZ500B1132-00

SPINDLE ASS'Y

2

TZ550A1019-00

BOLT,REAMER

3

07000-12130

O-RING (K1)

4

TZ550A1001-00

HUB

5

TZES100-178-8

SEAL,FLOATING (K1)

6

TZ550A1010-01

PIECE,DISTANCE

|6

TZ550A1010-00

PIECE,DISTANCE

7

07000-15210

O-RING (K1)

8

TZ550A1021-00

BEARING,BALL

9

TZ550A1017-00

PIN

|10

TZ550A1104-01

RV GEAR ASS'Y

10

TZ550A1204-00

RV GEAR KIT (2 PIS)

11

TZ550A1011-00

SPACER

12

TZ550A1009-00

SHAFT,CRANK

13

TZ550A1022-01

BEARING,ROLLER

14

TZ550A1023-01

BEARING,ROLLER

15

TZ550A1013-00

PIECE (20 KINDS)

16

04065-04518

RING,SNAP

17

TZ550A1014-00

PIECE,DISTANCE

18

TZ547A1107-00

SPUR GEAR KIT (3 PIS)

19

04064-02212

RING,SNAP

20

TZ547A1006-00

GEAR,INPUT

21

04064-01410

RING,SNAP

22

TZ550A1008-00

COVER

23

TZJW1516-G44-9

O-RING (K1)

24

TZ550A1018-00

RING

25

TZGM3-8

PLUG

K1

TZ500B9000-00

SEAL KIT

|26

TZJB2401-P22-9

O-RING

|26

07000-12012

O-RING

|26

TZ15Z-17-35-8

SEAL,OIL

|26

07000-12020

O-RING

|26

07000-12130

O-RING

|26

TZES100-178-8

SEAL,FLOATING

|26

07000-15210

O-RING

|26

TZJW1516-G44-9

O-RING
