Запчасти Komatsu PC50UU-1 6-СЕКЦИОНН. КЛАПАН (/) (РУКОЯТЬ¤ ХОД¤ КОВШ¤ СТРЕЛА¤ OFFSET) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

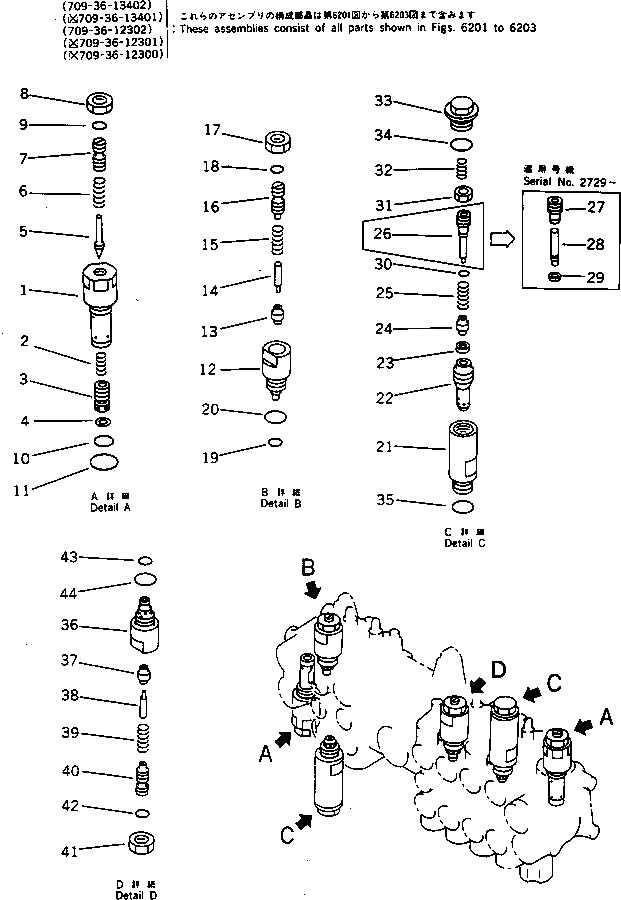

Схема запчастей Komatsu PC50UU-1 - 6-СЕКЦИОНН. КЛАПАН (/) (РУКОЯТЬ¤ ХОД¤ КОВШ¤ СТРЕЛА¤ OFFSET) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

709-36-13402

VALVE ASS'Y

|1

709-36-13401

VALVE ASS'Y

|1

709-36-12302

VALVE ASS'Y

|1

709-36-12301

VALVE ASS'Y

|1

709-36-12300

VALVE ASS'Y

|1

700-26-52000

VALVE ASS'Y,RELIEF

1

SLEEVE

2

700-20-51430

SPRING

3

VALVE

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|12

709-30-65800

VALVE ASS'Y,SAFETY

12

SLEEVE

13

POPPET

|13

POPPET

14

PISTON

15

SPRING

|15

SPRING

16

SCREW

17

NUT

18

O-RING

19

709-32-11840

O-RING

20

07002-02034

O-RING

|21

709-30-63602

VALVE ASS'Y,SUCTION AND SAFETY

|21

709-30-63200

VALVE ASS'Y,SUCTION AND SAFETY

21

709-30-62110

SLEEVE

22

VALVE

|22

VALVE

23

SEAL

24

POPPET

|24

POPPET

25

SPRING

|25

SPRING

26

PISTON

27

SCREW

28

PISTON

29

SEAL

30

O-RING

31

NUT

32

700-20-62170

SPRING

33

709-30-62150

PLUG

34

07002-12034

O-RING

35

07002-02034

O-RING

|36

709-30-65800

VALVE ASS'Y,SAFETY

|36

709-30-65900

VALVE ASS'Y,SAFETY

|36

709-30-65800

VALVE ASS'Y,SAFETY

|36

709-30-65900

VALVE ASS'Y,SAFETY

36

SLEEVE

37

POPPET

|37

POPPET

38

PISTON

39

SPRING

|39

SPRING

|39

SPRING

|39

SPRING

40

SCREW

41

NUT

42

O-RING

43

709-32-11840

O-RING

44

07002-02034

O-RING

Выбрано товаров: 66
