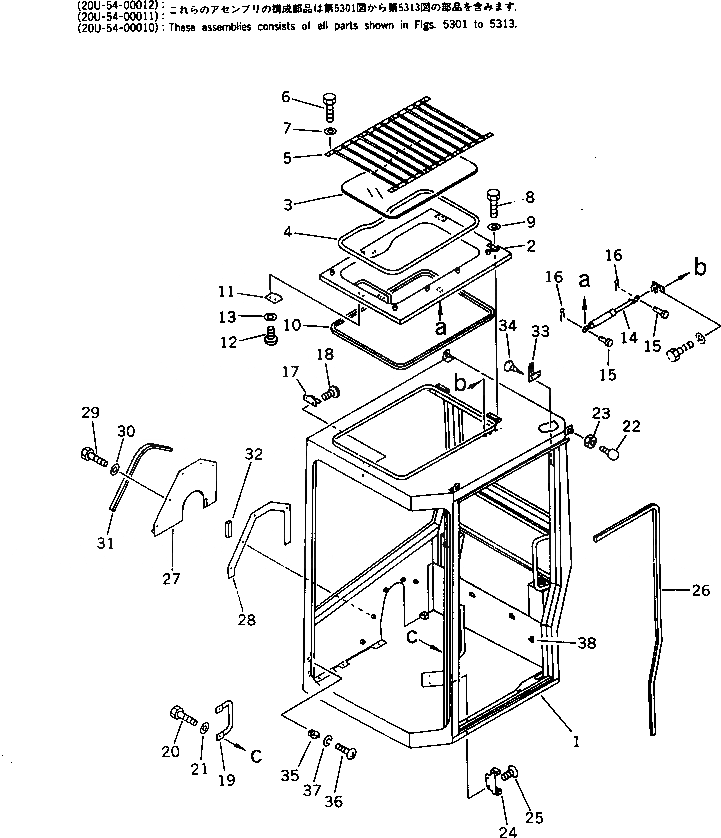

Запчасти Komatsu PC50UU-1 КАБИНА (/7) ЧАСТИ КОРПУСА

|1

20U-54-00012

OPERATOR'S CAB ASS'Y

|1

20U-54-00011

OPERATOR'S CAB ASS'Y

|1

20U-54-00010

OPERATOR'S CAB ASS'Y

1

CAB

|1

CAB

|1

CAB

2

21W-54-14512

COVER

|2

21W-54-14511

COVER

3

21W-54-14580

PLATE

4

21W-54-14590

STRIP

5

20U-54-12252

GUARD

|5

20U-54-12251

GUARD

6

01010-50616

BOLT

7

01643-30623

WASHER

8

01010-50816

BOLT

9

01643-30823

WASHER

10

09412-10024

SEAL

11

203-54-11310

HOOK

12

01220-40412

SCREW

13

01641-20405

WASHER

14

205-54-63650

GAS SPRING ASS'Y

15

04205-10825

PIN

16

04050-12012

PIN,COTTER

17

203-54-11290

CATCHER

18

01225-40412

SCREW

19

21W-54-14941

HANDRAIL

|19

21W-54-14940

HANDRAIL

20

01010-51020

BOLT

21

01643-31032

WASHER

22

21W-54-14890

STOPPER

|22

09453-00002

STOPPER

23

01580-11210

NUT

24

205-54-71731

STRIKER

25

203-54-43590

SCREW

26

21W-54-14230

TRIM,3800MM

27

20U-54-14121

COVER

|27

20U-54-14120

COVER

28

21W-54-14950

PACKING

29

01010-51016

BOLT

30

01643-31032

WASHER

31

09412-00040

SEAL

32

09412-00010

SEAL

33

205-54-51250

HANGER

34

01381-10416

SCREW

35

20U-54-12280

CLIP

36

01220-40512

SCREW

37

01601-20513

WASHER,SPRING

38

08051-00801

CLIP
