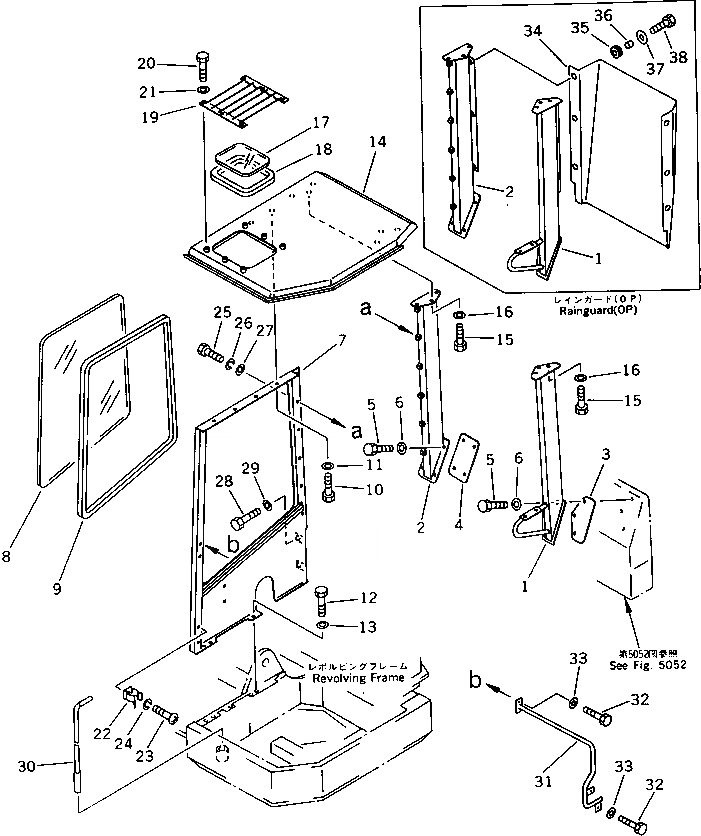

Запчасти Komatsu PC50UU-1 НАВЕС(№-) ЧАСТИ КОРПУСА

1

20U-54-12121

POLE,L.H.

|1

20U-54-12440

POLE,L.H. (RAIN GUARD) (OP)

2

20U-54-12131

POLE,R.H.

|2

20U-54-12450

POLE,R.H. (RAIN GUARD) (OP)

3

20U-54-12260

GASKET

4

20U-54-12270

GASKET

5

01010-51030

BOLT

6

01643-31032

WASHER

7

20U-54-12161

GUARD

8

20U-54-12141

PLATE

9

20U-54-12151

STRIP,WEATHER

10

01010-50820

BOLT

11

01643-30823

WASHER

12

01010-51025

BOLT

13

01643-31032

WASHER

14

20U-54-12173

ROOF

|14

20U-54-12172

ROOF

15

01010-51025

BOLT

16

01643-31032

WASHER

17

20U-54-12231

PLATE

|17

20U-54-12230

COVER

18

20U-54-12241

STRIP,WEATHER

|18

20U-54-12240

STRIP,WEATHER

19

20U-54-12251

GUARD

|19

20U-54-12250

GUARD

20

01010-50616

BOLT

|20

01010-50616

BOLT

21

01643-30623

WASHER

|21

01643-30623

WASHER

22

20U-54-12280

CLIP

23

01220-40512

SCREW

24

01601-20513

WASHER,SPRING

25

01010-50820

BOLT

26

01602-20825

WASHER,SPRING

27

01643-30823

WASHER

28

01010-51025

BOLT

29

01643-31032

WASHER

30

20U-54-12180

PIN

31

20U-43-11611

GUARD

|31

20U-43-14190

GUARD,(FOR 6WAY CONTROL)

32

01010-51025

BOLT

33

01643-31032

WASHER

34

20U-54-12410

PLATE,(RAIN GUARD) (OP)

35

08037-02512

GROMMET,(RAIN GUARD) (OP)

36

20U-54-12420

SPACER,(RAIN GUARD) (OP)

37

20U-54-12430

WASHER,(RAIN GUARD) (OP)

38

01010-50830

BOLT,(RAIN GUARD) (OP)
