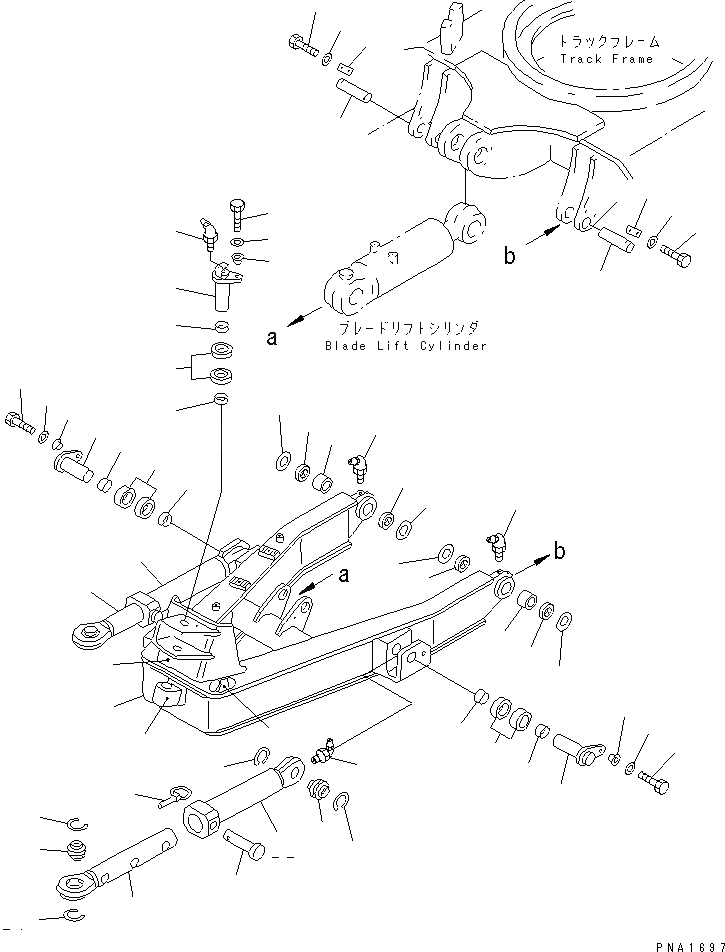

Запчасти Komatsu PC50UD-2 ОТВАЛ (РАМА) (НАКЛОНЯЕМ. МЕХАНИЧ. ANGLE) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20U-910-0021

FRAME ASS'Y

|1

20U-910-0020

FRAME ASS'Y

1

FRAME

2

101-71-12140

PIN (WELDED)

3

101-71-12150

COLLAR (WELDED)

4

20U-910-2220

BRACKET (WELDED)

5

20T-71-81140

BUSHING

|5

07144-10304

BUSHING

6

20U-910-1231

PIN

7

20S-70-31180

SPACER

8

01010-81225

BOLT

|8

01010-51225

BOLT

9

01643-31232

WASHER

10

07020-00675

FITTING,GREASE

11

20U-910-1280

COLLAR

12

20U-910-1290

BUSHING

13

20U-910-1241

PIN

14

20S-70-31180

SPACER

15

01010-81230

BOLT

|15

01010-51230

BOLT

16

01643-31232

WASHER

17

104-72-21990

BUSHING

18

104-72-21960

COLLAR

19

07020-00675

FITTING,GREASE

20

07145-00035

SEAL,DUST

21

20U-910-1310

ROD ASS'Y

22

20U-910-1330

BRACE

23

07020-00900

FITTING,GREASE

24

20U-910-1351

PIN

25

421-46-12740

PIN,LINCH

26

104-72-21920

BEARING

27

04067-00055

RING,SNAP

28

20S-70-71240

PIN

29

04082-00212

LOCK

30

01010-81230

BOLT

31

01643-31232

WASHER

32

20T-70-81720

SPACER¤ 1.0MM

|32

20R-70-11270

SPACER¤ 1.0MM
