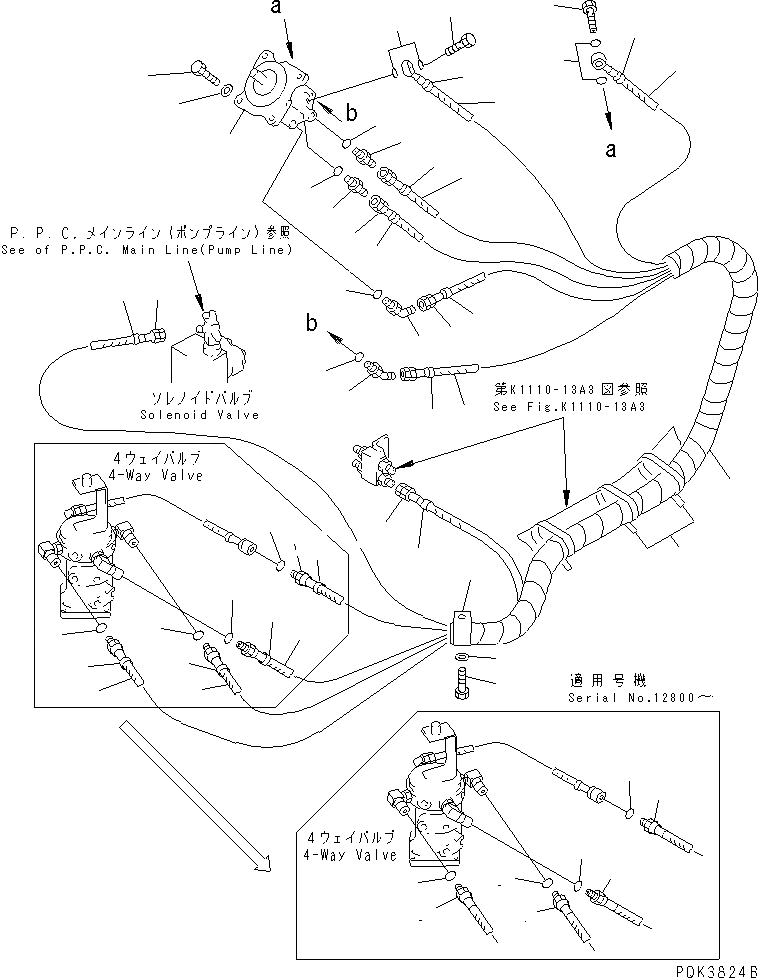

Запчасти Komatsu PC50UD-2 ОСНОВН. КОНСТРУКЦИЯ (ТРУБЫ ЛЕВ.) (MULTIPLE PATTERN УПРАВЛ-Е) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

702-16-01181

PILOT VALVE

|1

702-16-01180

PILOT VALVE,(SEE FIG.Y1670-11A1)

|1

702-16-01091

PILOT VALVE,(SEE FIG.Y1670-11A0)

2

01010-80820

BOLT

3

01643-30823

WASHER

4

20U-62-23810

HOSE¤ 1255MM,ORANGE

5

20U-62-22190

O-RING

6

20U-62-23820

HOSE¤ 1220MM,GREEN

7

20U-62-22190

O-RING

8

20U-62-23830

HOSE¤ 1275MM,BROWN OR WHITE

9

20U-62-22190

O-RING

10

20U-62-26150

HOSE¤ 1755MM,RED-GREEN

|10

20U-62-23840

HOSE¤ 1855MM

11

20U-62-23850

HOSE¤ 1115MM,BLUE-WHITE

12

203-62-57950

MARK¤ 5

|12

20T-62-71750

MARK¤ 5

13

203-62-57960

MARK¤ 6

|13

20T-62-71760

MARK¤ 6

14

203-62-57970

MARK¤ 7

|14

20T-62-71770

MARK¤ 7

15

203-62-57980

MARK¤ 8

|15

20T-62-71780

MARK¤ 8

16

203-62-58170

MARK¤ P2

17

203-62-58220

MARK¤ T2

18

203-62-58650

COVER

19

702-16-53240

PLUG

20

203-62-57730

BOLT,EYE

21

07000-02018

O-RING

22

07230-20210

UNION

23

07236-10210

ELBOW

24

07002-01423

O-RING

25

281-01-13180

CLIP

26

01010-81020

BOLT

27

01643-31032

WASHER

28

08034-00536

BAND
