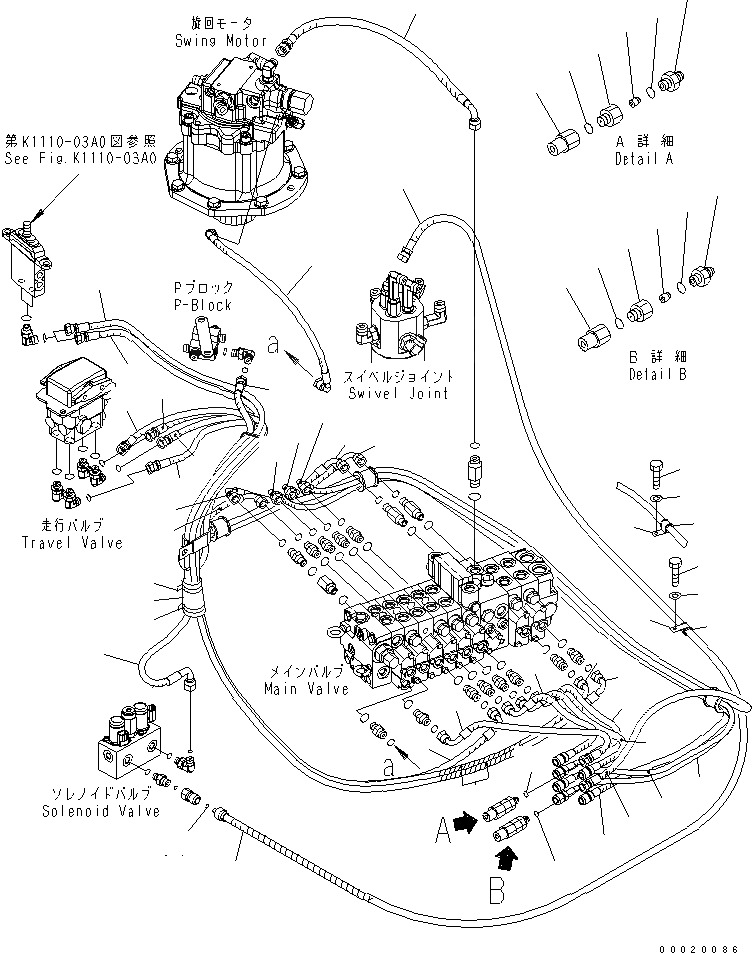

Запчасти Komatsu PC50MR-2 P.P.C. ОСНОВН. ЛИНИЯ (ДЛЯ СТРАН ЕС) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
1
22M-62-21131
HOSE, 1380MM,WHITE, BLUE
1
21U-62-34770
BAND, WHITE
1
21U-62-34750
BAND, BLUE
2
22M-62-21211
HOSE, 1250MM,WHITE, RED
2
21U-62-34770
BAND, WHITE
2
21U-62-34760
BAND, RED
3
22M-62-21251
HOSE, 1440MM,BLACK, YELLOW
3
21U-62-34720
BAND, BLACK
3
21U-62-34710
BAND, YELLOW
4
22M-62-21261
HOSE, 1450MM,BROWN, YELLOW
4
21U-62-34780
BAND, BROWN
4
21U-62-34710
BAND, YELLOW
5
22M-62-21172
HOSE, 1360MM,GREEN, YELLOW
5
21U-62-34730
BAND, GREEN
5
21U-62-34710
BAND, YELLOW
6
22M-62-21182
HOSE, 1280MM,ORANGE, YELLOW
6
21U-62-34740
BAND, ORANGE
6
21U-62-34710
BAND, YELLOW
7
08210-01202
SPIRAL TUBE
8
22M-62-21120
HOSE, 550MM,BROWN
8
21U-62-34780
BAND, BROWN
9
22M-62-21150
HOSE, 430MM,GREEN
9
21U-62-34730
BAND, GREEN
10
22M-62-21160
HOSE, 450MM,BLUE
10
21U-62-34750
BAND, BLUE
11
22M-62-21160
HOSE, 450MM,YELLOW
11
21U-62-34710
BAND, YELLOW
|$34
21W-60-42200
VALVE ASS'Y
12
20T-60-82320
POPPET
13
21W-62-42870
NIPPLE
14
21W-62-42950
NIPPLE
15
07002-11423
O-RING
16
07002-11423
O-RING
17
02896-11008
O-RING
18
21W-62-42940
NIPPLE
19
22M-62-21190
HOSE, 1220MM,WHITE
19
21U-62-34770
BAND, WHITE
20
22M-62-21220
HOSE, 1160MM,RED
20
21U-62-34760
BAND, RED
21
22M-62-21230
HOSE, 1060MM,ORANGE
21
21U-62-34740
BAND, ORANGE
22
22M-62-21240
HOSE, 1090MM,BLACK
22
21U-62-34720
BAND, BLACK
|$52
21W-60-42200
VALVE ASS'Y
23
20T-60-82320
POPPET
24
21W-62-42870
NIPPLE
25
21W-62-42950
NIPPLE
26
07002-11423
O-RING
27
07002-11423
O-RING
28
02896-11008
O-RING
29
21W-62-42940
NIPPLE
30
22M-62-23941
HOSE
31
22M-62-22640
HOSE, 550MM
32
22M-62-23470
HOSE, 500MM
33
22M-62-23921
HOSE
34
20U-62-22190
O-RING
35
07095-20211
CUSHION
36
04434-51710
CLIP
37
01010-81016
BOLT
38
01643-31032
WASHER
39
07095-20213
CUSHION
40
04434-51910
CLIP
41
01010-81016
BOLT
42
01643-31032
WASHER
43
20U-62-26170
SEAT
44
08034-20823
BAND
Выбрано товаров: 66
