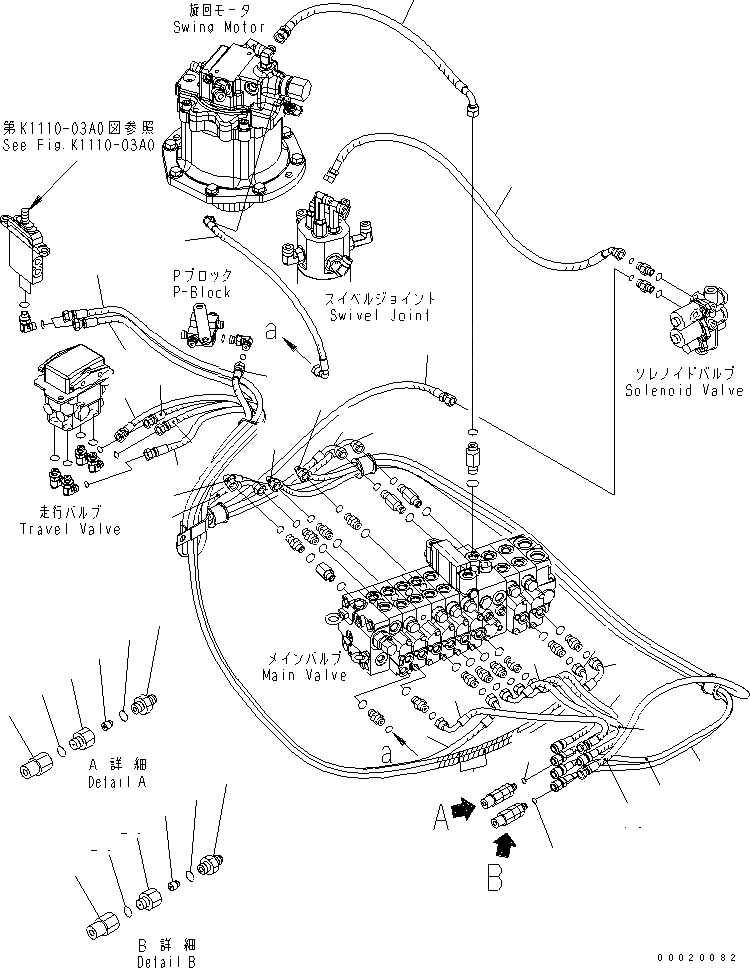

Запчасти Komatsu PC50MR-2 P.P.C. ОСНОВН. ЛИНИЯ (ДЛЯ УДЛИНН. РУКОЯТИ) ГИДРАВЛИКА

1

22M-62-21131

HOSE, 1380MM,WHITE, BLUE

1

21U-62-34770

BAND, WHITE

1

21U-62-34750

BAND, BLUE

2

22M-62-21211

HOSE, 1250MM,WHITE, RED

2

21U-62-34770

BAND, WHITE

2

21U-62-34760

BAND, RED

3

22M-62-21251

HOSE, 1440MM,BLACK, YELLOW

3

21U-62-34720

BAND, BLACK

3

21U-62-34710

BAND, YELLOW

4

22M-62-21261

HOSE, 1450MM,BROWN, YELLOW

4

21U-62-34780

BAND, BROWN

4

21U-62-34710

BAND, YELLOW

5

22M-62-21172

HOSE, 1360MM,GREEN, YELLOW

5

21U-62-34730

BAND, GREEN

5

21U-62-34710

BAND, YELLOW

6

22M-62-21182

HOSE, 1280MM,ORANGE, YELLOW

6

21U-62-34740

BAND, ORANGE

6

21U-62-34710

BAND, YELLOW

7

08210-01202

SPIRAL TUBE

8

22M-62-21120

HOSE, 550MM,BROWN

8

21U-62-34780

BAND, BROWN

9

22M-62-21150

HOSE, 430MM,GREEN

9

21U-62-34730

BAND, GREEN

10

22M-62-21160

HOSE, 450MM,BLUE

10

21U-62-34750

BAND, BLUE

11

22M-62-21160

HOSE, 450MM,YELLOW

11

21U-62-34710

BAND, YELLOW

|$35

21W-60-42200

VALVE ASS'Y

12

20T-60-82320

POPPET

13

21W-62-42870

NIPPLE

14

21W-62-42950

NIPPLE

15

07002-11423

O-RING

16

07002-11423

O-RING

17

02896-11008

O-RING

18

21W-62-42940

NIPPLE

19

22M-62-21190

HOSE, 1220MM,WHITE

19

21U-62-34770

BAND, WHITE

20

22M-62-21220

HOSE, 1160MM,RED

20

21U-62-34760

BAND, RED

21

22M-62-21240

HOSE, 1090MM,BLACK

21

21U-62-34720

BAND, BLACK

|$51

21W-60-42200

VALVE ASS'Y

22

20T-60-82320

POPPET

23

21W-62-42870

NIPPLE

24

21W-62-42950

NIPPLE

25

07002-11423

O-RING

26

07002-11423

O-RING

27

02896-11008

O-RING

28

21W-62-42940

NIPPLE

29

22M-62-23440

HOSE

30

22M-62-22640

HOSE, 550MM

31

22M-62-23470

HOSE, 500MM

32

22M-62-22650

HOSE, 800MM
