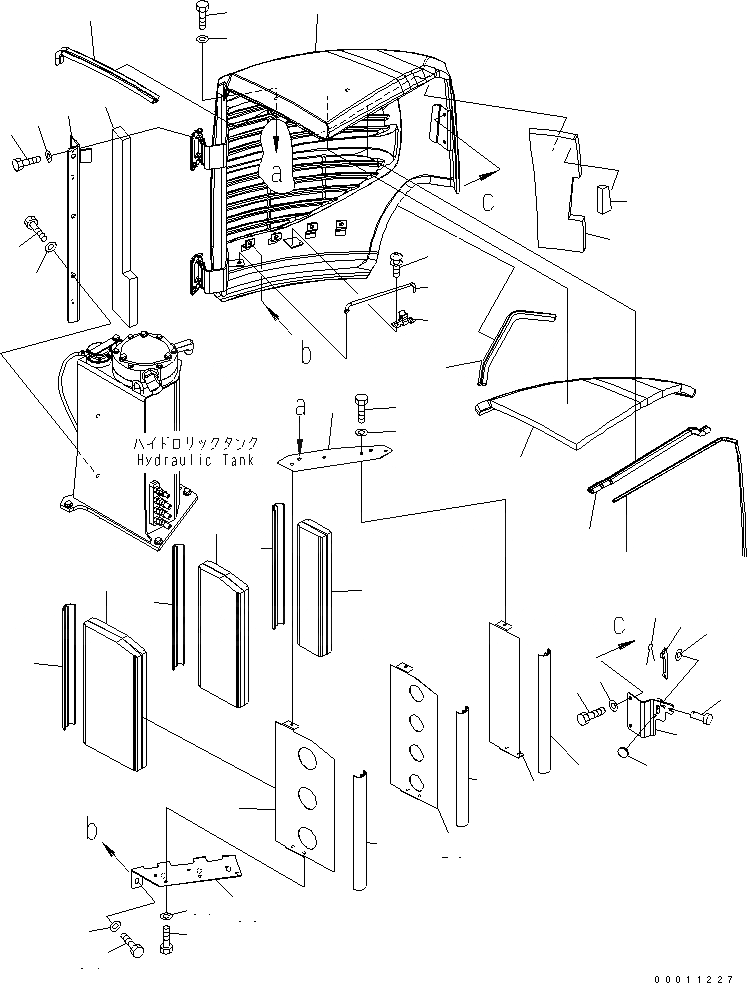

Запчасти Komatsu PC50MR-2 БОКОВ. КРЫШКА (ПРАВ.) (/)(№-9) ЧАСТИ КОРПУСА

|$2

22M-54-21203

COVER ASS'Y

1

COVER

2

22M-54-21251

BRACKET

3

01010-81020

BOLT

4

01643-31032

WASHER

5

22M-54-21852

PLATE

6

04205-10620

PIN

7

04050-11612

PIN,COTTER

8

01602-20619

WASHER

9

203-54-32260

STOPPER

10

20Y-54-29231

BAR

11

20B-54-12210

SPRING

12

01023-10406

SCREW

13

22M-54-23530

SHEET

14

22M-54-23520

SHEET

15

22M-54-21222

SEAL

16

22M-54-21231

SEAL

17

22M-54-21241

SEAL

18

22M-54-23541

SHEET

19

22M-54-23560

SEAL

20

22M-03-22841

PLATE ASS'Y

21

22M-03-22481

SHEET

22

22M-03-22210

COVER

23

22M-03-22220

COVER

24

22M-03-22831

PLATE ASS'Y

25

22M-03-22491

SHEET

26

22M-03-22210

COVER

27

22M-03-22220

COVER

28

22M-03-22812

PLATE ASS'Y

29

22M-03-22471

SHEET

30

22M-03-22210

COVER

31

22M-03-22260

COVER

32

22M-03-22641

PLATE

33

22M-03-22882

BRACKET

34

01010-81020

BOLT

35

01643-31032

WASHER

36

01010-80816

BOLT

37

01643-30823

WASHER

38

01010-81225

BOLT

39

01643-31232

WASHER

40

22M-54-21271

BRACKET

41

01010-81225

BOLT

42

01643-31232

WASHER

43

22M-03-21640

SHEET
