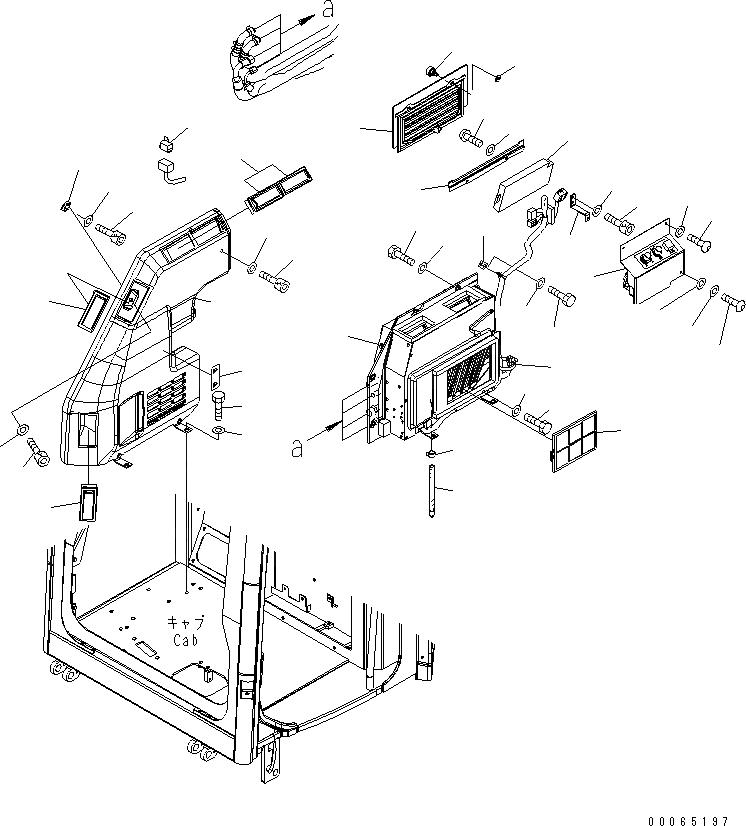

Запчасти Komatsu PC50MR-2 КАБИНА (КОНДИЦ.) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

22M-979-2112

AIR CONDITIONER UNIT,(SEE FIG. Y1979-02A0)

1

22M-979-2111

AIR CONDITIONER UNIT,(SEE FIG. Y1979-02A0)

2

01010-D0816

BOLT

3

01643-70823

WASHER

4

01010-D1025

BOLT

5

01643-71032

WASHER

6

22M-979-2440

HOSE

7

11Y-09-11130

CLAMP

7

11Y-09-11150

CLIP

8

22M-979-2290

CONNECTOR

9

22M-979-2141

CONTROL PANEL,(SEE FIG. Y1979-02A0)

10

22M-979-2151

BRACKET

11

01252-70612

BOLT

12

01643-30623

WASHER

13

01245-00612

SCREW

14

01643-30623

WASHER

15

22M-979-2480

PLATE

16

01010-D0816

BOLT

17

01643-70823

WASHER

18

01245-00616

SCREW

19

01643-31032

WASHER

20

08034-40521

BAND

21

22M-979-2120

DUCT

22

01010-D1025

BOLT

23

01643-71032

WASHER

24

01252-70612

BOLT

25

01643-30623

WASHER

26

22M-54-25591

PLATE

27

01252-70612

BOLT

28

01643-30623

WASHER

29

22M-979-2460

LOUVER

30

22M-979-2370

FILTER

31

22B-979-1740

FILTER

32

22M-979-2181

PLATE

33

01245-00612

SCREW

34

01643-30623

WASHER

35

22M-979-2490

PLATE

36

22M-979-2161

COVER ASS'Y

37

22M-979-2390

BOLT

38

22M-979-2430

PLATE
