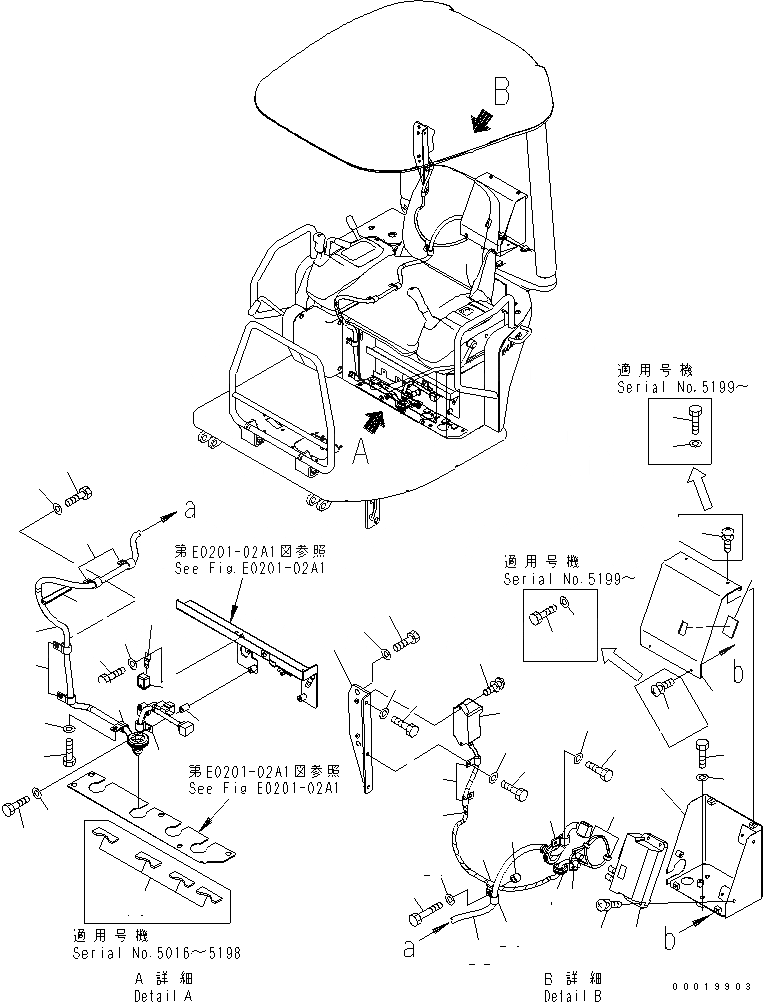

Запчасти Komatsu PC50MR-2-AC KOMTRAX (ДЛЯ НАВЕСА) ЭЛЕКТРИКА

|1

22M-06-25150

COVER ASS'Y

1

22M-06-25170

COVER

2

22M-06-25190

PLATE

3

01010-D0612

BOLT

4

01643-70623

WASHER

|4

01023-30612

SCREW

5

22M-06-25160

COVER

6

01010-D1035

BOLT

7

01643-71032

WASHER

8

08037-02512

GROMMET

9

22M-06-25210

PLATE

10

01010-D0816

BOLT

11

01643-70823

WASHER

12

7826-20-6010

CONTROLLER

13

01023-10625

SCREW

14

7826-20-9700

BOX ASS'Y

15

01023-10630

SCREW

16

363-06-31130

RELAY

17

04434-51008

CLIP

18

01010-D0816

BOLT

19

01643-70823

WASHER

20

08017-30726

CONDUIT

21

22M-06-25240

SEAL

22

22M-06-25110

WIRING HARNESS

23

04434-51710

CLIP

24

01010-D1016

BOLT

25

01643-71032

WASHER

26

01010-D1040

BOLT

27

01643-71032

WASHER

28

08034-20834

BAND

29

04434-51010

CLIP

30

22M-60-22130

COLLAR

31

04434-51708

CLIP

32

01010-D0816

BOLT

33

01643-70823

WASHER

34

195-979-3510

SPACER

35

287-06-16420

BRACKET

36

01010-D0610

BOLT

37

01643-70623

WASHER

38

01010-D0840

BOLT

39

01643-70823

WASHER

40

22M-54-23420

SHEET
