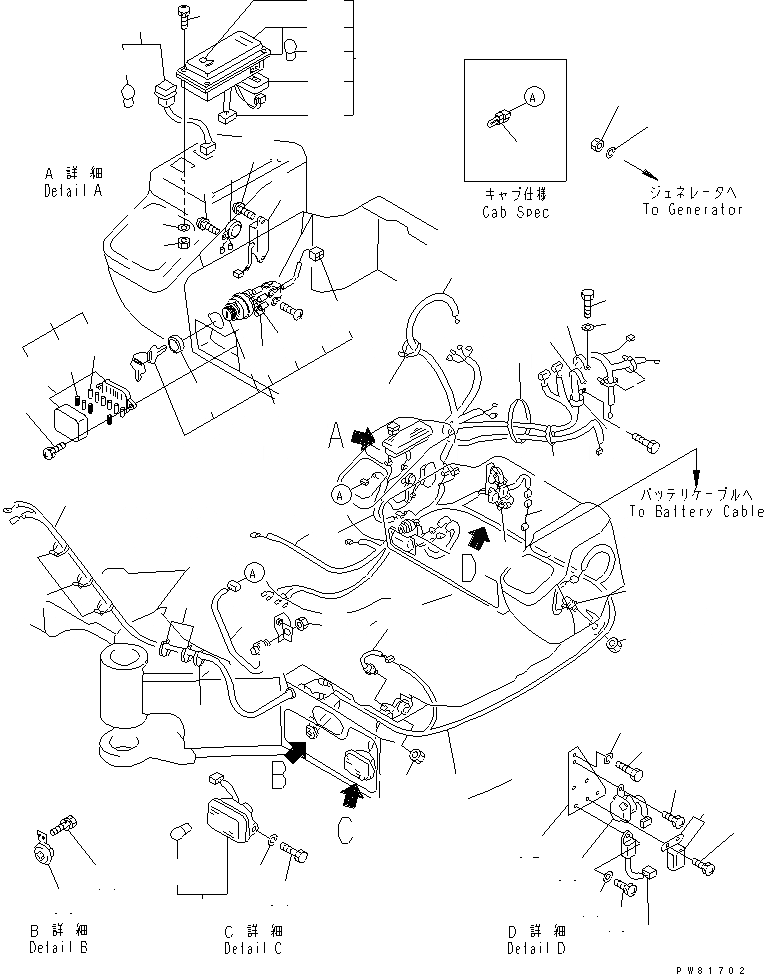

Запчасти Komatsu PC50FR-2 ЭЛЕКТРИЧ. Э/ПРОВОДКА И ЧАСТИ ЭЛЕКТРИКА

1

YM172976-16500

HARNESS

2

YM172964-16512

HARNESS

3

YM172164-16523

HARNESS

4

YM172151-16531

WIRE,LEAD

5

YM172190-16500

HARNESS

6

YM172126-16540

CLAMP

7

YM172137-16560

BAND

8

YM172422-16550

LINK,FUSIBLE

9

YM194250-51660

BAND

10

YM1A1380-58050

GROMMET

11

YM22217-050000

WASHER

12

YM22217-100000

WASHER

13

YM26116-100162

BOLT

14

YM26716-050002

NUT

15

YM933152-09280

BAND

16

YM172151-17100

LAMP,CHECKER

17

YM172162-17101

BOX ASS'Y,INDICATOR

18

YM172162-17270

COVER,FRONT

21

YM172162-17240

FO METER ASS'Y,FUEL

22

YM172162-17250

HARNESS

23

YM172162-17120

VALVE

24

YM172162-17130

HOURMETER

25

YM172164-17100

FUSE BOX

26

YM172164-17110

BOX,FUSE

27

YM29420-150000

FUSE

28

YM29420-300000

FUSE

29

YM172141-17150

BUZZER

30

YM172141-17190

SWITCH,WORK LAMP

31

YM172141-17230

BULB

32

YM172164-17250

BRACKET,RELAY

33

YM172162-17410

LAMP ASS'Y,HEAD

34

YM29220-788200

BULB

35

YM129136-77100

RELAY,SAFETY

36

YM119650-77910

RELAY,GLOW

39

YM119632-77922

TIMER

40

YM22137-040000

WASHER

41

YM22137-060000

WASHER

42

YM22217-080000

WASHER

43

YM22217-080000

WASHER

44

YM26013-060122

BOLT

45

YM26022-050162

SCREW

46

YM26022-060122

SCREW

47

YM26022-060122

SCREW

48

YM26022-060122

SCREW

49

YM26022-060162

SCREW

50

YM26022-060202

SCREW

51

YM26116-080162

BOLT

52

YM26116-080202

BOLT

53

YM26589-040202

SCREW

54

YM26716-040002

NUT

55

YM172976-17100

SWITCH ASS'Y,STARTER

56

YM172964-16520

HARNESS,STARTER

58

YM172987-17120

NUT,RING

59

YM172983-16530

TUBE

60

YM26587-040082

SCREW

64

YM172987-16530

PIPE,FUEL

65

YM933110-05300

HORN

66

YM194464-52190

SWITCH,SAFETY START

67

YM26776-180002

NUT,LOCK

68

YM172164-17140

SWITCH,(FOR CAB)

|68

YM172164-17140

SWITCH,(FOR CANOPY)

69

YM26776-160002

NUT,(FOR CAB)

|69

YM26776-160002

NUT,(FOR CANOPY)
