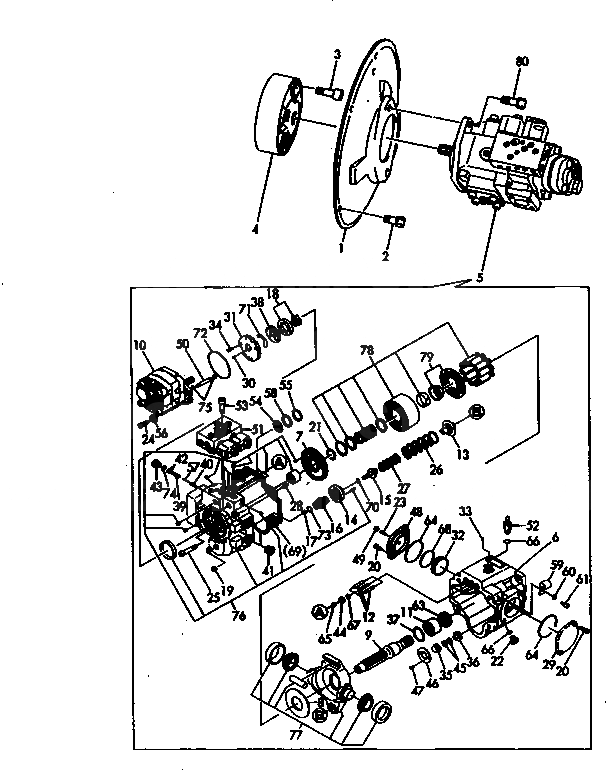

Запчасти Komatsu PC50FR-1 ГИДР. НАСОС. УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

YM172148-71102

COVER,FLYWHEEL

2

YM26013-100252

BOLT

3

YM26450-120402

BOLT

4

YM172165-71200

COUPLING

5

YM172176-73201

PUMP ASS'Y

|5

YM172176-73200

PUMP ASS'Y

6

YM172176-73210

CASE

7

YM172176-73220

PLATE,VALVE

8

YM172176-73230

PLATE,THRUST

9

YM172176-73240

SHAFT

10

YM172176-73250

PUMP,GEAR

11

YM172176-73260

BEARING

12

YM172176-73280

PIN

13

YM172176-73290

SHEET,SPRING

14

YM172176-73300

SHEET,SPRING

15

YM172176-73850

SHEET,SPRING

16

YM172176-73860

BOLT

17

YM172176-73870

SCREW

18

YM172176-73880

ROTOR ASS'Y

19

YM172176-73890

NUT

20

YM172176-73900

BOLT

21

YM172176-73910

WASHER

22

YM172176-73920

PLUG

23

YM172176-73390

SCREW

24

YM172176-73400

BOLT,SOCKET HEAD

25

YM172176-73410

BOLT,SOCKET HEAD

26

YM172176-73420

SPRING

27

YM172176-73430

SPRING

28

YM172176-73440

PIN

29

YM172176-73450

COVER

30

YM172176-73460

PIN

31

YM172176-73480

COVER

32

YM172176-73490

BUSHING

33

YM172176-73500

SCREW

34

YM172176-73510

BOLT,SOCKET HEAD

35

YM172176-73520

STOPPER

36

YM172176-73530

BUSHING

37

YM172176-73540

WASHER

38

YM172176-73550

PLATE

39

YM172176-73560

SPRING

40

YM172176-73570

POPPET

41

YM172176-73580

PLUG,SHIPPING

42

YM172176-73590

SHIM

43

YM172176-73600

PLUG

44

YM172176-73610

BUSH

45

YM172176-73620

SPRING

46

YM172176-73630

PLATE

47

YM172176-73640

SCREW

48

YM172176-73650

COVER

49

YM172176-73660

NUT

50

YM172176-73670

BUSHING

51

YM172176-73680

VALVE

52

YM172176-73690

BREATHER,AIR

53

YM172176-73700

BOLT,SOCKET HEAD

54

YM172176-73710

FILTER

55

YM172176-73720

RING

56

YM172176-73730

WASHER

57

YM172176-73740

PIN

58

YM172176-73750

WASHER

59

YM172176-73760

CLAMP

60

YM172176-73770

WASHER

61

YM172176-73780

BOLT,SOCKET HEAD

62

YM172176-73790

SEAL KIT

63

YM172176-73270

SEAL

64

YM24321-000700

O-RING

65

YM24315-000100

O-RING

66

YM24315-000110

O-RING

67

YM24315-000140

O-RING

68

YM24321-000500

O-RING

69

YM172176-73800

SEAL KIT

70

YM24315-000080

O-RING

71

YM172176-73470

O-RING

72

YM24321-000850

O-RING

73

YM24315-000180

O-RING

74

YM24315-000110

O-RING

75

YM24315-000060

O-RING

76

YM172176-73810

BLOCK KIT

77

YM172176-73820

BLOCK KIT

78

YM172176-73830

CYLINDER BLOCK KIT

79

YM172176-73840

RETAINER KIT

80

YM26013-120352

BOLT
