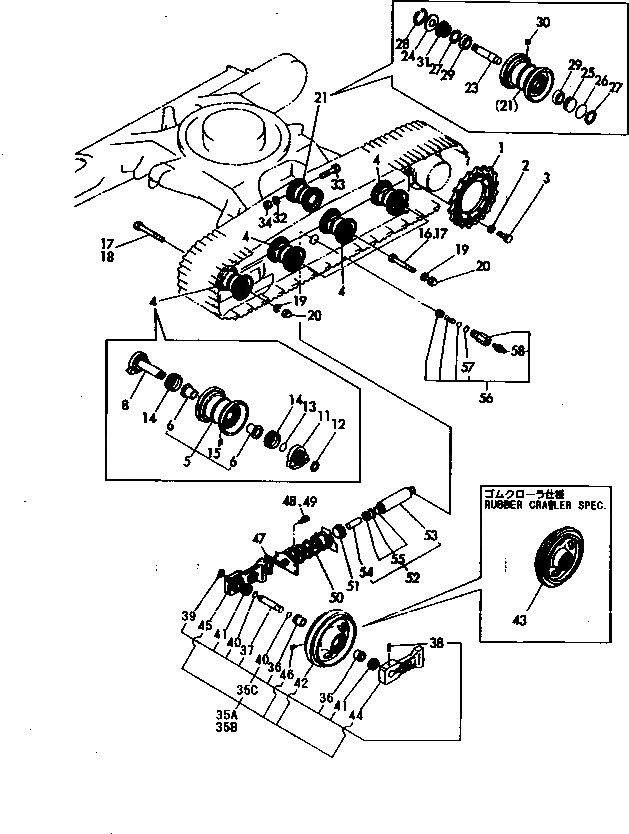

Запчасти Komatsu PC50FR-1 ОПОРНЫЙ КАТОК¤ЗВЕЗДОЧКА¤ПРУЖИНА И ПЕРЕДН. ЛЕНИВЕЦ ПОВОРОТН.¤ КОНЕЧНАЯ ПЕРЕДАЧА И ХОДОВАЯ

1

YM172119-35010

SPROCKET

2

YM22217-140000

WASHER

3

YM26116-140352

BOLT

4

YM772147-37300

ROLLER ASS'Y,TRACK

5

YM172147-37300

ROLLER

6

YM172124-37310

BUSHING

8

YM172147-37320

SHAFT,ROLLER

11

YM172147-37340

COVER,SEAL

12

YM22242-000300

RING

13

YM24321-000350

O-RING

14

YM933112-00400

SEAL

15

YM933171-13691

PLUG

16

YM172113-36050

BOLT

17

YM172113-36050

BOLT,(FOR RUBBER SHOE SPEC.)

18

YM172116-37350

BOLT

19

YM22217-160000

WASHER

20

YM26657-160002

NUT

21

YM772147-37500

ROLLER ASS'Y

23

YM172147-37510

SHAFT

24

YM172124-37520

COVER,SEAL

25

YM172124-37530

COVER

26

YM172124-37540

O-RING

27

YM22252-000620

RING

28

YM22252-000750

CLIP

29

YM24101-062064

BEARING

30

YM933171-13691

PLUG

31

YM933171-13820

SEAL

32

YM22217-120000

WASHER,SPRING

33

YM26116-120652

BOLT

34

YM26716-120002

NUT

35A

YM772124-37100

FRONT IDLER ASS'Y

35B

YM772147-37100

IDLER ASS'Y,(FOR RUBBER SHOE SPEC.)

35C

YM172124-99490

KIT,FRONT IDLER

36

YM172124-37120

BUSHING

37

YM172124-37130

SHAFT

38

YM172124-37160

PIN

39

YM22242-000350

RING

40

YM24321-000350

O-RING

41

YM933112-00500

SEAL

42

YM172124-37100

IDLER ASS'Y

43

YM172147-37100

IDLER,(FOR RUBBER SHOE SPEC.)

44

YM172124-37140

COVER,SEAL

45

YM172124-37150

COVER,SEAL

46

YM933171-13691

PLUG

47

YM17214737700K

PLATE,(FOR RUBBER SHOE SPEC.) (GRAY)

48

YM26013-120402

BOLT

49

YM26013-120502

BOLT,(FOR RUBBER SHOE SPEC.)

50

YM172124-37700

SPRING

51

YM172122-37710

HOLDER,ADJUSTER

52

YM172122-37752

ADJUSTER ASS'Y

53

YM172122-37782

TUBE

54

YM172122-37810

PISTON

55

YM172122-37820

SEAL SET

56

YM172122-37843

VALVE ASS'Y

57

YM24315-000140

O-RING

58

YM24761-020000

FITTING,GREASE
