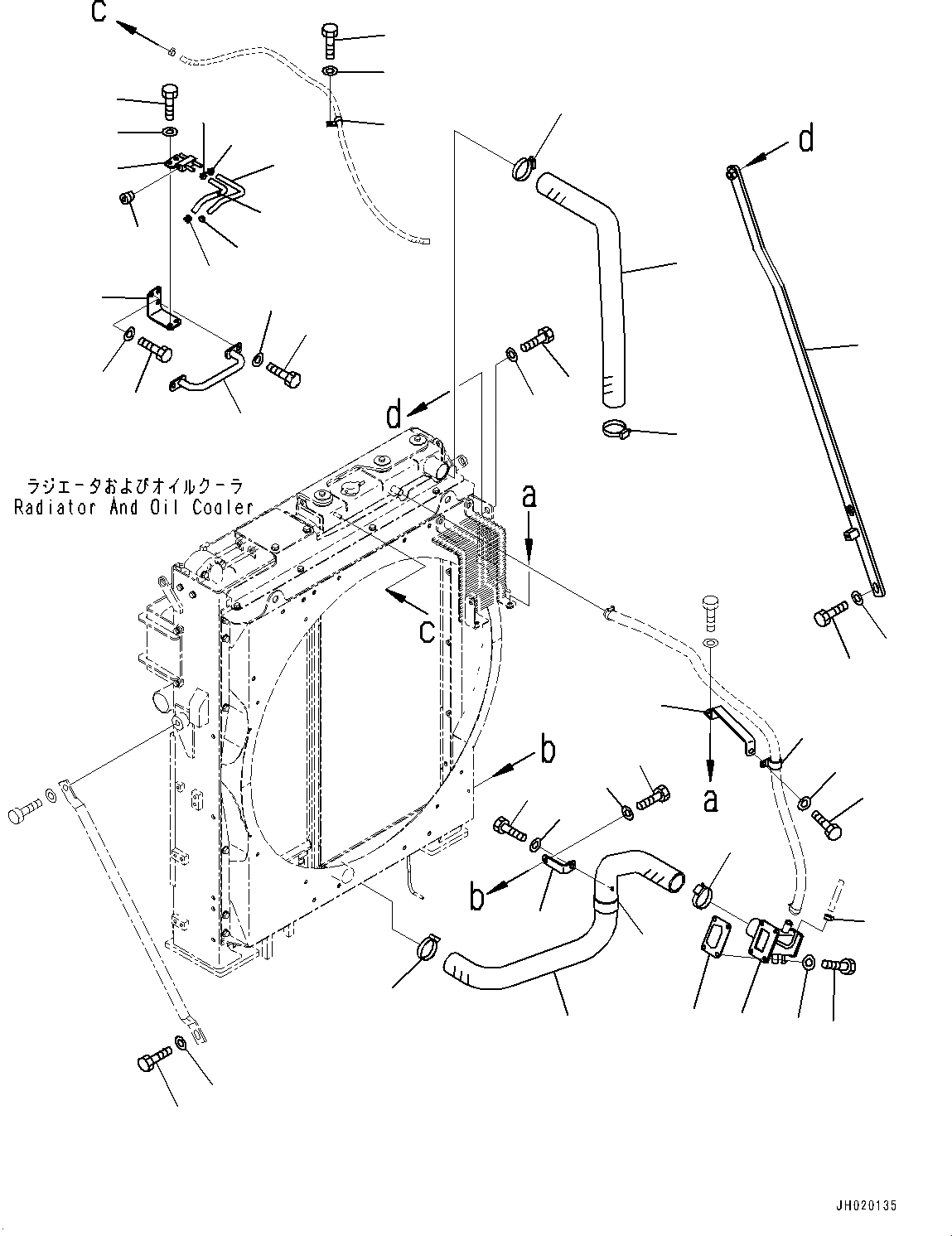

Запчасти Komatsu PC490LC-11 СИСТЕМА ОХЛАЖДЕНИЯ, СТОЙКА (№8-) СИСТЕМА ОХЛАЖДЕНИЯ

1

01010-82045

Bolt

2

154-30-51460

Washer

3

208-03-21380

Stay

4

01010-82045

Bolt

5

01643-32060

Washer

6

154-30-51460

Washer

7

208-03-22432

Connector

8

207-03-31271

Gasket

9

01010-81025

Bolt

10

01643-51032

Washer

11

11Y-09-11140

Clip

12

208-03-41390

Hose

13

07289-00070

Clamp

14

208-03-41411

Hose

15

07289-00070

Clamp

16

207-03-51530

Clip

17

01010-81230

Bolt

18

01643-31232

Washer

19

208-03-41860

Bracket

20

208-03-41881

Bracket

21

04434-53212

Clip

22

01010-81230

Bolt

23

01643-31232

Washer

24

04434-53211

Clip

25

01010-81020

Bolt

26

01643-31032

Washer

27

208-03-41872

Bracket

28

01010-81235

Bolt

29

01643-31232

Washer

30

206-54-21682

Bracket

31

01010-81235

Bolt

32

01643-31232

Washer

33

17A-03-62680

Joint

34

07043-70108

Plug, Taper

35

01010-81230

Bolt

36

01643-31232

Washer

37

208-03-42361

Hose

38

11Y-09-11140

Clip

39

208-03-42380

Hose

40

11Y-09-11140

Clip
