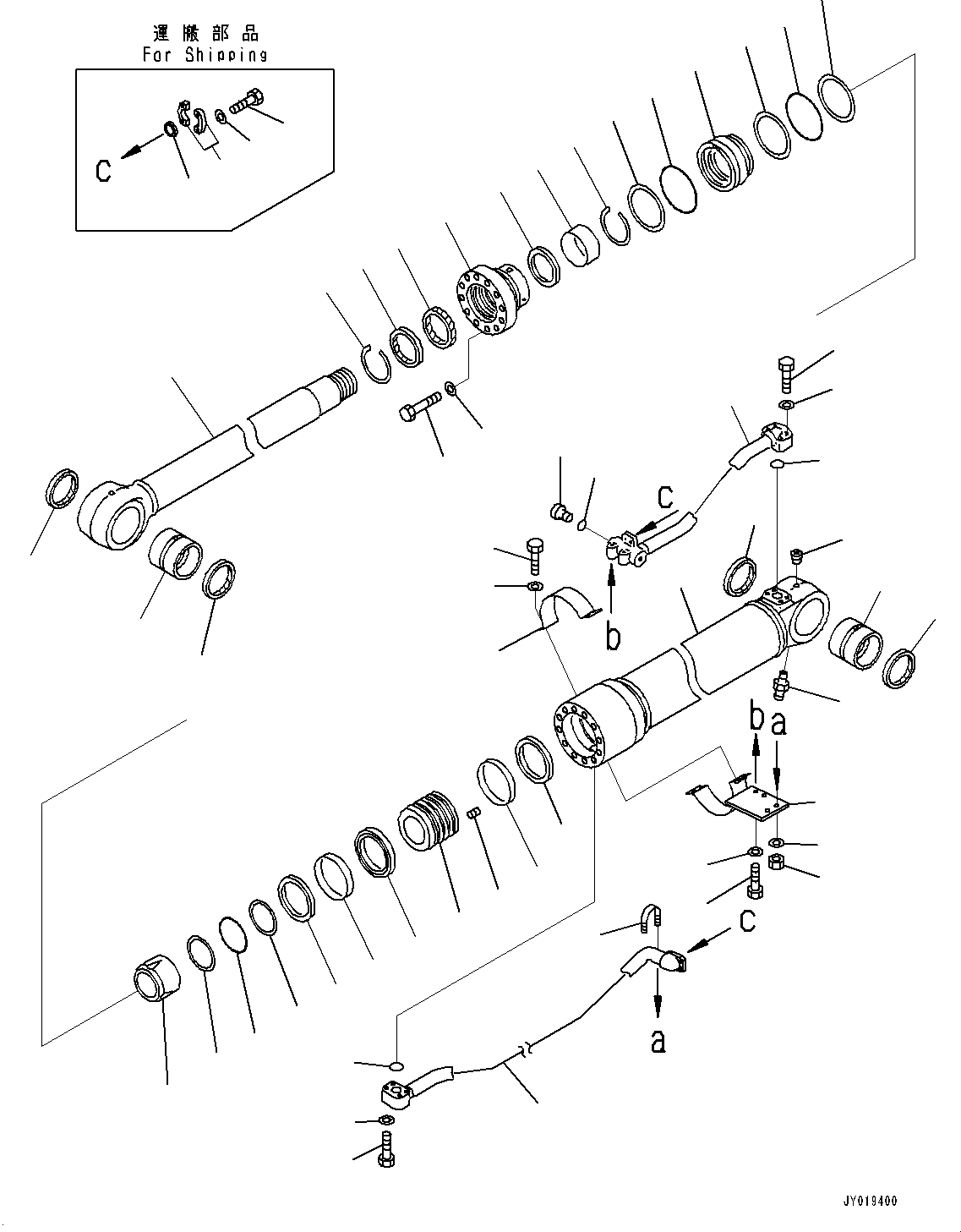

Запчасти Komatsu PC490LC-11 ЦИЛИНДР СТРЕЛЫ, ПРАВ. (№8-) ЦИЛИНДР СТРЕЛЫ

|$0

707-E1-00720

Cylinder Assembly

1

721-13-16440

Cylinder

2

721-58-11070

Rod, Piston

3

707-76-10290

Bushing

4

07145-00100

Seal, Dust, (Kit : K02)

5

07020-00000

Fitting, Grease

6

07043-00108

Plug, Taper

7

707-76-11220

Bushing

8

07145-00110

Seal, Dust, (Kit : K02)

9

707-71-35190

Collar

10

707-35-31510

Ring, Back-up, (Kit : K02)

11

07000-B5150

O-ring, (Kit : K02)

12

707-71-61140

Plunger

13

721-27-16080

Head, Cylinder

14

707-56-11740

Seal, Dust, (Kit : K02)

15

07179-13126

Ring, Snap

16

707-52-90851

Bushing

17

707-51-11860

Packing, Rod, (Kit : K02)

18

707-51-11650

Ring, Buffer, (Kit : K02)

19

707-35-31510

Ring, Back-up, (Kit : K02)

20

07000-B5150

O-ring, (Kit : K02)

21

01010-82085

Bolt

22

707-88-75310

Washer

23

707-75-11040

Ring, Snap

24

707-36-16580

Piston

25

707-44-16150

Ring, Piston, (Kit : K02)

26

707-39-16120

Ring, Wear, (Kit : K02)

27

707-44-16910

Ring

28

07000-B5100

O-ring, (Kit : K02)

29

707-35-31000

Ring, Back-up, (Kit : K02)

30

01310-01216

Screw

31

707-86-00440

Tube

32

707-86-00940

Tube

33

707-87-14700

Plug

34

07002-63034

O-ring, (Kit : K02)

35

07372-21060

Bolt

36

01643-51032

Washer

37

07000-B3035

O-ring, (Kit : K02)

38

707-88-25380

Bracket

39

707-88-21660

Band

40

07372-21240

Bolt

41

01643-51232

Washer

42

07283-33442

Clip, Pipe

43

01643-31032

Washer

44

01597-01009

Nut

45

01010-81025

Bolt

46

01643-31032

Washer

47

707-88-33040

Cap

48

07371-31049

Flange, Split

49

07372-21035

Bolt

50

01643-51032

Washer
