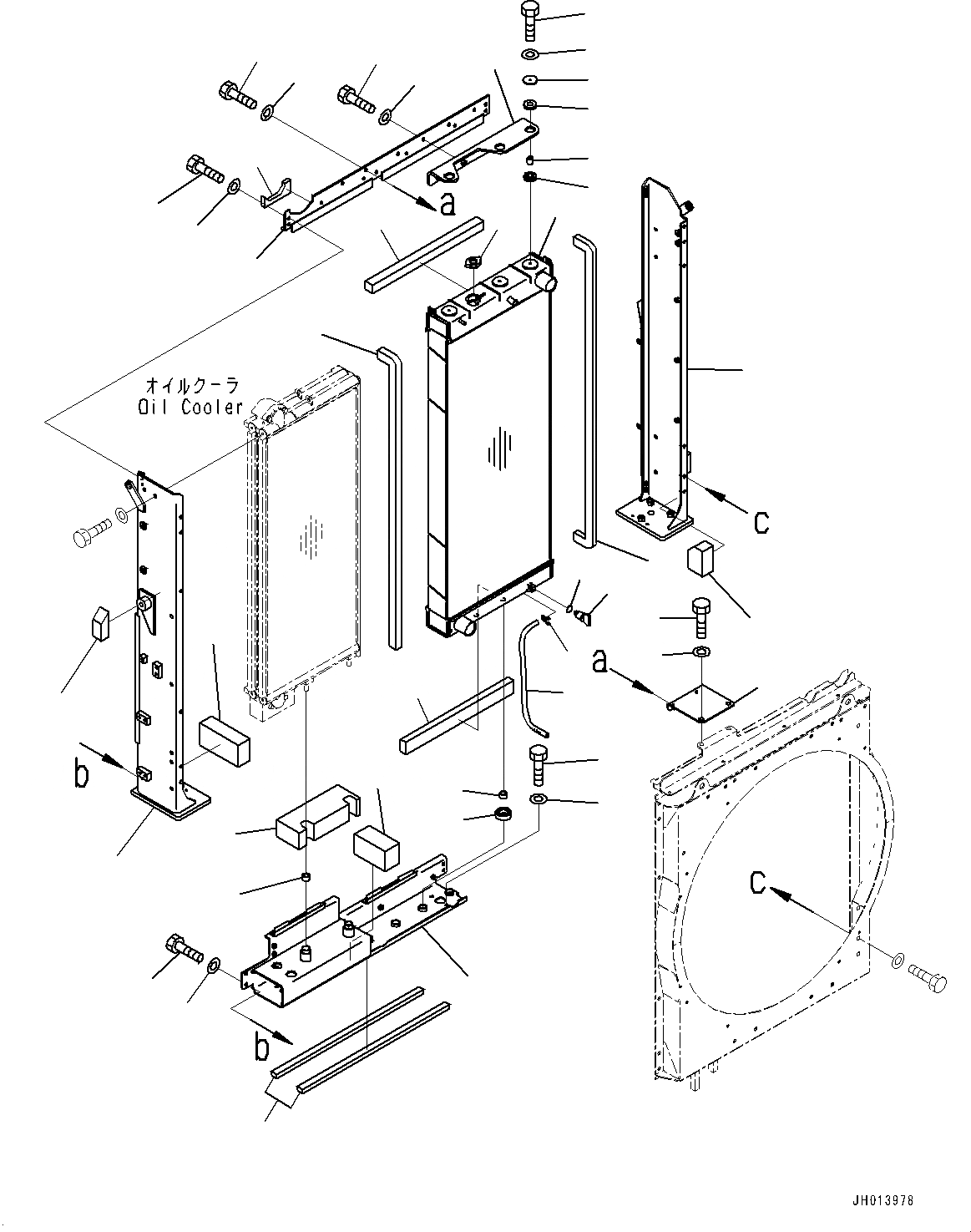

Запчасти Komatsu PC490LC-11 СИСТЕМА ОХЛАЖДЕНИЯ, РАДИАТОР (№8-) СИСТЕМА ОХЛАЖДЕНИЯ

1

208-03-21110

Radiator Assembly

2

20Y-03-22110

Cap

3

205-03-71230

Hose

4

20Y-03-11330

Clip

5

208-03-22410

Plug

6

07000-11007

O-ring

7

208-03-41991

Seal

8

208-03-42120

Seal

9

208-03-42110

Seal

10

208-03-22260

Bracket

11

01010-81235

Bolt

12

01643-31232

Washer

13

14X-03-51621

Cushion

14

14X-03-51640

Spacer

15

14X-03-51770

Washer

16

01010-81045

Bolt

17

01643-31032

Washer

18

208-03-21181

Frame

19

208-03-21191

Frame

20

208-03-21210

Bracket

21

01010-81225

Bolt

22

01643-31232

Washer

23

208-03-41220

Frame

24

01010-81025

Bolt

25

01643-31032

Washer

26

01010-D1020

Bolt

27

01643-71032

Washer

28

22B-03-12590

Cushion

29

208-03-71380

Cushion

30

208-03-42131

Seal

31

208-03-42140

Seal

32

208-03-42170

Seal

33

208-03-42150

Seal

34

208-03-42180

Seal

35

208-03-42161

Seal

36

208-03-41980

Seal

37

208-03-22280

Seal

38

208-03-41330

Bracket

39

01010-81225

Bolt

40

01643-31232

Washer

41

01010-81235

Bolt

42

01643-31232

Washer
