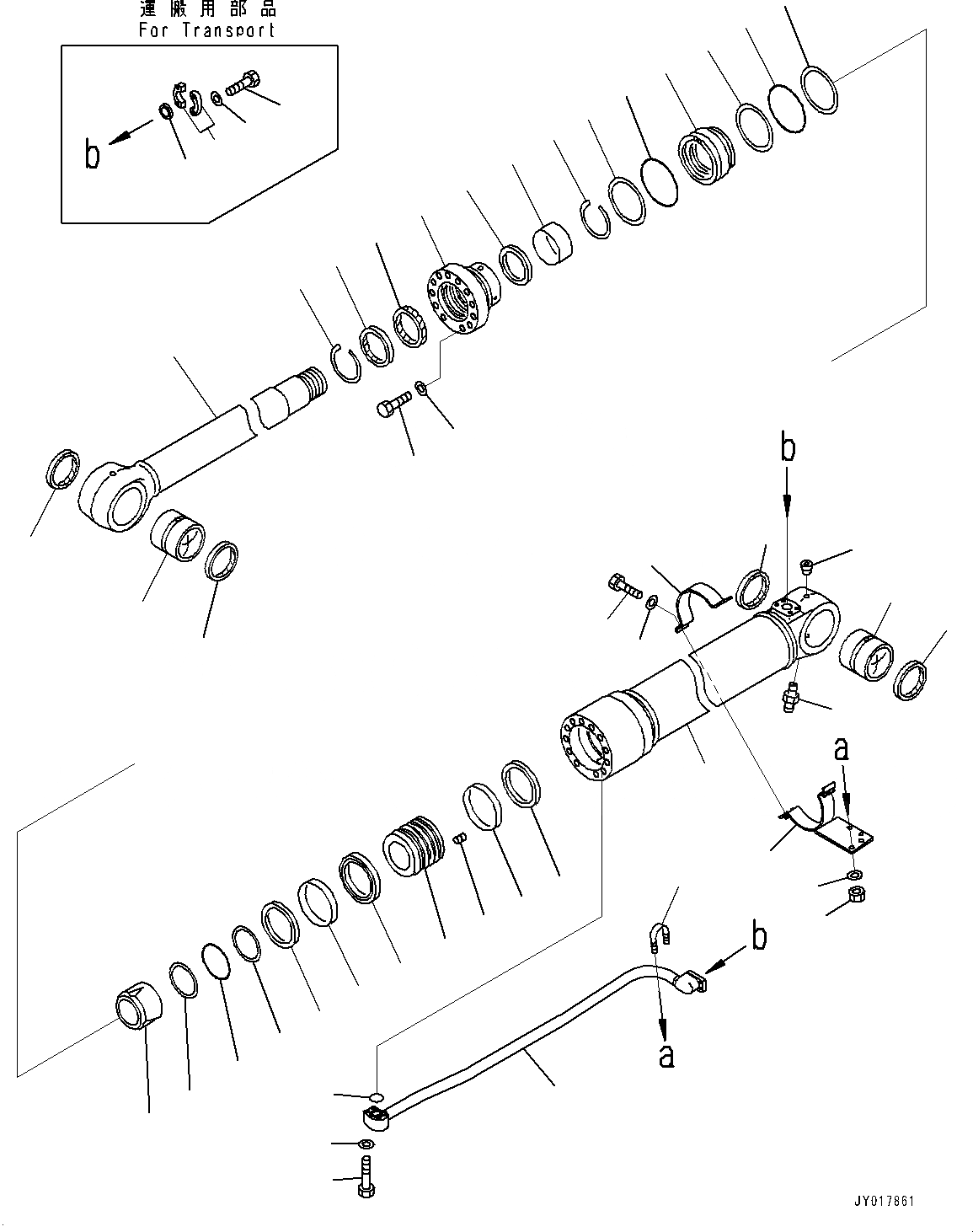

Запчасти Komatsu PC490LC-10 ЦИЛИНДР СТРЕЛЫ, С ANTI-DROP КЛАПАН, СТРЕЛА И РУКОЯТЬ, ВНУТР. ЧАСТИ, RHS ЦИЛИНДР СТРЕЛЫ, С ANTI-DROP КЛАПАН, СТРЕЛА И РУКОЯТЬ

|$0

707-E1-00720

Cylinder Assembly

1

721-13-16440

Cylinder

2

721-58-11070

Rod

3

707-76-10290

Bushing

4

07145-00100

Seal, Dust, (Kit : K04)

5

07020-00000

Fitting, Grease

6

07043-00108

Plug, Taper

7

707-76-11220

Bushing

8

07145-00110

Seal, Dust, (Kit : K04)

9

707-71-35190

Collar

10

707-35-31510

Ring, Back-Up, (Kit : K04)

11

07000-B5150

O-Ring, (Kit : K04)

12

707-71-61140

Plunger

13

707-27-16580

Head

14

707-56-11740

Seal, Dust, (Kit : K04)

15

07179-13126

Ring, Snap

16

707-52-90851

Bushing

17

707-51-11030

Packing, Rod, (Kit : K04)

18

707-51-11650

Ring, Buffer, (Kit : K04)

19

707-35-31510

Ring, Back-Up

20

07000-B5150

O-Ring, (Kit : K04)

21

01010-82085

Bolt

22

707-88-75310

Washer

23

707-75-11040

Ring, Snap

24

707-36-16580

Piston

25

707-44-16150

Ring, Piston, (Kit : K04)

26

707-39-16120

Ring, Wear, (Kit : K04)

27

707-44-16910

Ring

28

07000-B5100

O-Ring, (Kit : K04)

29

707-35-31000

Ring, Back-Up, (Kit : K04)

30

01310-01216

Screw

31

707-86-00440

Tube

32

07372-21060

Bolt

33

01643-51032

Washer

34

07000-13035

O-Ring, (Kit : K04)

35

707-88-25380

Bracket

36

707-88-21660

Band

37

07372-21240

Bolt

38

01643-51232

Washer

39

07283-33442

Clip, Pipe

40

01643-31032

Washer

41

01597-01009

Nut

42

707-88-33040

Cap

43

07371-31049

Flange, Split

44

07372-21035

Bolt

45

01643-51032

Washer

K04

707-99-72061

Seal Kit, Hydraulic Cylinder
