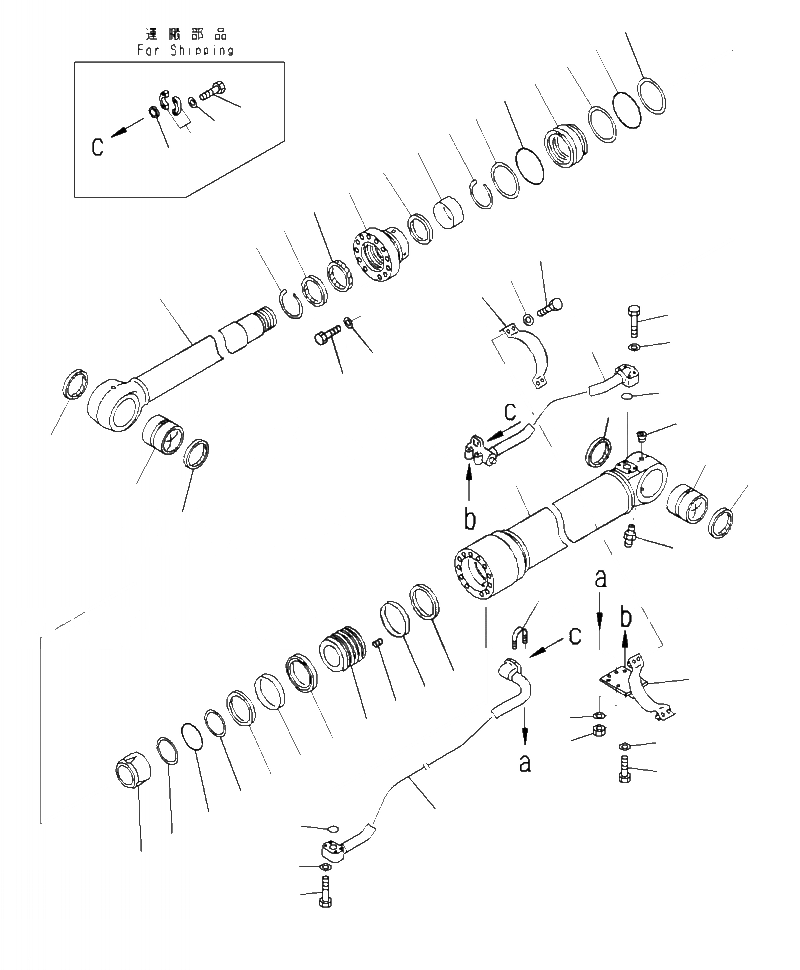

Запчасти Komatsu PC490LC-10 T- ЛЕВ. ЦИЛИНДР СТРЕЛЫ РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

707-E1-00720

CYLINDER

1

721-13-16440

CYLINDER

2

721-58-11070

ROD, PUSHING

3

707-76-10290

BUSHING

4

07145-00100

SEAL, DUST

5

07020-00000

FITTING, GREASE

6

07043-00108

PLUG, TAPER

7

707-76-11220

BUSHING

8

07145-00110

SEAL, DUST

9

707-71-35190

COLLAR

10

707-35-31510

RING, BACK-UP

11

07000-B5150

O-RING

12

707-71-61140

PLUNGER

13

707-27-16580

HEAD

14

707-56-11740

SEAL, DUST

15

07179-13126

RING, SNAP

16

707-52-90851

BUSHING

17

707-51-11030

PACKING, ROD

18

707-51-11650

RING, BUFFER

19

707-35-31510

RING, BACK-UP

20

07000-B5150

O-RING

21

01010-82085

BOLT

22

707-88-75310

WASHER

23

707-75-11040

RING, SNAP

24

707-36-16580

PISTON

25

707-44-16150

RING, PISTON

26

707-39-16120

RING, WEAR

27

707-44-16910

RING

28

07000-B5100

O-RING

29

707-35-31000

RING, BACK-UP

30

01310-01216

SCREW

31

707-86-00430

TUBE

32

208-63-53181

TUBE

33

07372-21060

BOLT

34

01643-51032

WASHER

35

07000-13035

O-RING

36

707-88-25370

BRACKET

37

707-88-21660

BAND

38

07372-21240

BOLT

39

01643-51232

WASHER

40

07283-33442

CLIP, PIPE

41

01643-31032

WASHER

42

01597-01009

NUT

43

07372-21030

BOLT

44

01643-51032

WASHER

45

707-88-33040

CAP

46

07371-31049

FLANGE, SPLIT

47

07372-21035

BOLT

48

01643-51032

WASHER

|$49

707-99-72060

SEAL KIT, HYDRAULIC CYLINDER
