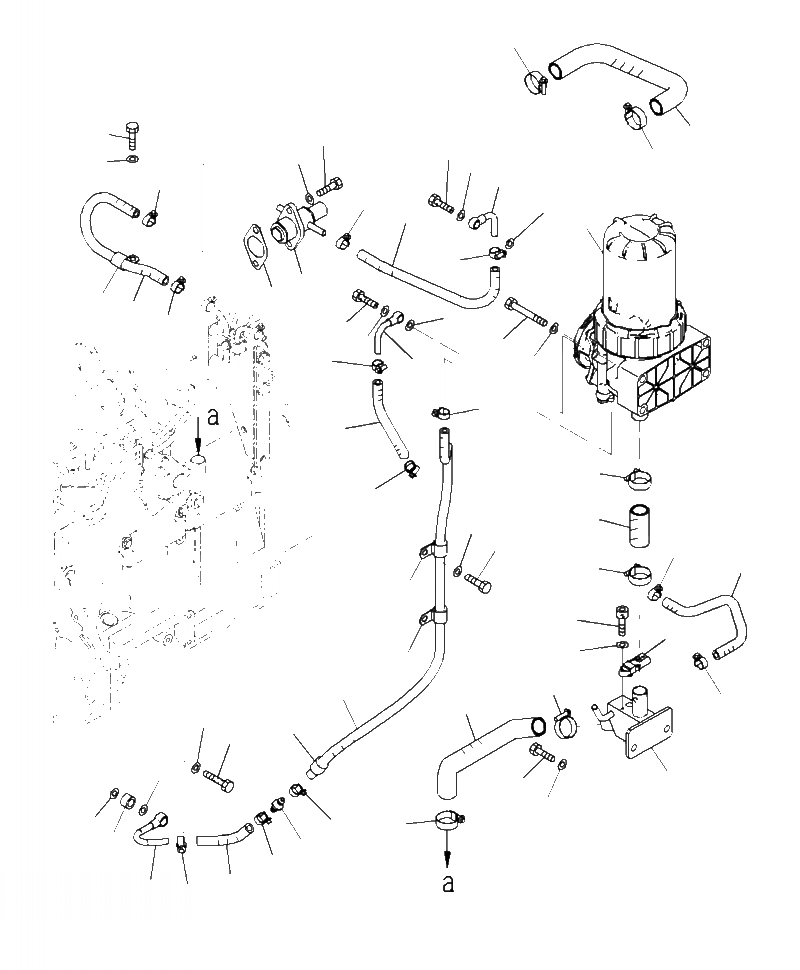

Запчасти Komatsu PC490LC-10 B9999-A KOMATSU ЗАКРЫТ.D CRANKКОРПУС ВЕНТИЛЯТОРILATION (KCCV) ДВИГАТЕЛЬ

1

600-332-1410

VENTILATOR

|$1

600-331-1900

ELEMENT KIT

2

01010-81070

BOLT

3

01643-31032

WASHER

4

6751-81-5190

JOINT

5

07206-30812

BOLT, JOINT

6

07005-01212

SEAL, WASHER

7

6252-21-7710

TUBE

8

01010-81030

BOLT

9

01643-31032

WASHER

10

6252-11-2900

SENSOR, PRESSURE

11

600-331-1930

BOLT

12

01640-20508

WASHER

13

6252-21-7630

HOSE

14

07281-00359

CLAMP, HOSE

15

6252-21-7670

HOSE

16

07281-00359

CLAMP, HOSE

17

6252-21-7180

HOSE

18

07281-00359

CLAMP, HOSE

19

6252-21-7470

JOINT

20

6151-51-8490

SPACER

21

07005-01412

GASKET

22

7700-45-1710

BOLT, JOINT

23

6252-21-7660

HOSE

24

6261-51-2810

VALVE, CHECK

25

07281-00197

CLAMP

26

6252-21-7640

HOSE

27

07281-00197

CLAMP

28

600-051-2160

CLIP

29

01010-81025

BOLT

30

01643-31032

WASHER

31

6252-21-7730

HOSE

32

07281-00197

CLAMP

33

6252-21-7720

HOSE

34

07281-00197

CLAMP

35

6252-21-7280

CONNECTOR

36

6252-21-7290

GASKET

37

01010-81030

BOLT

38

01643-31032

WASHER

39

6252-21-7510

HOSE

40

07281-00197

CLAMP

41

6252-21-7520

HOSE

42

07281-00197

CLAMP

43

600-051-2160

CLIP

44

01010-81020

BOLT

45

01643-31032

WASHER
