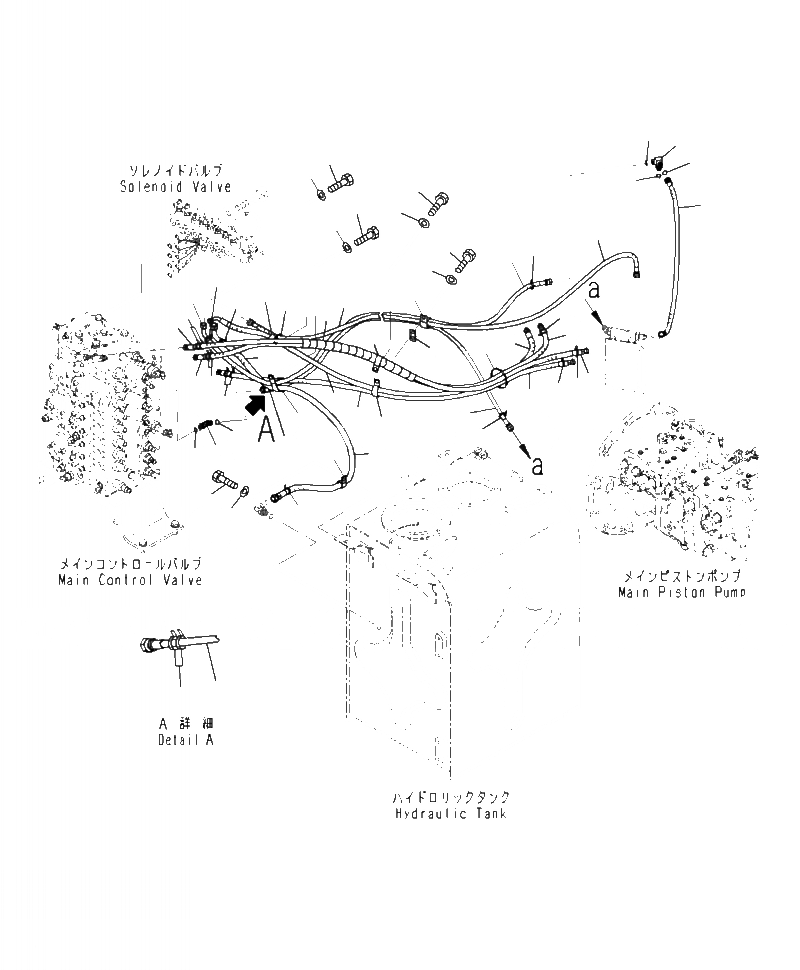

Запчасти Komatsu PC490LC-10 H8- LS ТРУБЫ С -ДОПОЛН. АКТУАТОР ТРУБЫ ГИДРАВЛИКА

1

208-62-41422

HOSE ASSEMBLY

2

208-62-43481

HOSE

3

208-62-43471

HOSE

4

20Y-62-22790

BAND, RED

5

20Y-62-22850

BAND, GREEN

6

04435-51812

CLIP

7

01010-81230

BOLT

8

01643-31232

WASHER

9

208-62-41382

HOSE

10

04434-51812

CLIP

11

01010-81225

BOLT

12

01643-31232

WASHER

13

208-62-41412

HOSE

14

208-62-41432

HOSE

15

20Y-62-22810

BAND, YELLOW

16

208-62-41372

HOSE

17

20Y-62-22830

BAND, WHITE

18

208-62-41282

HOSE

19

20Y-62-22820

BAND, BLUE

20

04434-52312

CLIP

21

01010-81225

BOLT

22

01643-31232

WASHER

23

208-62-41390

HOSE

24

20Y-62-22840

BAND, BLACK

25

02760-003A7

HOSE, FACE SEAL TYPE

26

20Y-62-17930

CLIP

27

01010-81225

BOLT

28

01643-31232

WASHER

29

21W-62-45140

ELBOW

30

02896-11009

O-RING

31

07002-11423

O-RING

32

02782-10311

ELBOW

33

02896-11009

O-RING

34

07002-11423

O-RING

35

04435-51812

CLIP

36

113-899-7950

CLIP

37

20Y-62-13450

PLATE

38

01010-81235

BOLT

39

01643-31232

WASHER

40

08034-20536

BAND
