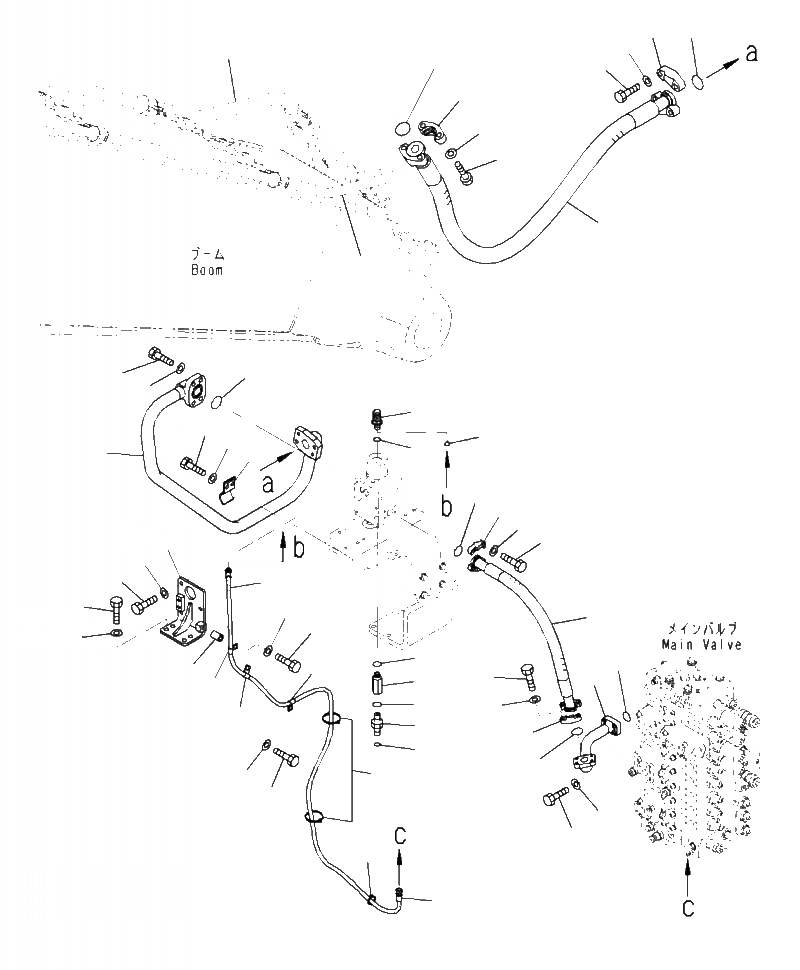

Запчасти Komatsu PC490LC-10 H7- НАВЕСН. ОБОРУД ТРУБЫ ОСНОВН. ЛИНИЯ, R.H ГИДРАВЛИКА

1

11Y-62-12160

ELBOW

2

02896-11008

O-RING

3

07002-11423

O-RING

4

201-973-7540

JOINT

5

07002-12034

O-RING

6

20Y-62-43460

NIPPLE

7

07002-12034

O-RING

8

02896-11008

O-RING

9

2A5-62-12760

BRACKET

10

01010-81230

BOLT

11

01643-31232

WASHER

12

01010-81030

BOLT

13

01643-31032

WASHER

14

208-62-42490

TUBE

15

07000-13048

O-RING

16

01010-81450

BOLT

17

01643-31445

WASHER

18

207-970-7310

CLAMP

19

01010-81235

BOLT

20

01643-31232

WASHER

21

208-62-42520

TUBE

22

07000-13035

O-RING

23

07372-21040

BOLT

24

01643-51032

WASHER

25

208-62-42510

HOSE

26

07000-13032

O-RING

27

07371-31049

FLANGE, SPLIT

28

07372-21035

BOLT

29

01643-51032

WASHER

30

208-62-43362

HOSE

31

07000-13048

O-RING

32

07371-51470

FLANGE, SPLIT

33

01010-81455

BOLT

34

01643-31445

WASHER

35

02740-00222

HOSE

36

20Y-03-11220

COLLAR

37

04434-51012

CLIP

38

01010-81225

BOLT

39

01643-31232

WASHER

40

01010-81260

BOLT

41

01643-31232

WASHER

42

08034-20536

BAND

43

08034-20519

BAND

44

208-62-47170

TUBE

45

208-62-47160

TUBE
