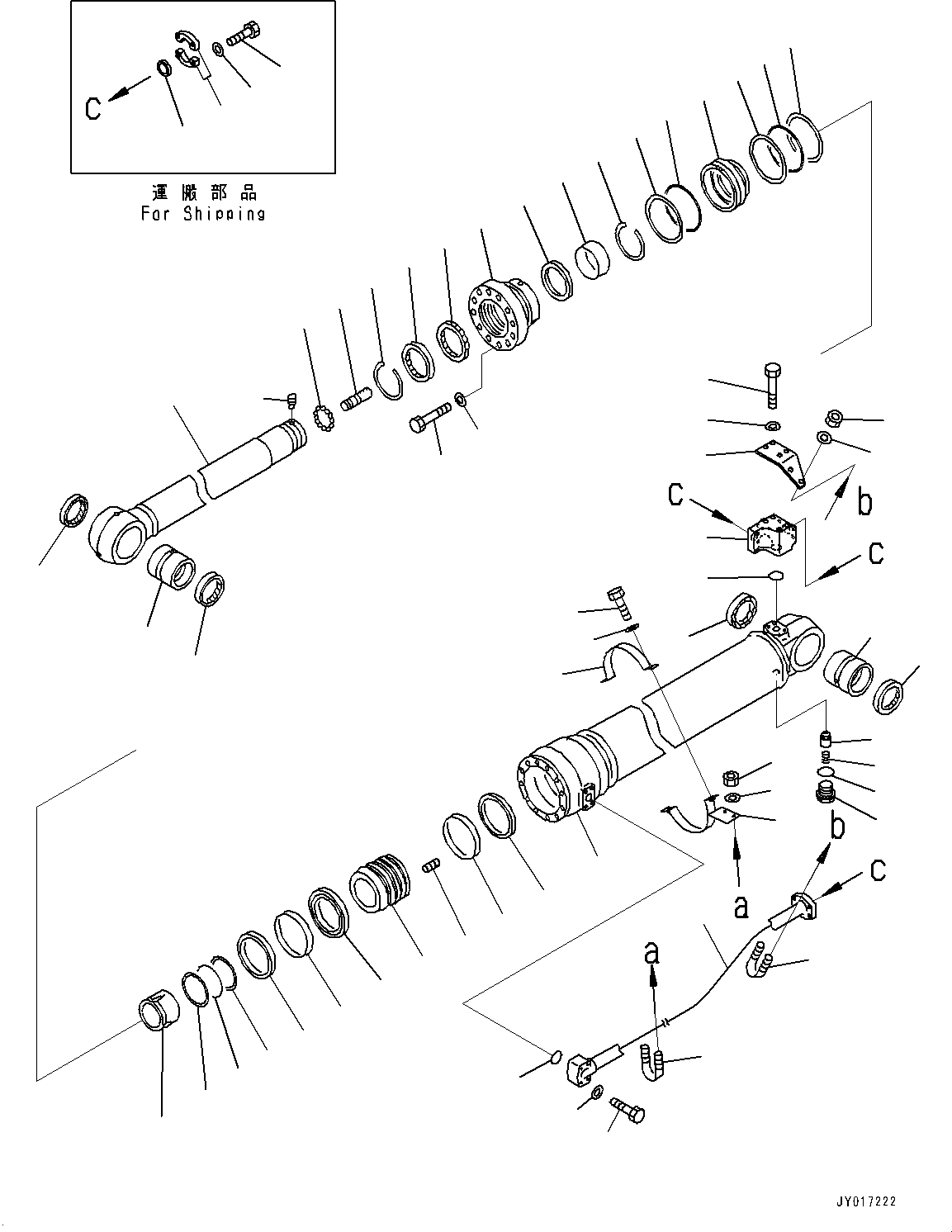

Запчасти Komatsu PC490LC-10 ЦИЛИНДР РУКОЯТИ, ВНУТР. ЧАСТИ (№8-) ЦИЛИНДР РУКОЯТИ

|$0

707-E1-00740

Cylinder Assembly

1

721-13-18280

Cylinder

2

707-58-12850

Rod, Piston

3

707-76-11220

Bushing

4

07145-00110

Seal, Dust, (Kit : K03)

5

707-76-11220

Bushing

6

07145-00110

Seal, Dust, (Kit : K03)

7

707-71-35200

Collar

8

707-35-31760

Ring, Back-up, (Kit : K03)

9

07000-B5175

O-ring, (Kit : K03)

10

707-71-61330

Plunger

11

707-71-70380

Plunger

12

04260-00952

Ball

13

707-71-91230

Cap

14

707-27-18A70

Head, Cylinder

15

707-56-12740

Seal, Dust, (Kit : K03)

16

07179-13136

Ring, Snap

17

707-51-12860

Packing, Rod, (Kit : K03)

18

707-51-12650

Ring, Buffer, (Kit : K03)

19

707-52-90981

Bushing

20

07000-B5175

O-ring, (Kit : K03)

21

707-35-31760

Ring, Back-up, (Kit : K03)

22

07179-13126

Ring, Snap

23

01011-82400

Bolt

24

707-88-75410

Washer

25

707-36-18520

Piston

26

707-44-18250

Ring, Piston, (Kit : K03)

27

707-39-18510

Ring, Wear, (Kit : K03)

28

707-44-18920

Ring

29

07000-B5110

O-ring, (Kit : K03)

30

707-35-31100

Ring, Back-up, (Kit : K03)

31

01310-01225

Screw

32

707-83-13010

Valve

33

07750-01628

Spring

34

707-87-14070

Plug

35

07002-12034

O-ring, (Kit : K03)

36

707-86-00880

Tube

37

707-87-14960

Elbow

38

07372-21060

Bolt

39

01643-51032

Washer

40

01011-81005

Bolt

41

07000-13035

O-ring, (Kit : K03)

42

707-88-25450

Bracket

43

707-88-21880

Band

44

07372-21240

Bolt

45

01643-51232

Washer

46

07283-33442

Clip, Pipe

47

01597-01009

Nut

48

01643-31032

Washer

49

707-88-02960

Plate

50

707-88-33040

Cap

51

07371-31049

Flange, Split

52

07372-21035

Bolt

53

01643-51032

Washer

54

01643-51032

Washer
