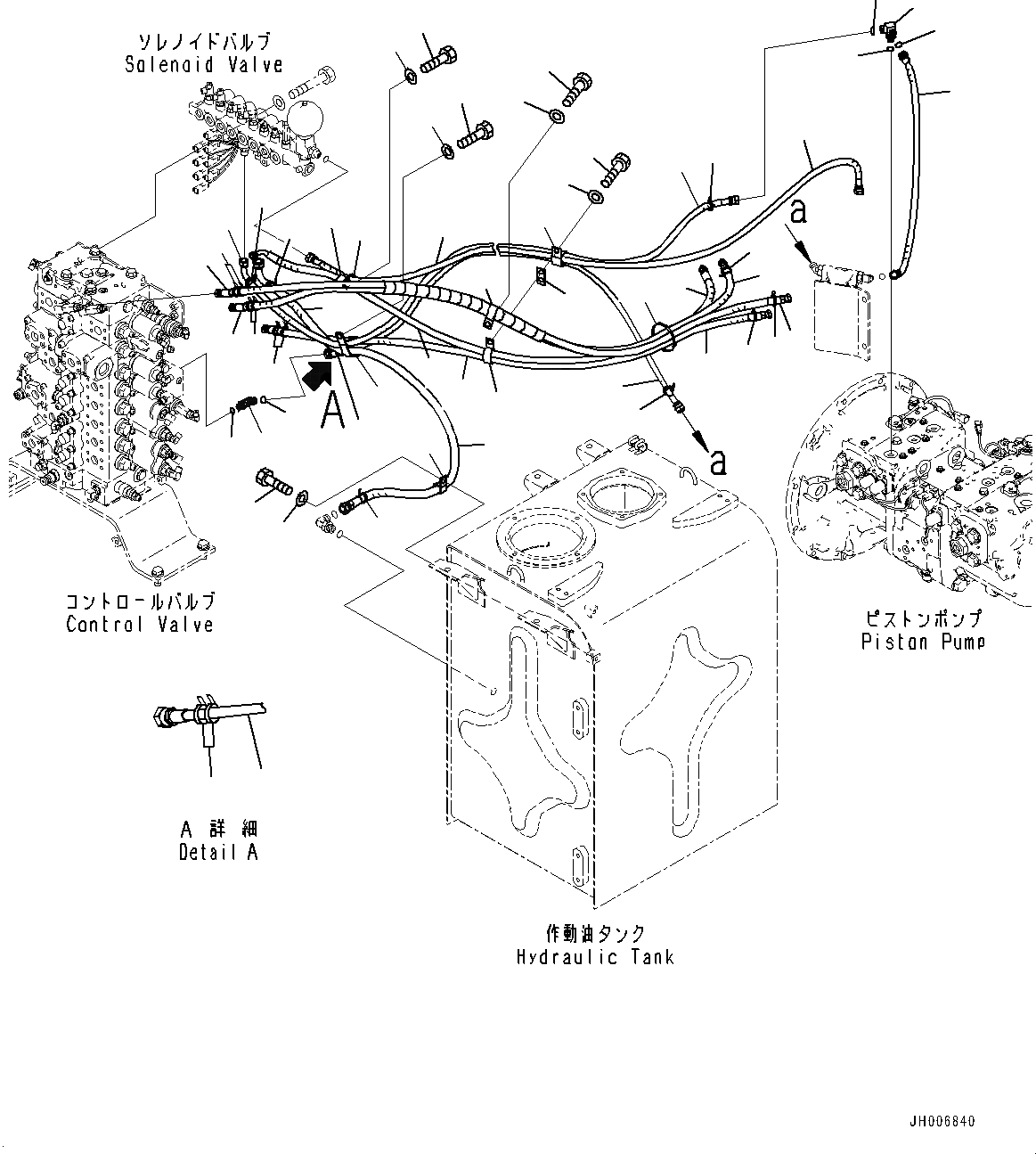

Запчасти Komatsu PC490LC-10 LS ТРУБЫ (№8-) LS ТРУБЫ, С -ДОПОЛН. АКТУАТОР ТРУБЫ, АККУМУЛЯТОР

1

208-62-43481

Hose

2

208-62-43471

Hose

3

20Y-62-22790

Band, Red

4

20Y-62-22850

Band, Green

5

04435-51812

Clip

6

01010-81230

Bolt

7

01643-31232

Washer

8

208-62-41382

Hose

9

04434-51812

Clip

10

01010-81225

Bolt

11

01643-31232

Washer

12

208-62-41412

Hose

13

208-62-41432

Hose

14

20Y-62-22810

Band, Yellow

15

208-62-41372

Hose

16

20Y-62-22830

Band, White

17

208-62-41282

Hose

18

20Y-62-22820

Band, Blue

19

04434-52312

Clip

20

01010-81225

Bolt

21

01643-31232

Washer

22

208-62-41390

Hose

23

20Y-62-22840

Band, Black

24

02760-003A7

Hose, Face Seal Type

25

20Y-62-17930

Clip

26

01010-81225

Bolt

27

01643-31232

Washer

28

21W-62-45140

Elbow

29

02896-11009

O-ring

30

07002-11423

O-ring

31

02782-10311

Elbow

32

02896-11009

O-ring

33

07002-11423

O-ring

34

04435-51812

Clip

35

113-899-7950

Clip

36

20Y-62-13450

Plate

37

01010-81235

Bolt

38

01643-31232

Washer

39

08034-20536

Band
