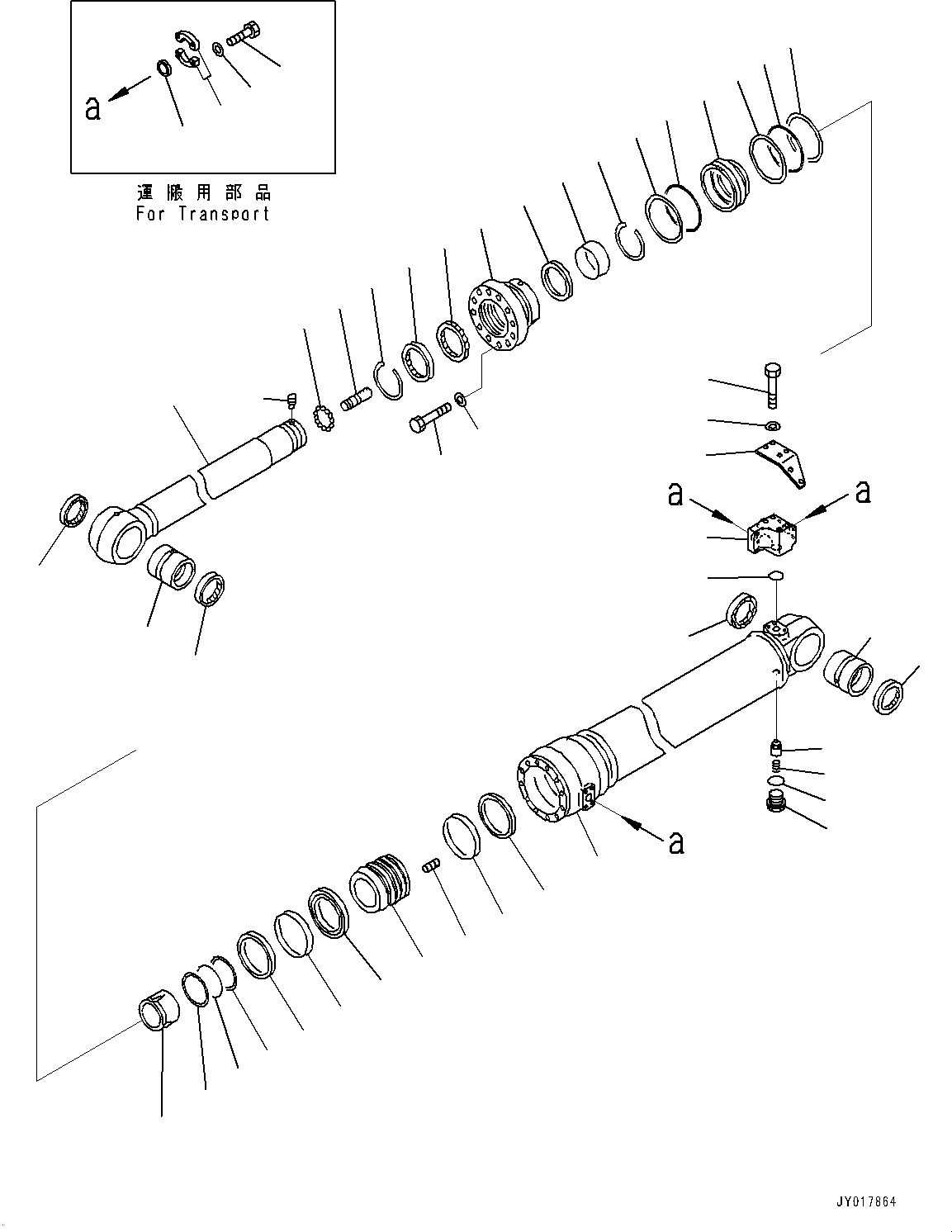

Запчасти Komatsu PC490-10 ЦИЛИНДР РУКОЯТИ, С ANTI-DROP КЛАПАН, СТРЕЛА И РУКОЯТЬ, ВНУТР. ЧАСТИ ЦИЛИНДР РУКОЯТИ, С ANTI-DROP КЛАПАН, СТРЕЛА И РУКОЯТЬ

|$0

707-E1-00740

Cylinder Assembly

1

721-13-18280

Cylinder

2

707-58-12850

Rod, Piston

3

707-76-11220

Bushing

4

07145-00110

Seal, Dust, (Kit : K05)

5

707-76-11220

Bushing

6

07145-00110

Seal, Dust

7

707-71-35200

Collar

8

707-35-31760

Ring, Back-Up

9

07000-B5175

O-Ring

10

707-71-61330

Plunger

11

707-71-70380

Plunger

12

04260-00952

Ball

13

707-71-91230

Cap

14

707-27-18A70

Head, Cylinder

15

707-56-12740

Seal, Dust, (Kit : K05)

16

07179-13136

Ring, Snap

17

707-51-12860

Packing, Rod, (Kit : K05)

18

707-51-12650

Ring, Buffer, (Kit : K05)

19

707-52-90981

Bushing

20

07000-B5175

O-Ring, (Kit : K05)

21

707-35-31760

Ring, Back-Up, (Kit : K05)

22

07179-13126

Ring, Snap

23

01011-82400

Bolt

24

707-88-75410

Washer

25

707-36-18520

Piston

26

707-44-18250

Ring, Piston, (Kit : K05)

27

707-39-18510

Ring, Wear, (Kit : K05)

28

707-44-18920

Ring

29

07000-B5110

O-Ring, (Kit : K05)

30

707-35-31100

Ring, Back-Up, (Kit : K05)

31

01310-01225

Screw

32

707-83-13010

Valve

33

07750-01628

Spring

34

707-87-14070

Plug

35

07002-12034

O-Ring, (Kit : K05)

36

707-87-14960

Elbow

37

01011-81005

Bolt

38

07000-13035

O-Ring, (Kit : K05)

39

707-88-39950

Bracket

40

707-88-33040

Cap

41

07371-31049

Flange, Split

42

07372-21035

Bolt

43

01643-51032

Washer

44

01643-51032

Washer

K05

707-99-69590

Seal Kit, Hydraulic Cylinder
