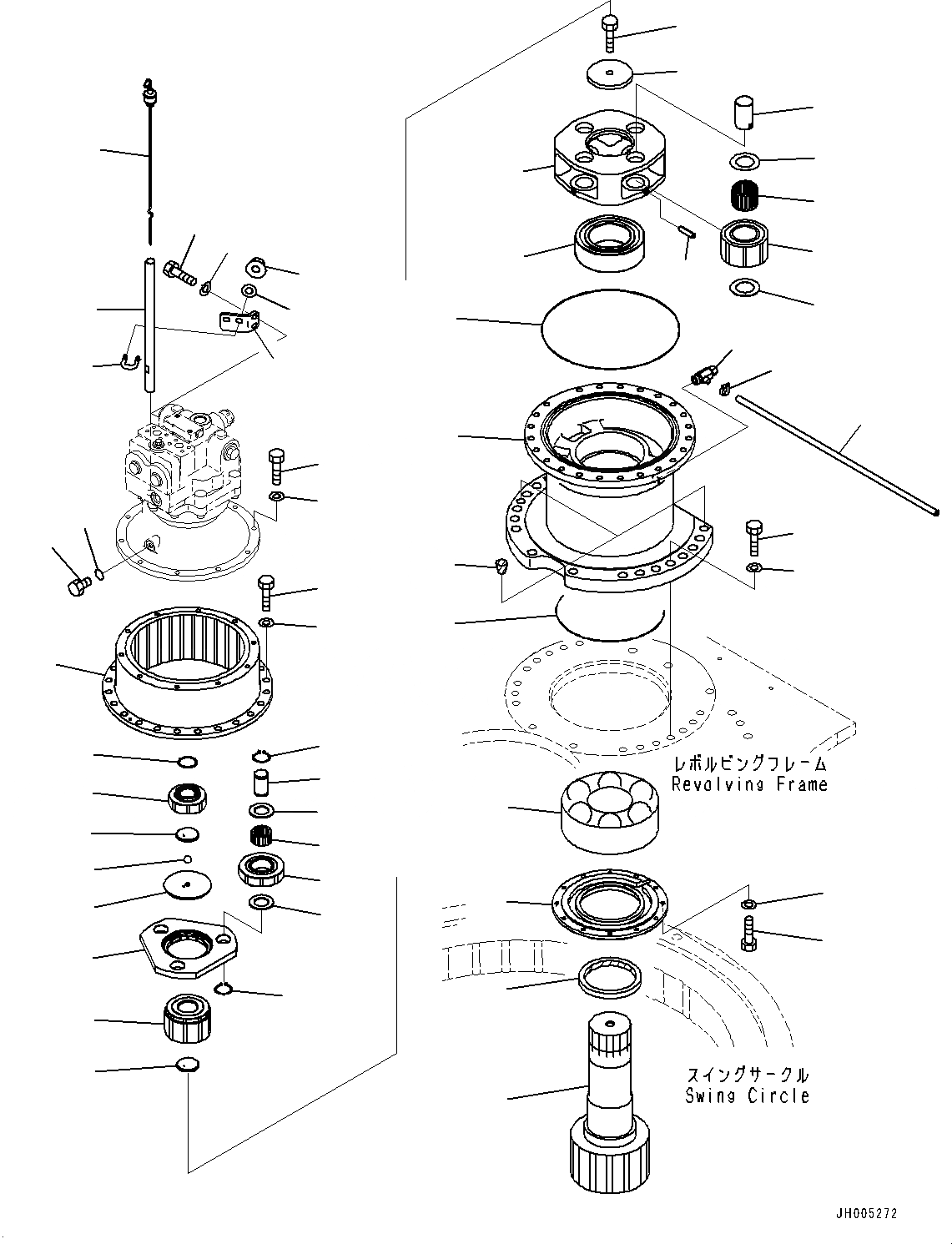

Запчасти Komatsu PC490-10 МЕХАНИЗМ ПОВОРОТА МЕХАНИЗМ ПОВОРОТА

1

207-26-71240

Ring

2

07040-11209

Plug

3

07002-11223

O-Ring

4

208-26-71190

Case

5

07049-02430

Plug

6

06000-23124

Bearing

7

06000-22326

Bearing

8

208-26-52242

Shaft

9

208-26-61290

Seal, Oil

10

208-26-71360

Cover

11

01010-81030

Bolt

12

01643-31032

Washer

13

07000-15390

O-Ring

14

208-26-71181

Carrier

15

208-26-71140

Gear

16

207-27-61230

Bearing

17

20Y-27-21250

Washer, Thrust

18

207-27-61250

Pin

19

20Y-27-21290

Pin

20

208-26-71230

Plate

21

205-32-51211

Bolt

22

208-26-71150

Gear

23

01010-81645

Bolt

24

01643-31645

Washer

25

208-26-71130

Gear

26

208-26-71241

Plate

27

208-26-71170

Carrier

28

207-26-71520

Gear

29

22U-26-21320

Bearing

30

22U-26-21240

Washer

31

207-26-71210

Pin

32

04064-04018

Ring, Snap

33

208-26-71210

Holder

34

04260-01270

Ball

35

207-26-71510

Gear

36

207-26-71261

Plate

37

144-60-11151

Valve

38

07270-21590

Tube

39

07281-00197

Clamp

40

01010-81240

Bolt

41

01643-31232

Washer

42

208-26-71510

Gauge

43

208-26-71520

Filler

44

208-871-5162

Bracket

45

01597-01009

Nut

46

01643-31032

Washer

47

07283-32738

Clip, Pipe

48

01010-81030

Bolt

49

01643-31032

Washer

50

07000-15335

O-Ring

51

01010-82480

Bolt

52

01643-32460

Washer
