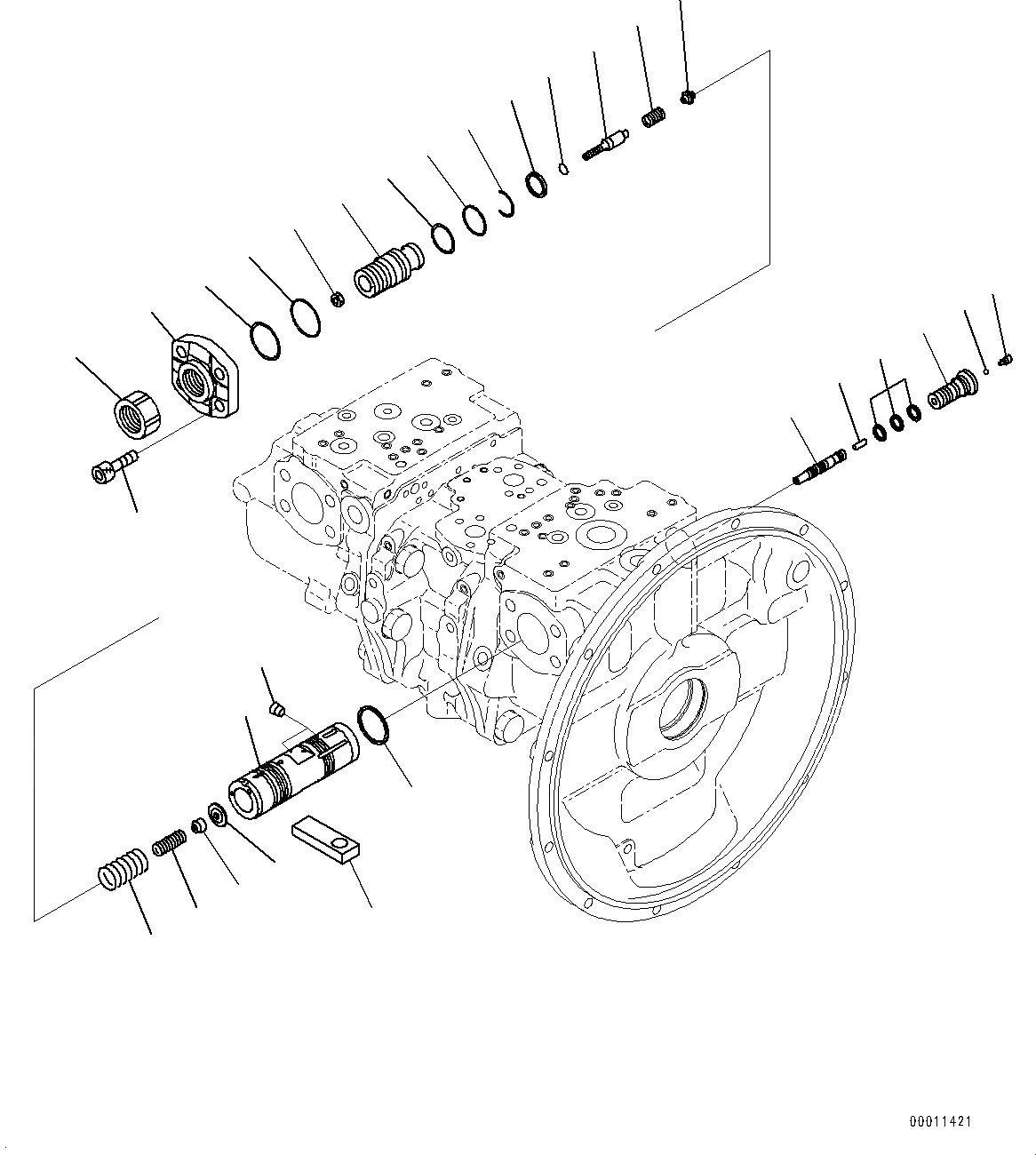

Запчасти Komatsu PC460LC-8 ДЕМПФЕР И ПОРШЕНЬ НАСОС (ВНУТР. ЧАСТИ) (/) B [КОМПОНЕНТЫ ДВИГАТЕЛЯ]

|$1

708-2H-00451

PUMP ASSEMBLY

|$2

708-2H-01451

PUMP SUBASSEMBLY

1

708-2H-34150

SLIDER

|$4

708-2H-03411

VALVE ASSEMBLY, C, PC

|$5

708-2H-03022

PISTON ASSEMBLY, SERVO, SERVO

2

PISTON, SERVO, SERVO

3

PLUG

4

SEAL

5

PLUG

6

708-2L-35760

BALL

7

708-2L-35770

PLUG

8

SEAL

9

708-2L-35170

PIN

10

708-3M-15670

SPOOL

11

708-2G-15290

RETAINER

12

708-2G-15140

SEAT

13

708-2H-15330

SPRING

14

708-2H-15320

SPRING

15

708-2G-15151

SEAT

16

708-2H-15340

SPRING

17

SCREW

18

07000-B3038

O-RING

19

708-2G-15230

RING, BACK-UP

20

SEAL

21

708-2G-15240

PLUG

22

07000-B2012

O-RING

23

07000-B2050

O-RING

24

708-2G-15310

RING, BACK-UP

25

708-2L-44161

COVER

26

01580-10806

NUT

27

708-2L-35290

NUT

28

708-2G-15330

RING, WEAR

29

01252-61645

BOLT, HEXAGON SOCKET HEAD
