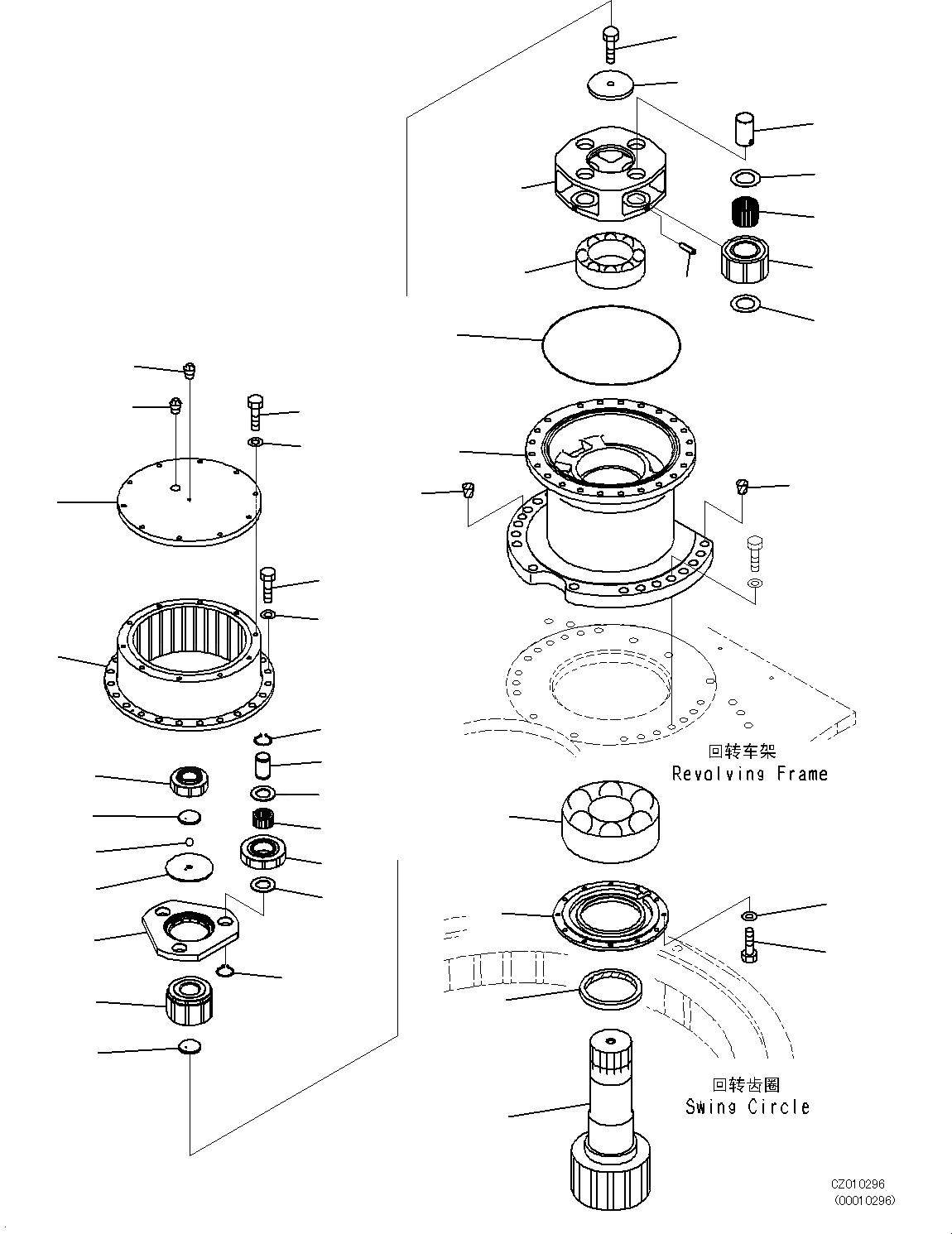

Запчасти Komatsu PC460LC-8 МЕХАНИЗМ ПОВОРОТА , ПОСТАВЛЯЕМЫЕ ЧАСТИ N [ПОВОРОТН. КРУГ И ITS КОМПОНЕНТЫ]

|$1

208-26-00211

SWING MACHINERY ASSEMBLY

1

208-26-71190

CASE

2

07049-02430

PLUG

3

208-26-71530

BEARING

4

208-26-71540

BEARING

5

208-26-52242

SHAFT

6

208-26-61290

SEAL, OIL

7

21N-26-33230

COVER

8

01010-81030

BOLT

9

01643-31032

WASHER

10

07000-15390

O-RING

11

208-26-71181

CARRIER

12

208-26-71140

GEAR

13

207-27-61390

BEARING

14

20Y-27-21250

WASHER, THRUST

15

207-27-61250

PIN

16

20Y-27-21290

PIN

17

208-26-71230

PLATE

18

205-32-51211

BOLT

19

208-26-71150

GEAR

20

01010-81645

BOLT

21

01643-31645

WASHER

22

208-26-71130

GEAR

23

208-26-71241

PLATE

24

208-26-71170

CARRIER

25

207-26-71521

GEAR

26

22U-26-21320

BEARING

27

22U-26-21240

WASHER

28

207-26-71210

PIN

29

04064-04018

RING, SNAP

30

208-26-71210

HOLDER

31

04260-01270

BALL

32

207-26-71511

GEAR

33

207-26-71261

PLATE

34

207-26-71610

COVER

35

01010-81240

BOLT

36

01643-31232

WASHER

37

07042-30617

PLUG, TAPER

38

07042-30108

PLUG
