Запчасти Komatsu PC45R-8 КАБИНА (/7) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

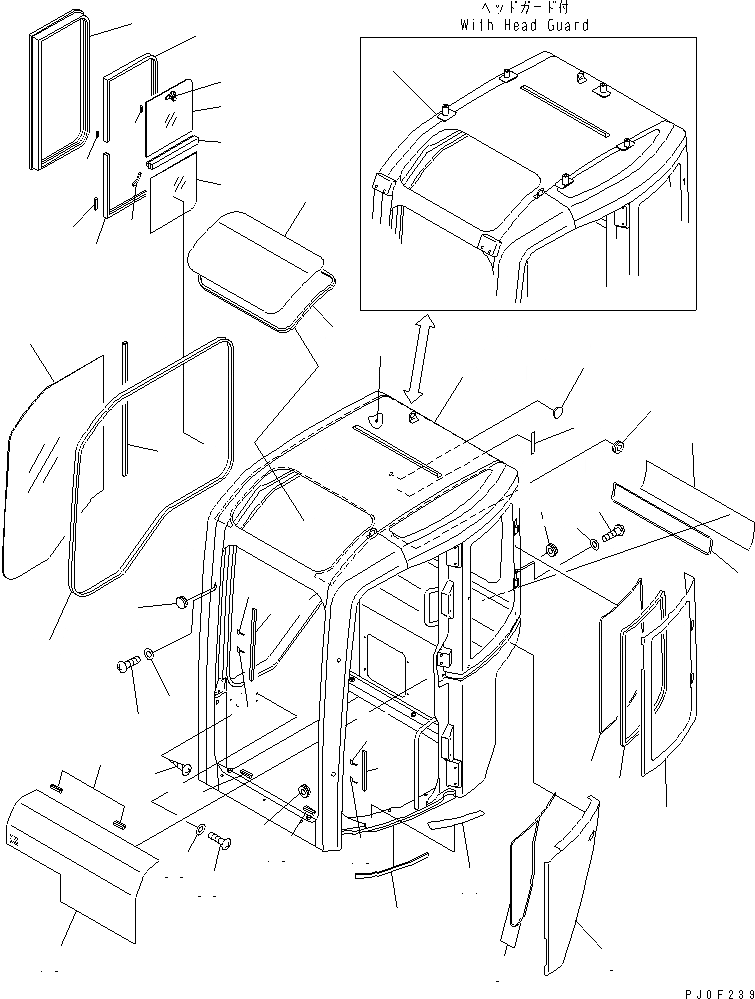

Схема запчастей Komatsu PC45R-8 - КАБИНА (/7) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
1
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
14
15
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
32
33
34
34
35
36
36
37
37
38
39
40

Артикул

Название

Примечание

Количество

|1

20T-54-00800

OPERATOR'S CAB ASS'Y

|1

20T-54-00850

OPERATOR'S CAB ASS'Y

|1

20T-54-00860

OPERATOR'S CAB ASS'Y

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-07A0.

1

CABIN

|1

CABIN,(WITH HEAD GUARD)

|1

CABIN,(TOPS)

2

20T-54-84750

WINDOW,L.H.¤ UPPER

3

20U-54-24971

DAM

4

20U-54-25151

TRIM

|4

20T-54-84980

SEAL,(FOR HEAD GUARD AND TOPS)

5

20T-54-84760

WINDOW,L.H.¤ LOWER

6

20U-54-24981

DAM

7

20T-54-84771

WINDOW,REAR

8

20U-54-24991

DAM

9

20T-54-84871

LINING

10

20T-54-84881

COVER

11

20U-54-25170

SEAL

12

20T-54-75121

DUCT

|12

20T-54-75120

DUCT,(FOR HEAD GUARD AND TOPS)

13

21W-54-14690

CLIP

|13

21W-54-14690

CLIP,(FOR HEAD GUARD AND TOPS)

14

20T-54-84830

DUCT,(FOR TOPS)

15

20U-54-24681

TAPE

16

20U-54-25140

STOPPER

17

20T-54-84960

SHEET

18

20T-54-84710

GLASS

19

20U-54-24721

STRIP,WEATHER

20

20T-54-84720

STRIP,WEATHER

|21

20T-54-84940

SASH ASS'Y

21

ACMRBFRA190900

FRAME

22

ACMRBGLA190910

GLASS,UPPER

23

ACMRBGLA190920

GLASS,LOWER

24

ACMRBLOC190930

LOCK ASS'Y

25

ACMRBRAN190940

TRIM,UPPER

26

ACMRBRAN190950

TRIM,LOWER

27

ACMRBCHA190960

CHANNEL

28

ACMRBSTP190970

STOPPER

29

ACMRBSTP190980

STOPPER

30

20T-54-84731

WINDOW,UPPER

31

20T-54-84741

STRIP,WEATHER

32

20T-54-75210

GROMMET

33

08037-01008

GROMMET

34

09415-01008

CAP

35

09415-00706

CAP

36

01220-40412

SCREW

37

01641-20405

WASHER

38

01220-40612

SCREW

39

01641-20608

WASHER

40

01370-00412

SCREW

Выбрано товаров: 50
