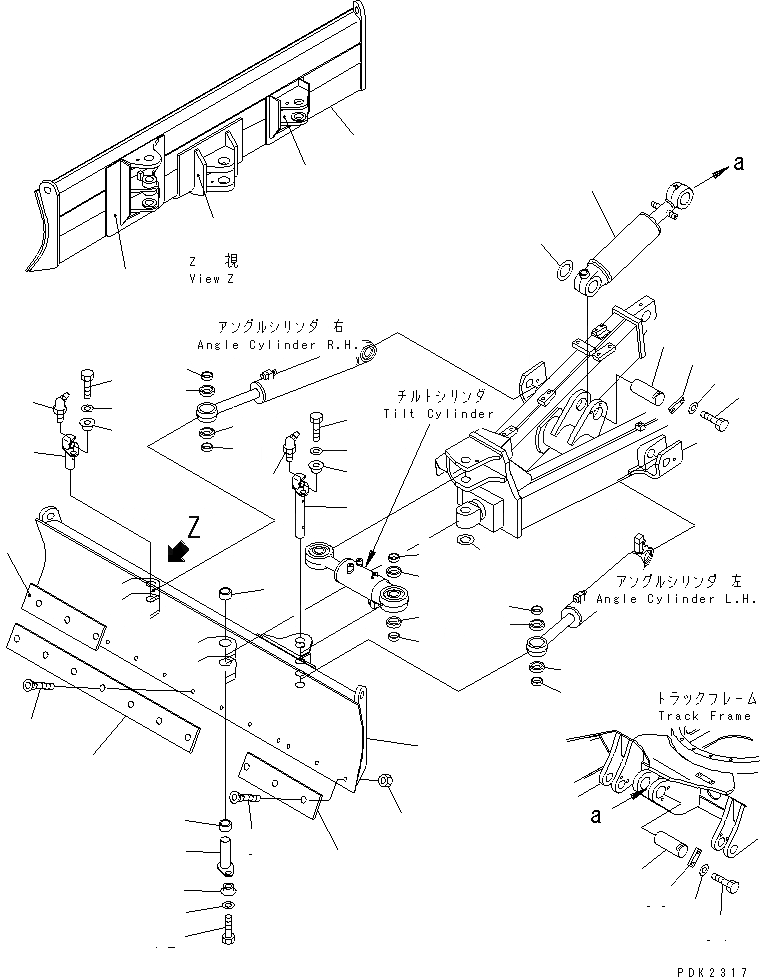

Запчасти Komatsu PC45R-8 ОТВАЛ (ДЛЯ PAT) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20T-910-0041

BLADE ASS'Y

|1

20T-910-0040

BLADE ASS'Y

1

BLADE

|1

BLADE

2

20T-910-8130

BRACKET

3

20T-910-8150

BRACKET

4

20U-910-1151

BRACKET

5

20U-910-1190

BUSHING

6

20T-910-8560

EDGE

|6

20T-71-22220

EDGE

7

20U-910-1980

EDGE

8

02090-10840

BOLT

|8

02090-10840

BOLT

9

02290-10813

NUT

|9

02290-10813

NUT

10

20U-910-1160

PIN

11

20S-70-31180

SPACER

12

01010-81230

BOLT

13

01643-31232

WASHER

14

20T-70-81720

SPACER¤ 1.0MM

|14

20R-70-11270

SPACER¤ 1.0MM

15

20T-910-8170

PIN

16

20U-910-1360

BUSHING

17

20U-910-1370

COLLAR

18

20U-910-1280

COLLAR

19

20U-910-1290

BUSHING

20

07020-00675

FITTING

21

20S-70-31180

SPACER

22

01010-81230

BOLT

23

01643-31232

WASHER

24

20T-910-8180

PIN

25

20S-70-31180

SPACER

26

01010-81230

BOLT

27

01643-31232

WASHER

28

20U-910-1360

BUSHING

29

20U-910-1370

COLLAR

30

07020-00675

FITTING

31

20T-63-02451

CYLINDER ASS'Y,BLADE

32

20T-71-71210

PIN

33

04082-00212

LOCK

34

01010-81230

BOLT

35

01643-31232

WASHER

36

20T-70-81770

SHIM¤ 1.0MM

|36

20S-71-11230

SHIM¤ 1.0MM
