Запчасти Komatsu PC45R-8 ОСНОВН. КОНСТРУКЦИЯ (УПРАВЛ-Е ПРАВ.) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

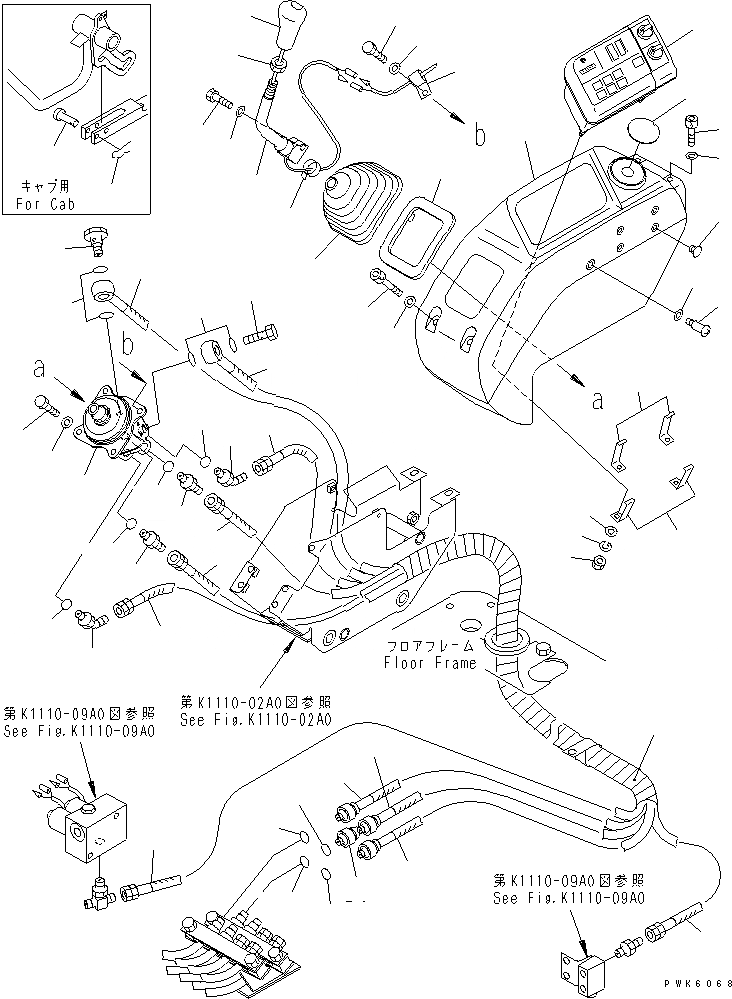

Схема запчастей Komatsu PC45R-8 - ОСНОВН. КОНСТРУКЦИЯ (УПРАВЛ-Е ПРАВ.) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
17
18
18
19
19
19
19
20
20
21
21
22
22
22A
23
23
23A
24
24
24A
25
25
25A
26
27
28
29
30
31
32
32
33
34
35
36
36
37
38
39
40
41

Артикул

Название

Примечание

Количество

1

20U-43-21320

LEVER

2

01010-81030

BOLT

3

01643-31032

WASHER

4

20T-06-71110

SWITCH, KNOB

5

20T-43-71190

NUT

6

08036-10810

CLIP

7

08034-30521

BAND

8

20T-43-71161

BOOT

8

20T-43-71160

BOOT

9

20T-43-71361

PLATE

9

20T-43-71360

PLATE

10

702-16-01181

PILOT VALVE,(SEE FIG.Y1670-11A0)

10

702-16-01180

PILOT VALVE,(SEE FIG.Y1670-11A0)

11

01010-80820

BOLT

12

01643-30823

WASHER

13

702-16-53240

PLUG,(WITHOUT 1 ATT AND PAT)

14

07000-02018

O-RING

15

203-62-57730

BOLT,(WITHOUT 1 ATT AND PAT)

16

07000-02018

O-RING

17

07230-20210

UNION

18

07236-10210

ELBOW

19

07002-01423

O-RING

20

20T-62-77771

HOSE, 1800MM

21

20T-62-83280

HOSE, 1650MM

22

20T-62-83240

HOSE, 1500MM

22A

20U-62-22190

O-RING

23

20T-62-83240

HOSE, 1500MM

23A

20U-62-22190

O-RING

24

20T-62-83240

HOSE, 1500MM

24A

20U-62-22190

O-RING

25

20T-62-83240

HOSE, 1500MM

25A

20U-62-22190

O-RING

26

203-62-32450

COVER

|$62

20T-54-71700

BOX ASS'Y,(WITHOUT ONE TOUCH DECEL)

|$63

20T-910-8590

BOX ASS'Y,(FOR 1 ATTACHMENT AND PAT)

27

20T-54-71322

BOX,(WITHOUT ONE TOUCH DECEL)

27

20T-910-8690

BOX,(FOR 1 ATTACHMENT AND PAT)

27

20T-54-71323

BOX,(FOR ONE TOUCH DECEL)

27

20T-910-8690

BOX,(FOR 1 ATT AND PAT AND DECEL)

28

20T-54-71520

PLATE,(WITHOUT ONE TOUCH DECEL)

29

20T-54-71530

PLUG,(WITHOUT ONE TOUCH DECEL)

30

20T-54-71570

BOLT

31

20T-54-71550

BOLT

32

01643-70823

WASHER

33

20T-43-71480

SCREW

34

01643-70823

WASHER

35

7824-84-3001

MONITOR ASS'Y,(CANOPY) (SEE FIG.K1110-51A0)

35

7824-84-2001

MONITOR ASS'Y,(CAB) (SEE FIG.K1110-51A1)

36

20T-06-71431

BRACKET

37

01580-10605

NUT

38

01641-20608

WASHER

39

01602-20619

WASHER,SPRING

40

04205-10835

PIN,(FOR CAB)

41

04052-10833

PIN,(FOR CAB)

Выбрано товаров: 54
